Admiral ACP Anterior Cervical Plate

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity

By Material: Titanium (Solid)

DESCRIPTION

The Admiral ACP Anterior Cervical Plating system is a thin profile ACDF plate that covers single level to 5 levels. Comes as 2.3mm thick in the one and two level plates and the remainder at 2.5mm thick. Torx screw has integrated screw blocking to prevent blackout.

Features:


  • Titanium material
  • 7 degree plate radius.
  • Comes in single level to 5 levels
  • Screws in self tapping and self drilling.
  • 25 degree conical screw angulation

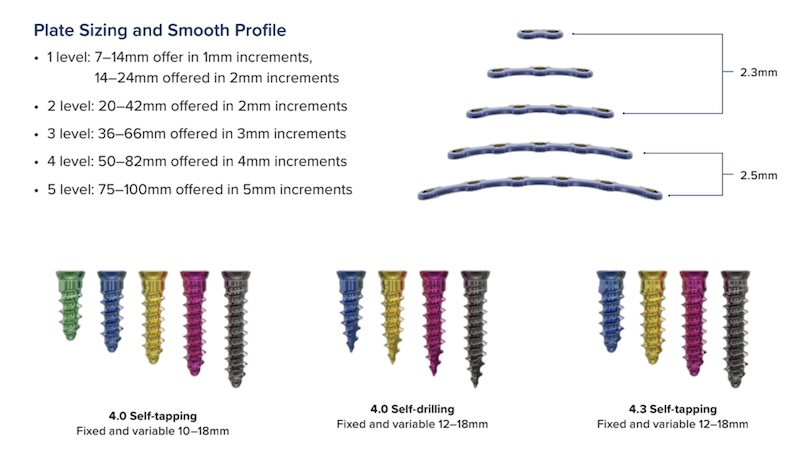

  • Plate lengths:
    • 1 level: 7-24mm in 1mm increments
    • 2 level: 20-42mm in 2mm increments
    • 3 level: 36-66mm in 3mm increments
    • 4 levels: 50-82mm in 4mm increments
    • 5 levels: 75-100mm in 5mm increments

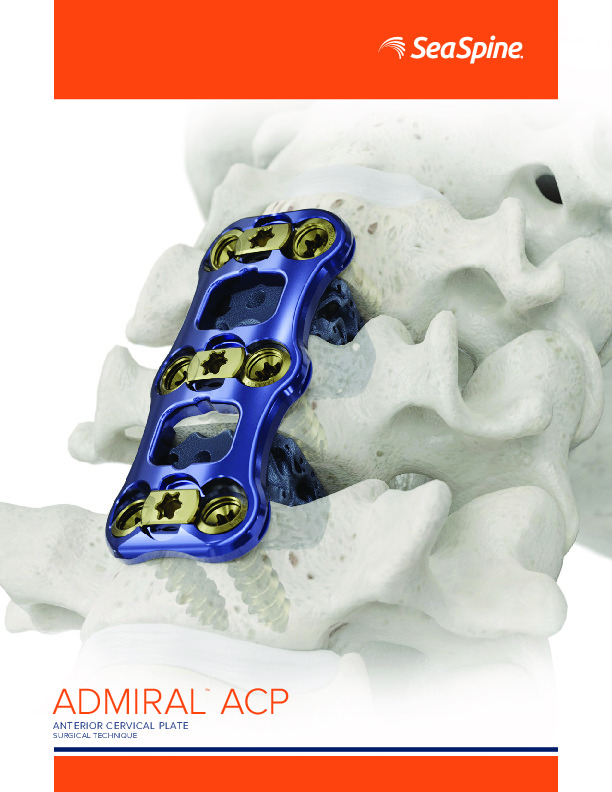

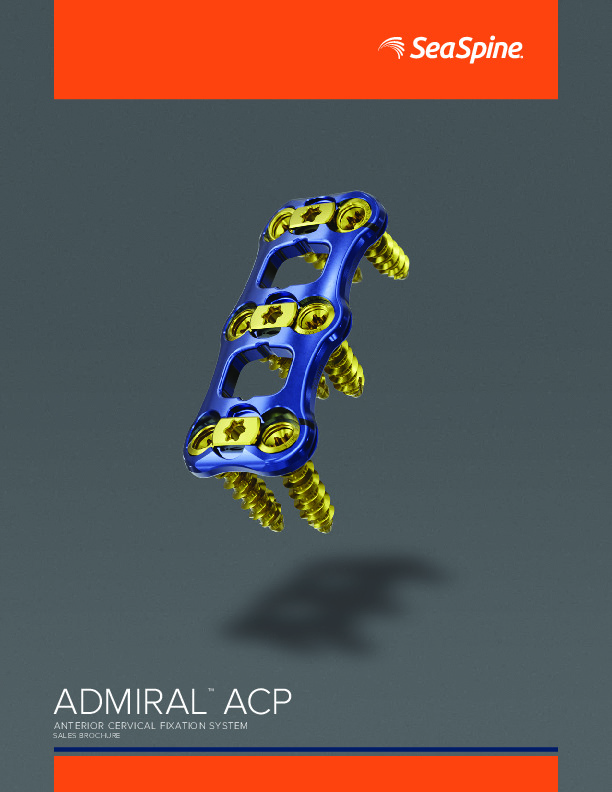

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
