Anteralign TL 3D Printed Titanium Oblique & Lateral Spacer

COMPANY: Medtronic

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage/Thoracic,Lumbar

Expansion: Static

Cage Approach: Oblique (ATP: Anterior-To-Psoas) , Lateral

Configuration: Cage Alone , Low profile plate attached

By Material: 3D Printed Titanium , Titanium (Solid) , Titanium etched

Cage Material: Titanium Solid (etched surface)

Plate Location: Thoracic/lumbar

Plate Approach: Lateral Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Lateral Lumbar , Oblique Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

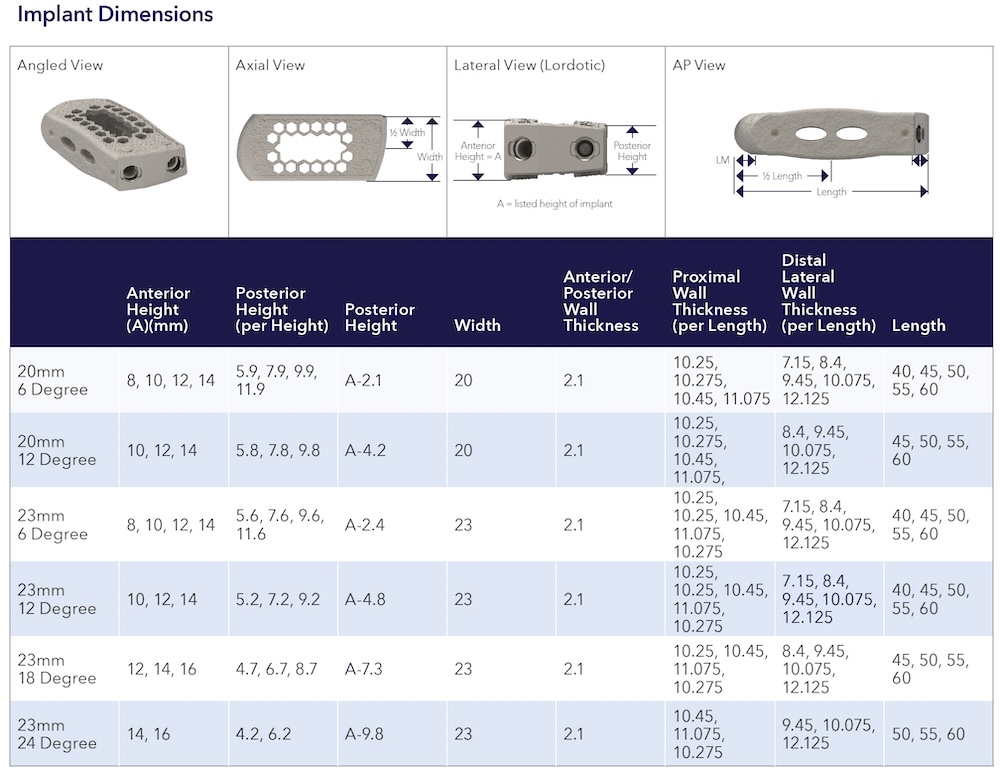

Lateral Implant Width: 18mm , 23mm

DESCRIPTION

The Anteralign TL by Medtronic is a 3D printed Titanium interbody spacer for use in the lateral thoracic and lumbar spine and the oblique approach in the lumbar spine.

Features:



  • 3D printed titanium construction with Titan NanoLOCK surface treatment etched technology for increased surface texturing.
  • May be used alone or with optional mini-plate via lateral or oblique approach
  • Width options:
    • 20mm
    • 23mm
  • Lordosis options:
    • 6, 12, 18, 24 degrees
  • Height options:
    • 8-16mm
  • Length options:
    • 40-60mm

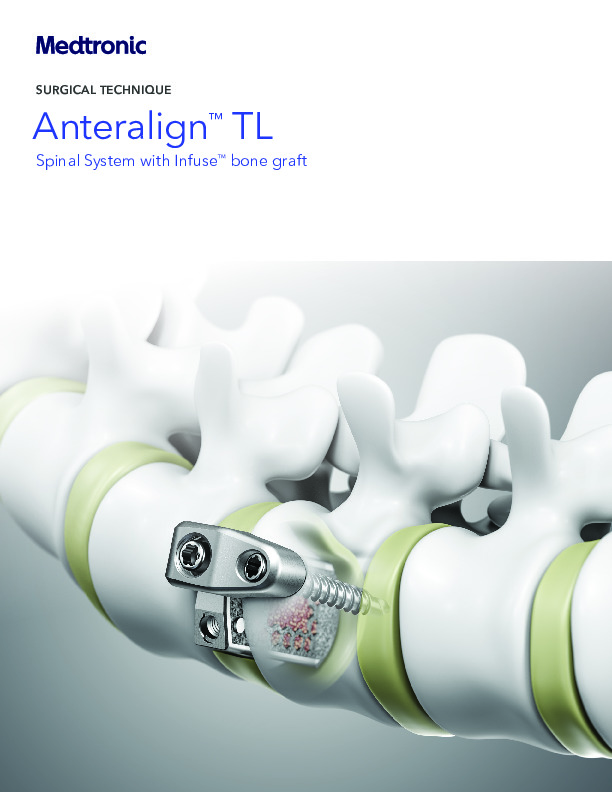

Product Brochures and Guides
