Arco-SA EX Expandable 3D Titanium Stand-Alone ALIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis)

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

Arco-SA EX is a standalone expandable zero-profile ALIF spacer made of titanium alloy with 3D printed textured titanium endplates, designed for anterior lumbar approach. In situ parallel expansion allows for insertion at a reduced height which minimizes impaction and preserves endplate integrity, and 3D printed textured titanium endplates promote immediate mechanical fixation and progressive bony ingrowth. Offered in two lordotic angles.

Features:

  • In situ parallel expansion with fixed lordosis up to 4mm vertical lift
  • 3D printed textured titanium endplates for increased bony ingrowth
  • 4 screw fixation with Zero-profile Stand-alone fixation
  • Locking screw plate to prevent backout

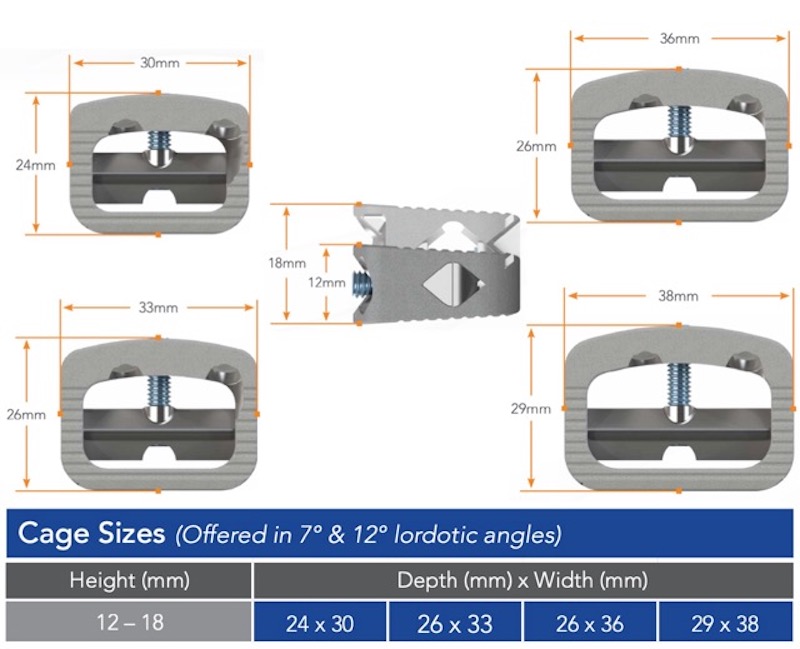

  • Footprint options (DxW):
    • 24 x 30 mm
    • 26 x 33 mm
    • 26 x 36 mm
    • 29 x 38 mm
  • Height options:
    • 12-18 mm
  • Lordosis options:
    • 7 degree
    • 12 degree

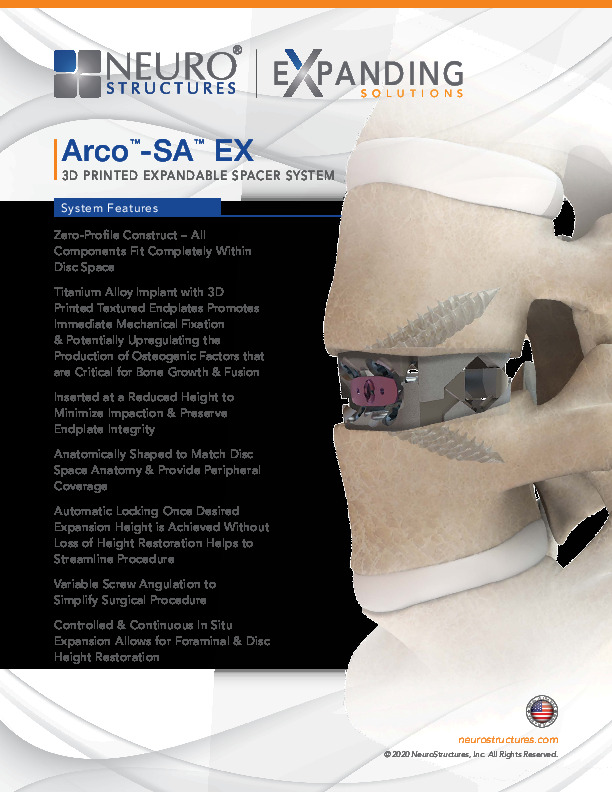

Product Brochures and Guides
