Elevate Expandable TLIF & PLIF Spacer

COMPANY: Medtronic

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Anterior Only Expansion , Parallel Expansion (Progressive Lordosis)

Cage Approach: Posterior/Straight (PLIF) Cage,Curved (TLIF) Banana Cage

Configuration: Cage Alone

By Material: PEEK/Titanium , Titanium (Solid)

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative , MIS/Perc

DESCRIPTION

The Elevate Expandable lumbar interbody spacer by Medtronic. The expandable implant is made of a titanium base and a PEEK superior endplate for improved visualization.

Features:


  • Titanium base with PEEK superior expandable
  • 2 versions of implant:

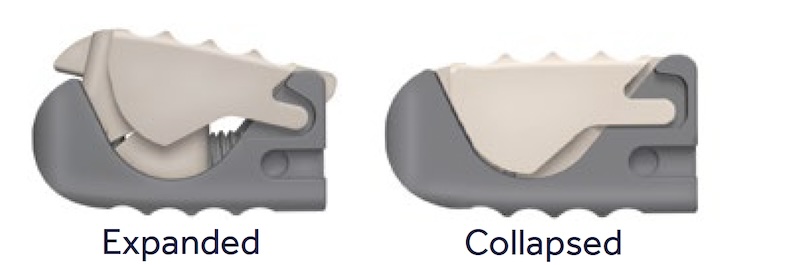

    • Standard implant: beings parallel and expands up to 8 degree lordosis with 1 mm posterior expansion and 4mm anterior
    • Extra lordotic implant: no posterior height expansion with up to 13 degree lordosis

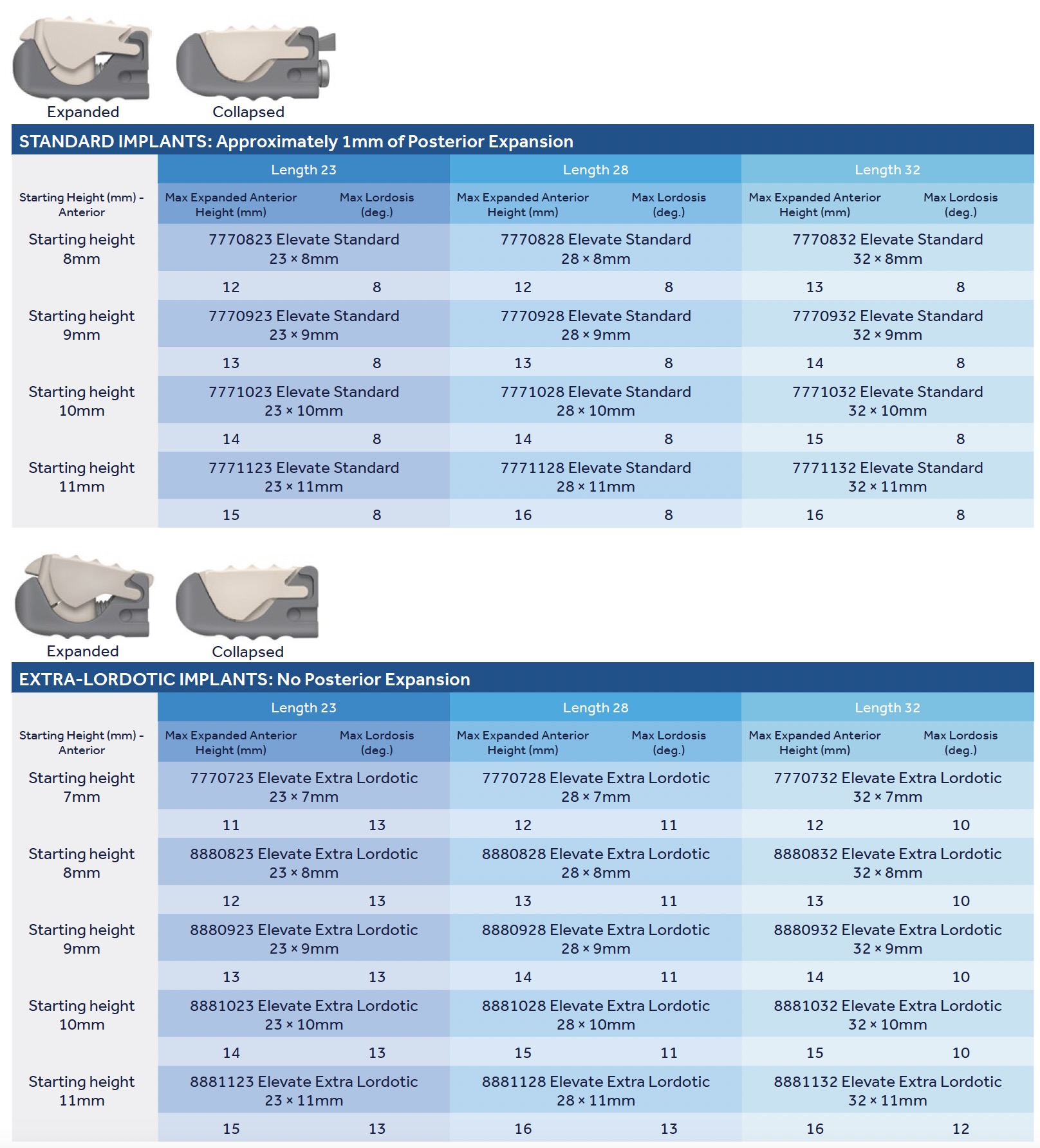

  • Standard and Extra-lordotic implant footprint:
    • 10x23mm
    • 10x28mm
    • 10x32mm
  • Height options:
    • Standard: 8-11mm
    • Extra-Lordotic: 7-11mm
  • Lordosis options:
    • Standard: 8 degree max
    • Extra-lordotic: up to 13 degree

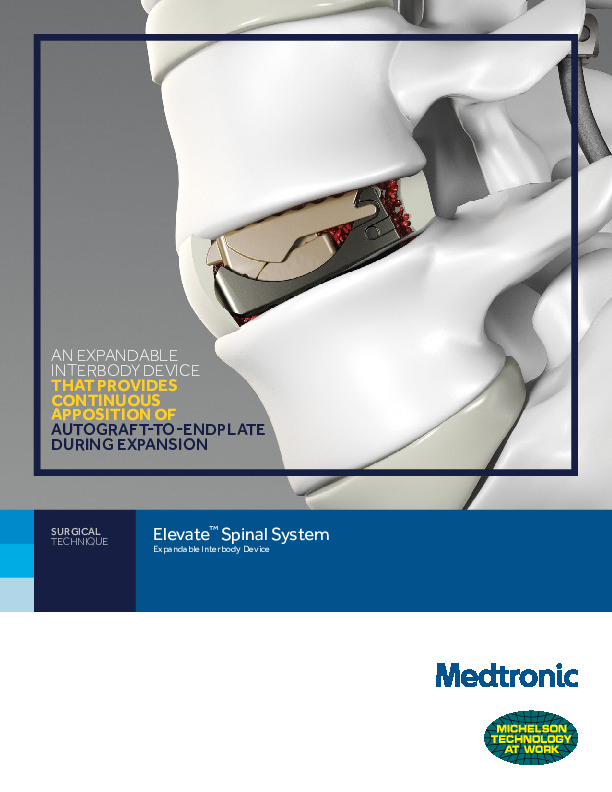

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
