ELSA Integrated Expandable Lateral Lumbar Interbody Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel Expansion (Progressive Lordosis)

Cage Approach: Lateral

Configuration: 0-Profile (Integrated screws)

By Material: Titanium (Solid)

By Location/Approach: Lateral Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

Lateral Implant Width: 20mm

DESCRIPTION

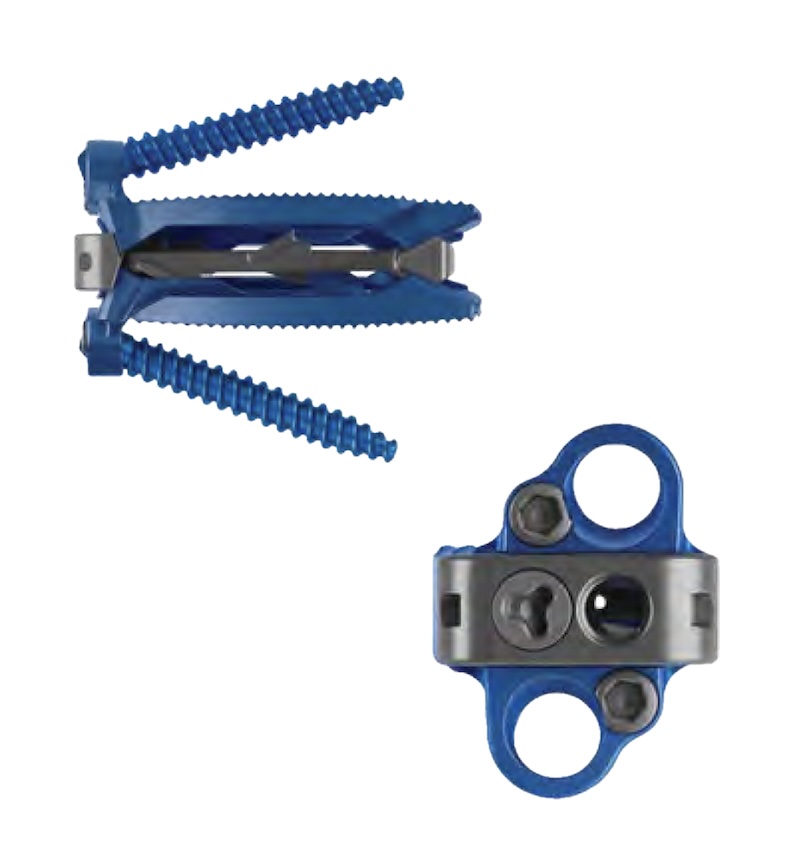

The ELSA is a direct lateral lumbar interbdoy spacer with integrated screw fixation and an adjustable expandable lordosis. This cage allows for progressive lordosis correction

Features:



  • Titanium construction with open architecture to allow for improved visualization on Xray and CT
  • Integrated lateral screw fixation with locking screws
  • Ability to backfill the lumen of the space through a funnel with plunger
  • Width options:
    • 20mm
  • Length options:
    • 40-65mm in 5mm increments

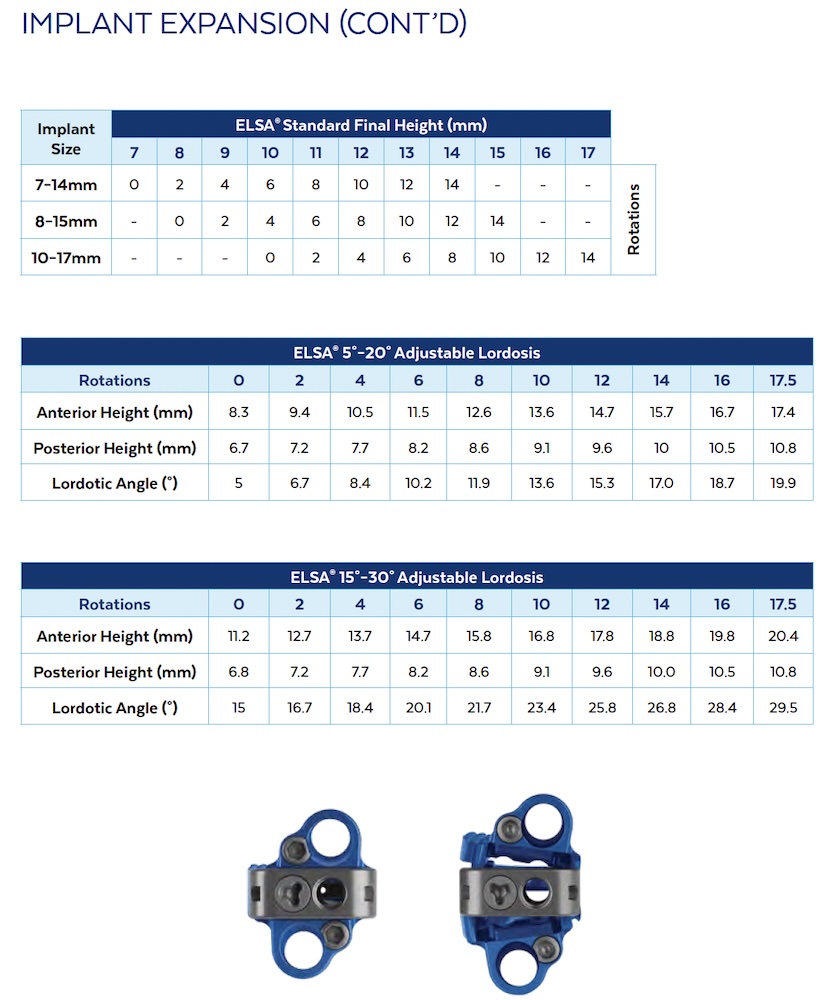

  • Lodosis expansion options:
    • 5-20 degree
    • 15-30 degree
  • Height ranges:
    • For 5-20 degree:
      • 7-14mm
      • 8-15mm
      • 10-17mm
    • For 15-30 degree:
      • 11-20mm

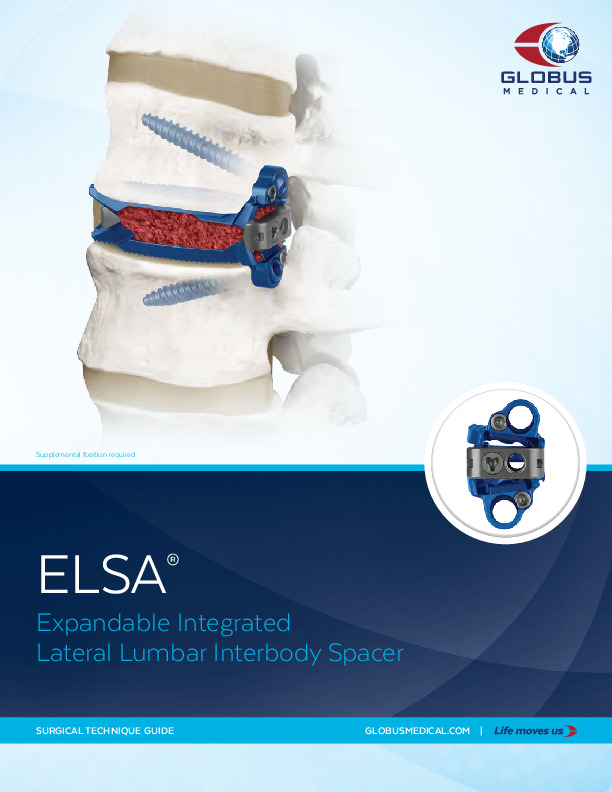

Product Brochures and Guides
