Excella III-D Thoracolumbar Deformity System

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar) , Iliac Bolts (S2AI)

Features: Polyaxial Head , Fixed Head , Extended Reduction Head Tabs

Screw Materials: Titanium

By Location/Approach: Posterior Thoracic , Posterior Lumbar , Posterior Sacral

By Procedure Type: Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative , Deformity , Trauma

By Material: Titanium (Solid)

DESCRIPTION

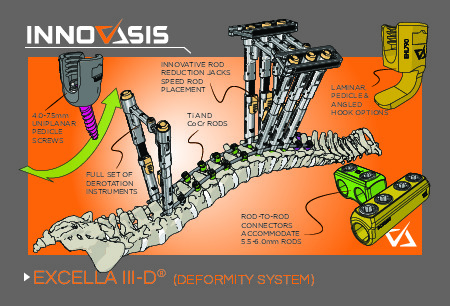

The Excella III-D Thoracolumbar Spinal Pedicle Screw Deformity System by Innovasis is a comprehensive pedicle screw fixation system that combines traditional polyaxial screws with 60 degree conical angulaiton with reduction heads, uniplanar and monoplanar deformity screws as well as iliac bolts. It also features a full complement of rods, rod connectors, hooks, and rod-to-rod connectors

Features:

  • Titanium materials
  • Screw options:
    • Polyaxial screw:  60 degree conical angulation
      • Diameter: 4.0, 4.75, 5.5, 6.5, 7.5, 8.5mm
      • Lenght options: 25-60mm
    • Reduction head Polyaxial: 60 degreee angulation
      • Diameters: 5.5, 6.5, 7.5mm
      • Length options: 30-50mm
    • Uniplanar: 60 degree uniplanar angulation
      • Diameter: 4.0, 4.75, 5.5, 6.5mm
      • Length options: 25-45mm
    • Iliac bolts:
      • Diameters: 7.5, 8.5mm
      • Length options: 70-100mm

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
