F3D 3D PrintedTitanium PLIF & TLIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Posterior/Straight (PLIF) Cage,Curved (TLIF) Banana Cage,Oblique Cages

Configuration: Cage Alone

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative

DESCRIPTION

The F3D 3D Printed titanium interbody spacers by Corelink (Now Zavation) is a Mimetic Metal which is an open highly porous metal architecture that allows wicking of blood products and allows for bone ingrowth. The Spacers are available in TLIF curved and PLIF bullet spacer

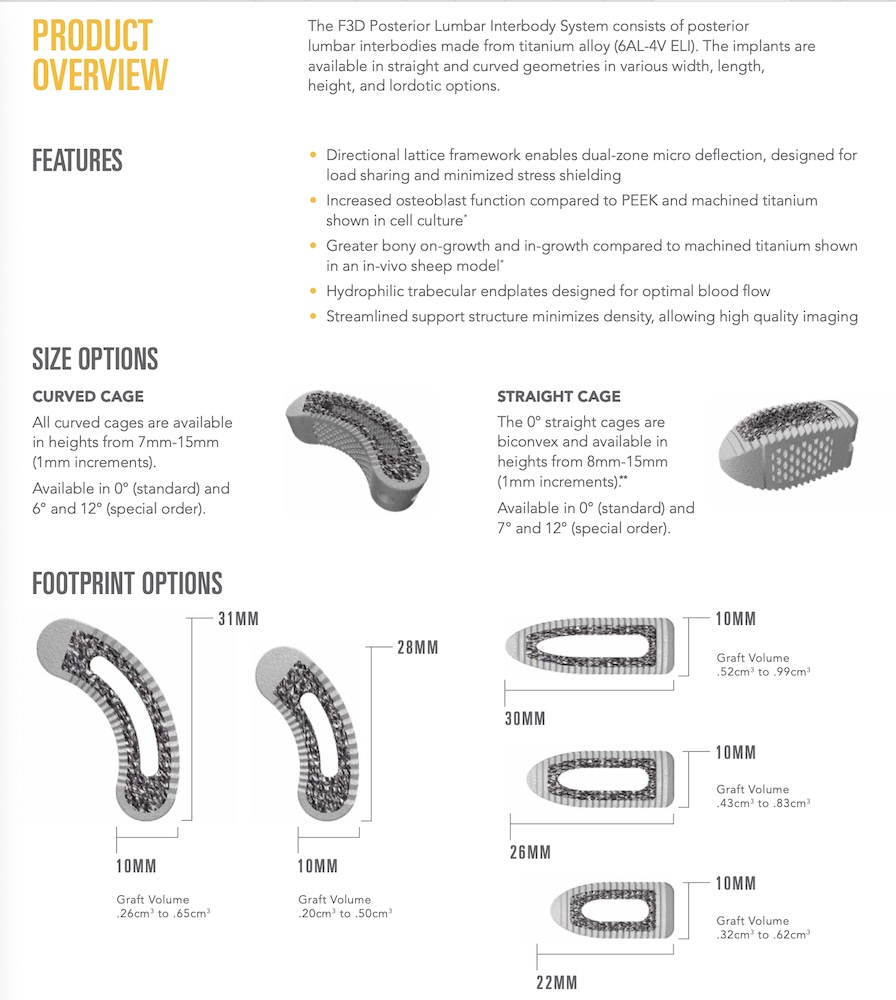

Features:

  • 3D printed titanium with Mimetic Metal technology
  • 60% porous architecture
  • Straight Bullet Spacer:
    • Footprint:
      • 10x22mm
      • 10x26mm
      • 10x30mm
    • Lordosis options:
      • 0 degrees (anatomic)
      • 7 degrees
      • 12 degrees
    • Height options: 8-15mm
  • Curved TLIF Spacer:
    • Footprint:
      • 10x28mm
      • 10x31mm
    • Lordosis options:
      • 0 degrees
      • 6 degrees
      • 12 degrees
    • Height option:
      • 7-15mm

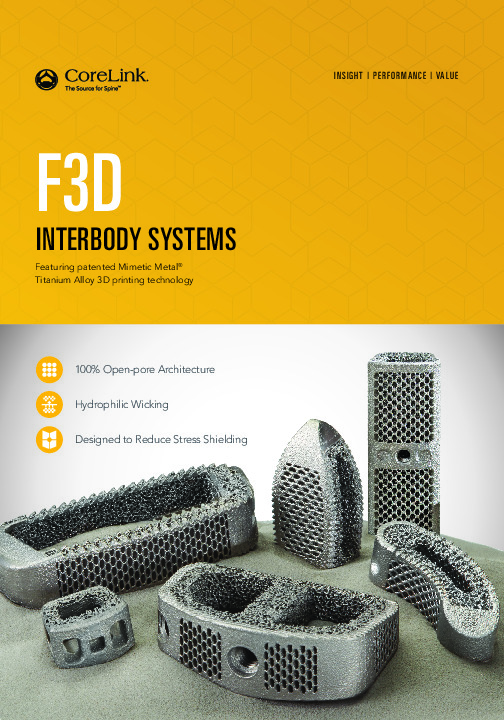

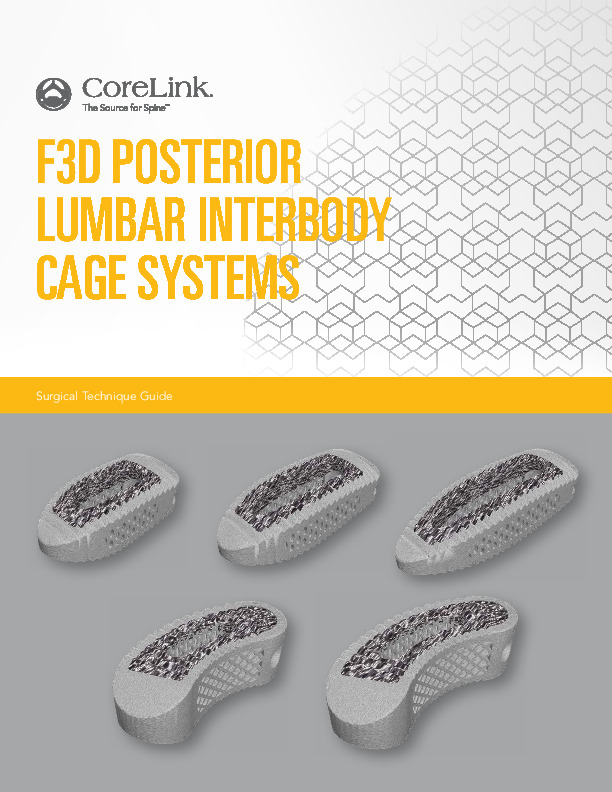

Product Brochures and Guides
