HiJAK AC Expandable ACDF Spacer

COMPANY: Atlas Spine

MANUFACTURER INFO:HiJAK Expandable ACDF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Cervical

Expansion: Expandable

Expansion Type/Lordosis: Anterior Only Expansion , Parallel Expansion (Progressive Lordosis)

Cage Approach: Anterior

Configuration: Cage Alone

By Material: Titanium (Solid) , Titanium etched

Cage Material: Titanium Solid (etched surface)

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative

DESCRIPTION

The HiJAK is a novel expandable anterior cervical interbody spacer for use in the ACDF procedure. It features a titanium etched surface and a large central graft window and 2.5mm of anterior height expansion with 1.25mm of posterior height expansion. It offers two footprint sizes and multiple lordotic range options.

Features:

  • Etched titanium surface
  • Large central graft window
  • Requires supplemental fixation

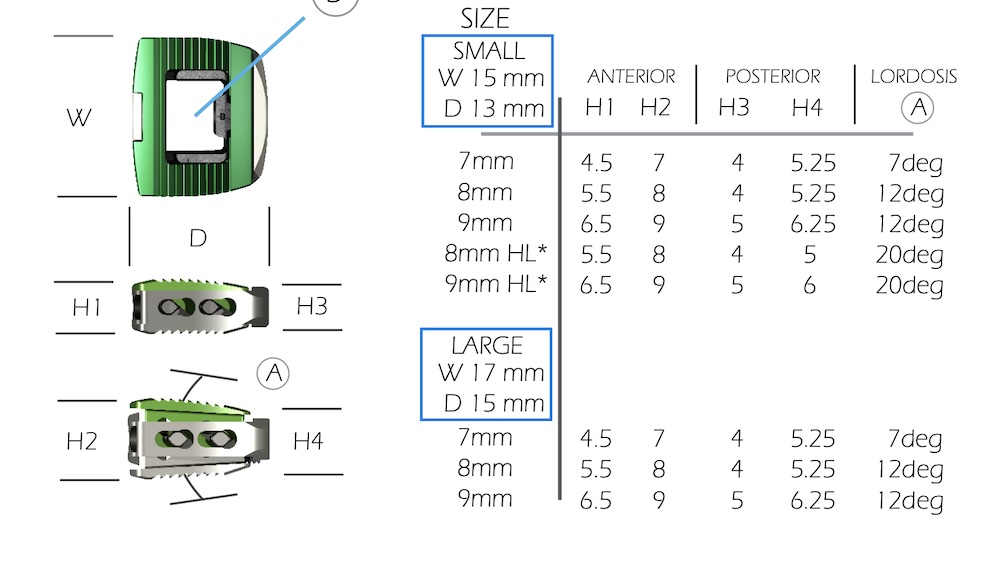

  • Footprint options: WxD
    • Small: 15x13mm
    • Large: 17x15mm
  • Lordosis options:
    • 7 degree
    • 12 degree
    • 20 degree
  • Height options: Expanded
    • 4.5-7mm
    • 5.5-8mm
    • 6.5-9mm

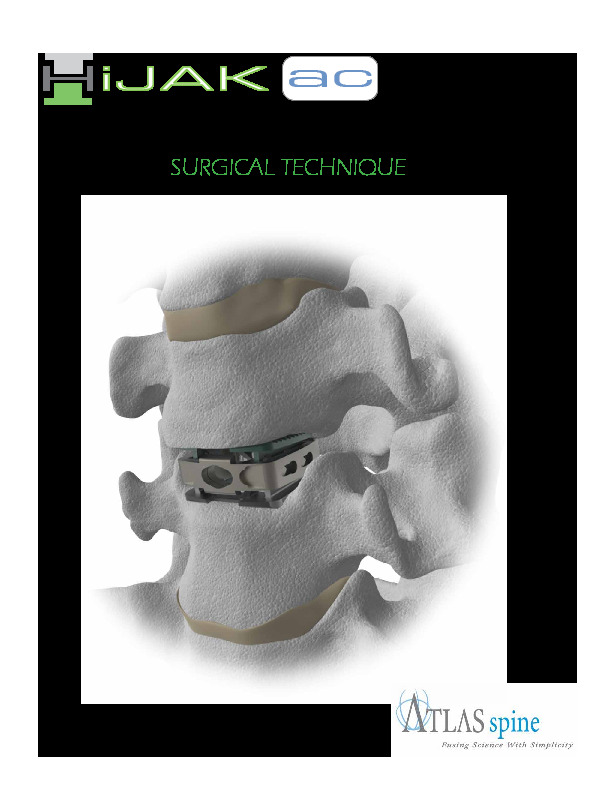

Product Brochures and Guides
