HIVE Stand-Alone ALIF 3D printed Soft Titanium

LEAVE A REVIEW

COMPANY: NanoHive Medical

MANUFACTURER INFO:HIVE Stand-Alone ALIF 3D printed Soft Titanium

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: 3D Printed Titanium , Soft (Dynamic) Titanium , Titanium etched

Cage Material: Titanium Solid (etched surface)

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

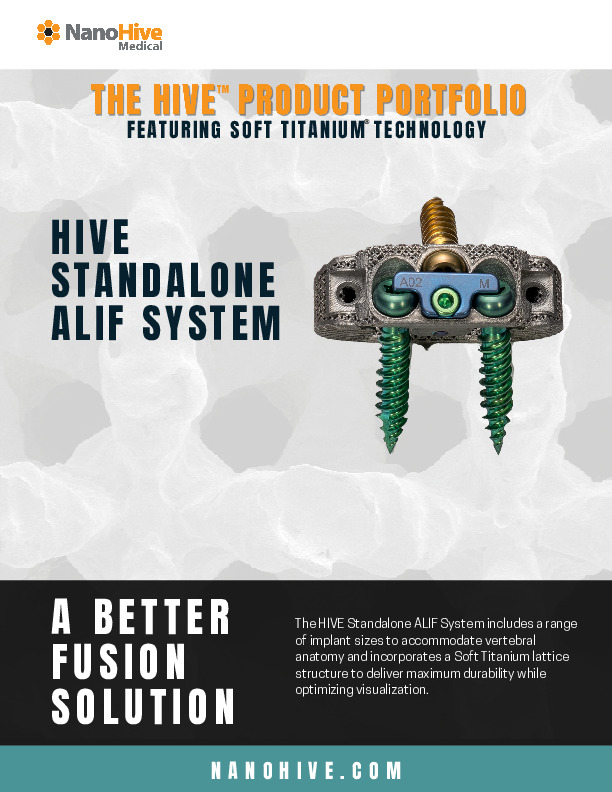

The HIVE Stand-alone ALIF system by NanoHive is a novel soft-titanium lattice that incorporates a low density 3D printed titanium architecture design that allows independent movement of the endplates under physiologic loads. This is accomplished via the unique internal architecture that allows some dynamic motion and load distributuion. It also features acid-etched surface treatment to increase bony ingrowth. Injection ports allow flowable graft to be injected into the internal structure of the implant. The implant incorporates 3 hole screw fixation with locking screw plate for zero-profile stand-alone usage.

Features:

NanoHive's proprietary 3D printed soft titanium utilizing unique architecutre that allows the graft to flex dynamically under load.
Surface etched treatment to increase bony adherance
Injection ports for flowable bone graft in addition to large central graft window
3 locking screw fixation
Low density architecture allows better visualization on Xrays and post op imaging.
Footprint options: WxD
- 32x26mm
- 38x26mm
- 42x28mm
Lordosis options:
- 8 degree
- 15 degree
- 22 degree
Height options:
- 11-19mm in 2mm increments
