Invictus OCT Occipital Cervical Fixation

COMPANY: ATec

SPECS

Product Category: Spinal Implants

By Product Type: Screws , Plates

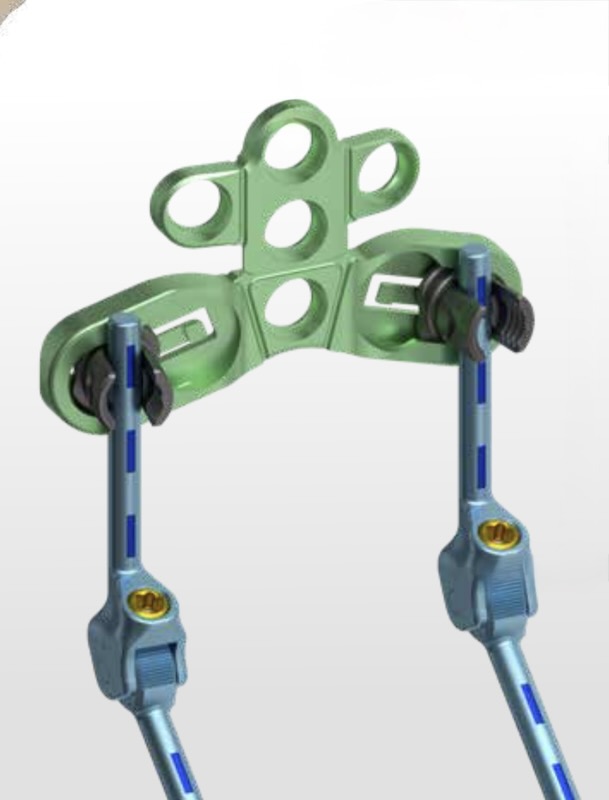

Plate Location: Occipital

Screw Type: Posterior Cervical (Lateral Mass) , Pedicle Screws (Cervico-Thoracic)

Features: Polyaxial Head , Favored Angle Head

Screw Materials: Titanium

By Location/Approach: Posterior Cervical , Posterior Lumbar

By Procedure Type: PCF

By System Type: Degenerative , Deformity

By Material: Titanium (Solid)

DESCRIPTION

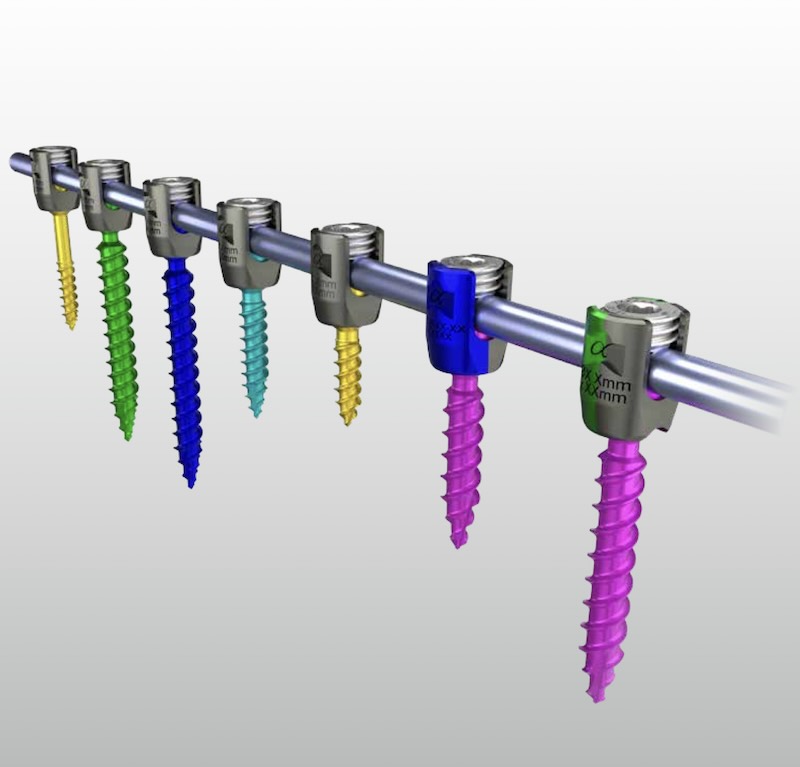

The Invictus OCT is a comprehensive occpito-cervico-thoracic fusion from occiput to T3. Screw options include:


  • Polyaxial screw

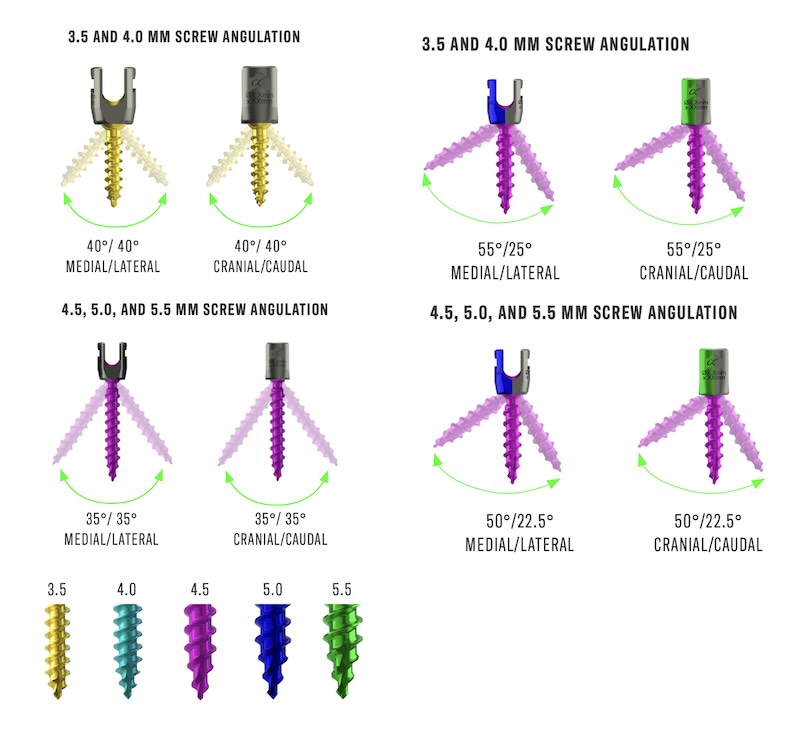

    • 80 degrees of total angulation
    • Size options 3.5, 4.0, 4.5, 5.0, 5.5mm
    • Accept 3.5 and 4.0mm rods
    • Cervical lengths: 10-40mm in 2mm increments
    • Thoracic lengths: 20-45mm
  • Favored Angle Screws
    • Available in 2 versions in different directions, either cranial-caudal or medial-lateral depending on the direction that additional angulation is required.
    • Angulation up to 55 degrees in the favored plan in both versions of the screw.
    • Available sizes: 3.5, 4.0, 4.5, 5.0, 5.5mm
    • Available lengths: 10-40mm
  • Partially threaded screw (C1)
    • 10mm smooth shank proximally
    • Available sizes: 3.5, 4.0mm
    • Available length: 24-36mm
  • Polyaxial Reduction Screw
    • Same ROM as regular polyaxial screw
    • Size options: 4.0, 4.5, 5.0, 5.5mm
Comes with full set of rod-to-rod cross connectors, head-to-head cross connectors, offset connectors, and rod connectors
