Janus Midline Cortical Pedicle Screw

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar)

Features: Fenestrated , Detachable/ Modular Head , K-Wire Cannulated , Polyaxial Head , Medial Cortical Screw , Self Tapping

Screw Materials: Titanium

By Location/Approach: Posterior Lumbar

By Procedure Type: Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative , MIS/Perc

By Material: Titanium (Solid)

DESCRIPTION

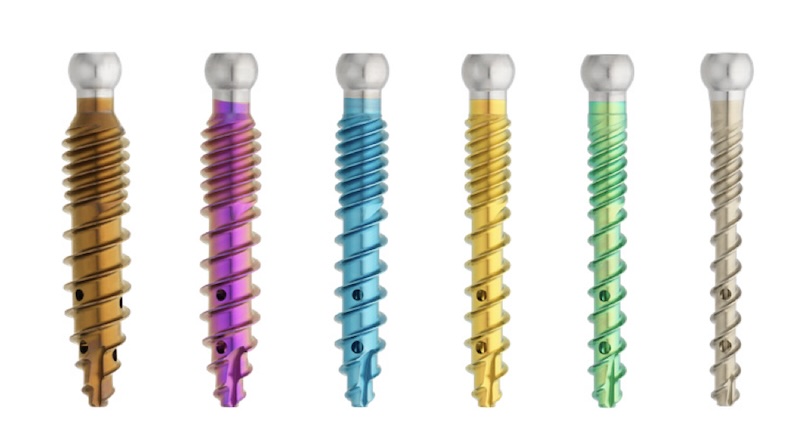

The Janus Midline Cortical Pedicle screw fixation system by SeaSpine-Orthofix is a modular head system used for fixation of the thoracolumbar spine. It features a dual pitch thread and has both cannulated, non-cannulated, and fenestrated options.

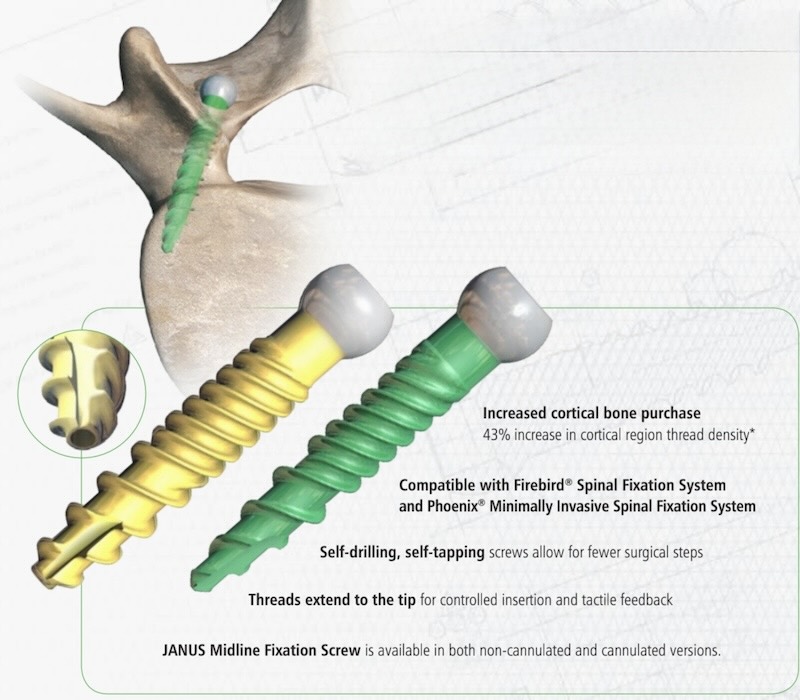

Features:

  • Self drilling and self tapping
  • Dual thread with cortical threads
  • Cannulated and non-cannulated options
  • Fenestrated screws available for cement augmentation
  • Screw size options:
    • Non-Cannulated screws
      • Diameter options: 4.5, 5.5, 6.5mm
      • Length options: 25-45mm
    • Cannulated
      • Diameter options: 4.5, 5.5, 6.5, 7.5mm
      • Length options: 25-65mm in 5mm increments
    • Fenestrated screws
      • Diameter options: 4.5, 5.5, 6.5, 7.5, 8.5, 9.5mm
      • Length options: 30-80mm in 5mm increments
