LumiVy-AS NanoVy Ti Coated PEEK Lumbar IBF Stand-Alone ALIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: Titanium Coated PEEK , PEEK Solid block

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

Cage Material: Titanium Plasma Sprayed

DESCRIPTION

LumiVy-AS NanoVy Ti Coated PEEK Lumbar IBF ALIF spacer by VySpine is a standalone interbody fusion device intended for use at one or two contiguous levels in the lumbar spine. It comes in multiple shapes, sizes and angulations, all with anti-migration teeth on the superior and inferior surfaces. The components are made of PEEK-Optima and coated in NanoVy Ti, with embedded radiographic tantalum markers. The NanoVy Ti coating boasts increased osseointegration, reduction in fibrous layer, and resistance to delamination.

Features:

  • Standalone cage with itegrated 4-screw fixation
  • 0.5 microns thick nano coating of CP Titanium
  • Increased bony apposition and reduction in fibrous tissue
  • Little to no delamination, even during impact
  • Footprint options:
    • 30 x 24 mm
    • 34 x 26 mm
    • 38 x 27 mm
  • Height options:
    • 8-15 mm in 1 mm increments
  • Lordosis options:
    • 6 degree
    • 10 degree
  • Screw options:
    • Variable angle and self-drilling
    • 4.5-5.5 mm diameters
    • 15-30 mm lengths
  • Cover plate available

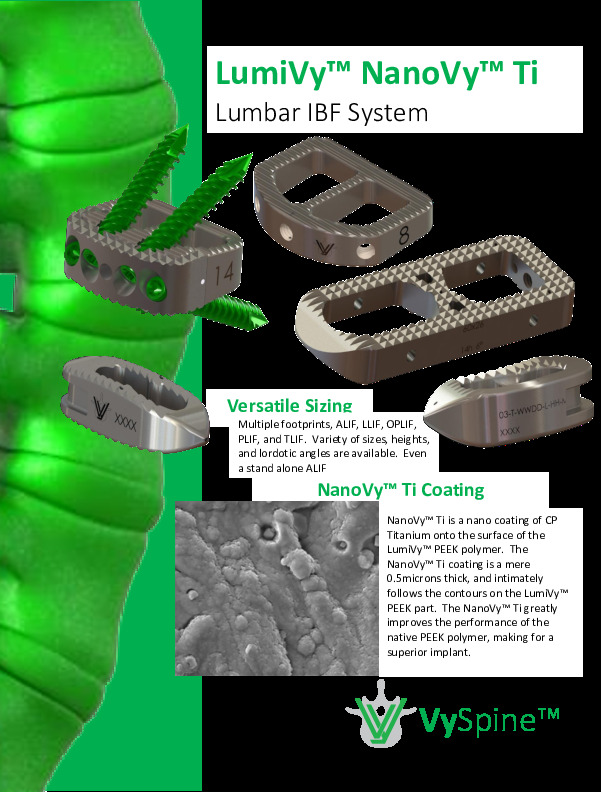

Product Brochures and Guides
