M3 Stand-Alone ALIF 3D Printed ALIF Integrated Spacer

COMPANY: CoreLink (Zavation)

MANUFACTURER INFO:M3 Stand-Alone ALIF

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

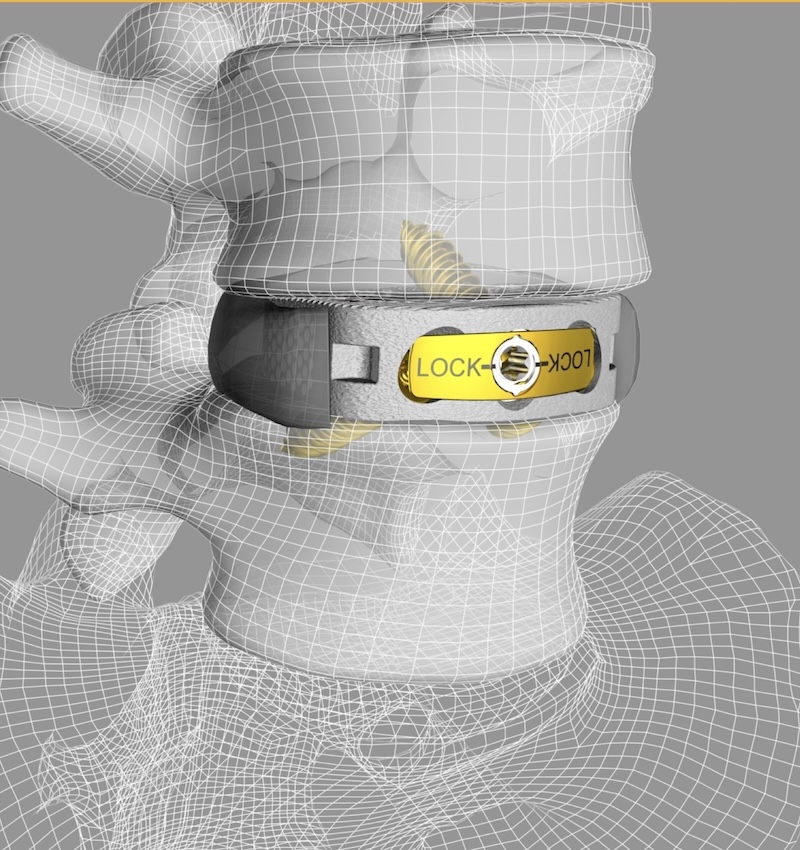

The M3 Stand-Alone ALIF Spacer by CoreLink (Zavation) is a 3D printed titanium ALIF cage with proprietary Mimetic Metal technology. The cafe features integrated locking screw technology and an anterior plate to prevent screw back-out.

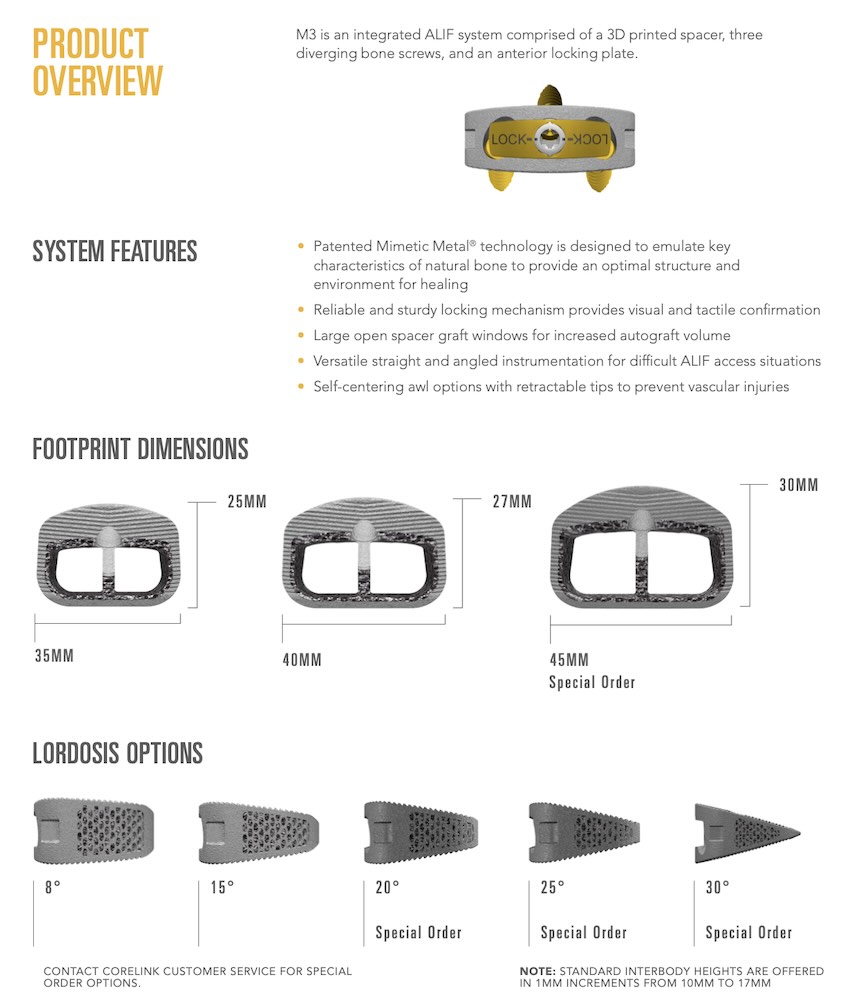

Features:

  • 3D printed titanium with Mimetic Metal technology to emulate cancellous bone for increased bony ingrowth.
  • Integrated screw fixation
  • Locking screw cover plate
  • Footprint options: WxD
    • 35x25mm
    • 40x27mm
    • 45x30mm
  • Lordosis options:
    • 8 degree
    • 15 degree
    • 20 degree (special order)
    • 25 degree (Special order)
    • 30 degree (special order)
  • Height options:
    • 10-16mm anterior height
  • Screw options:
    • 5.5 and 6.5mm diameter
    • Length: 15-30mm

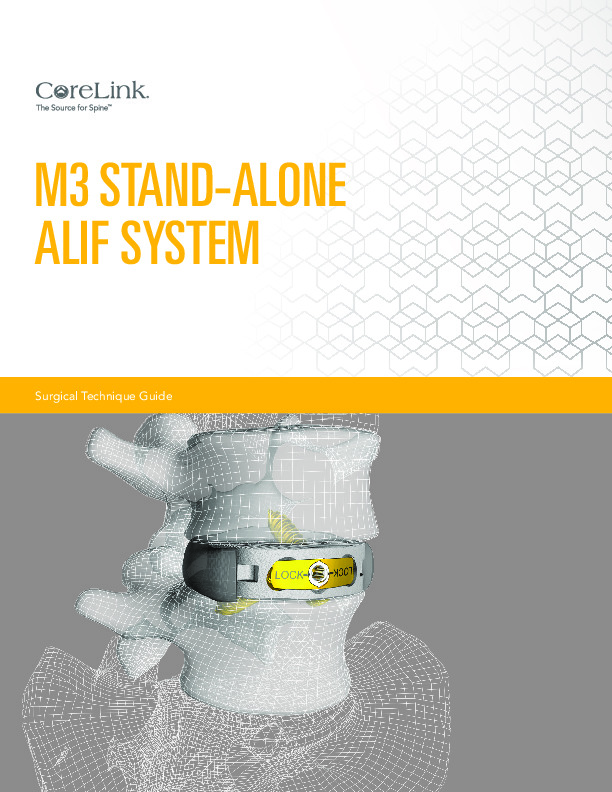

Product Brochures and Guides
