MOD-EX PL Expandable Interbody System

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Differential Expansion (Ant vs Post)

Cage Approach: Posterior/Straight (PLIF) Cage,Oblique Cages

Configuration: Cage Alone

By Material: Titanium (Solid)

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative , Deformity

Cage Material: 3D Printed Titanium , Titanium Solid (etched surface)

DESCRIPTION

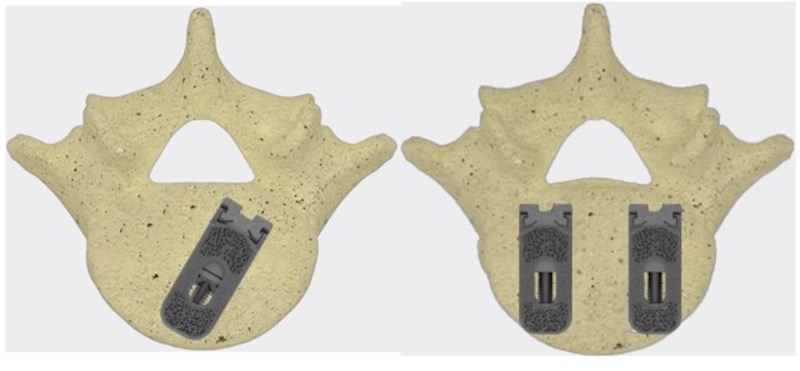

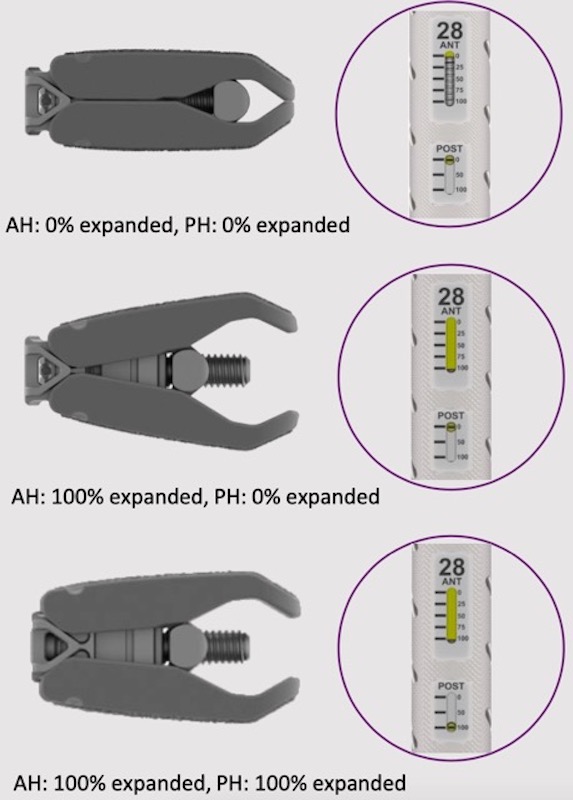

The MOD-EX PL is an expandable interbody system designed for both PLIF and TLIF techniques, with customizable lordosis via independent expansion of the anterior and posterior aspects of the implant.


Modulus microporous architecture is integrated into the endplates to maximize bone-to-implant contact, promoting bone on-growth and increasing expulsion resistance.

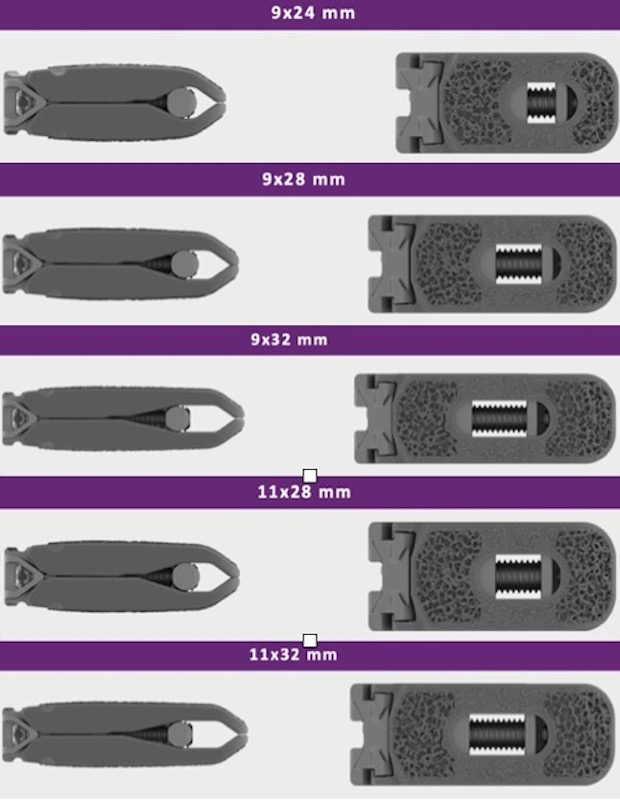

  • Width x Length:
    • 9x24 mm
    • 9x28 mm
    • 9x32 mm
    • 11x28 mm
    • 11x32 mm
  • Anterior Height:
    • 7, 9, and 11 mm + up to 5-9mm with expansion
  • Posterior Height:
    • 7, 9, and 11 mm + up to 2mm with expansion
  • Lordosis:
    • 0-17 degrees (7mm AH)
    • 0-22 degrees (9 and 11 mm AH)

Product Brochures and Guides
