Normandy Thoracolumbar Expandable Corpectomy Cage

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Corpectomy Cage/Thoracic,Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis)

Cage Approach: Anterior , Oblique (ATP: Anterior-To-Psoas) , Lateral

Configuration: Cage Alone

By Material: Titanium (Solid)

By Location/Approach: Anterior/Lateral Thoracic , Anterior Lumbar , Lateral Lumbar , Oblique Lumbar

By Procedure Type: Thoraco-lumbar Corpectomy

By System Type: Degenerative , Deformity , Trauma

DESCRIPTION

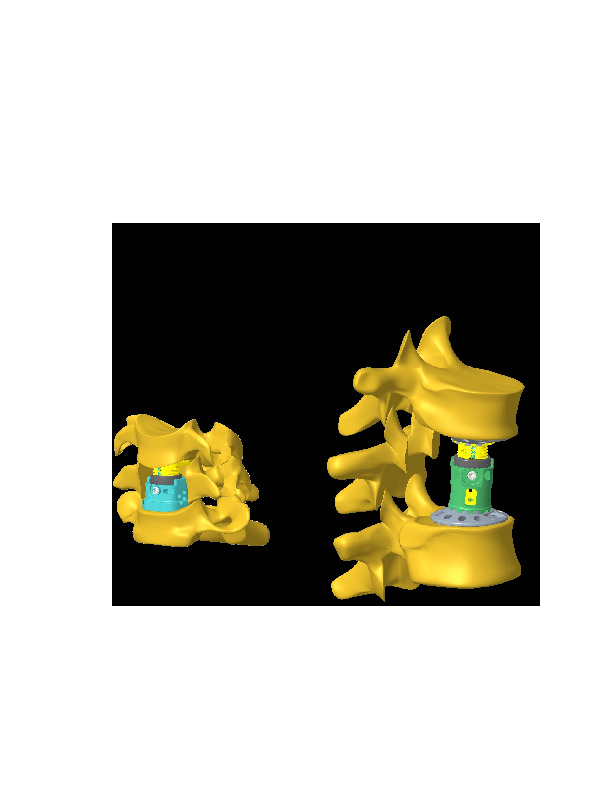

The Normandy Expandable Thoracolumbar Corpectomy VBR System by Zavation is a titanium expandable spacer for use in the anterior of lateral approach to the T1-S1 spine.

Features:

  • Titanium construction
  • Spiked endplates for bony grip
  • Requires supplemental fixation
  • Large central graft window

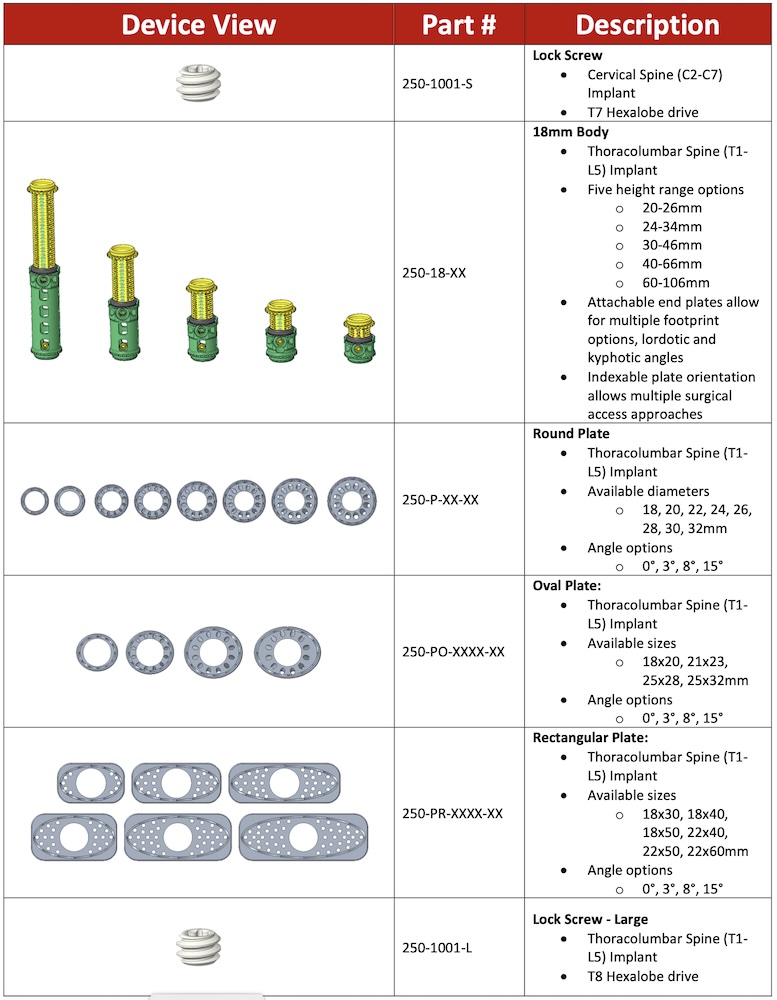

  • Endplate options:
    • Round
      • Diameters: 18, 20, 22, 24, 26, 28, 30, 32mm
      • Angles: 0, 3, 8, 15 degree
    • Oval
      • Diameters: 18x20mm, 21x23mm, 25x28mm, 25x32mm
      • Angles: 0, 3, 5, 8, 15 degree
    • Rectangular
      • Size: 18x30mm, 18x40mm, 18x50mm, 22x40mm, 22x50mm, 22x60mm
      • Angles: 0, 3, 8, 15 degree
  • Core diameter: 18mm
  • Height ranges:
    • 20-26mm
    • 24-34mm
    • 30-46mm
    • 40-66mm
    • 60-106mm

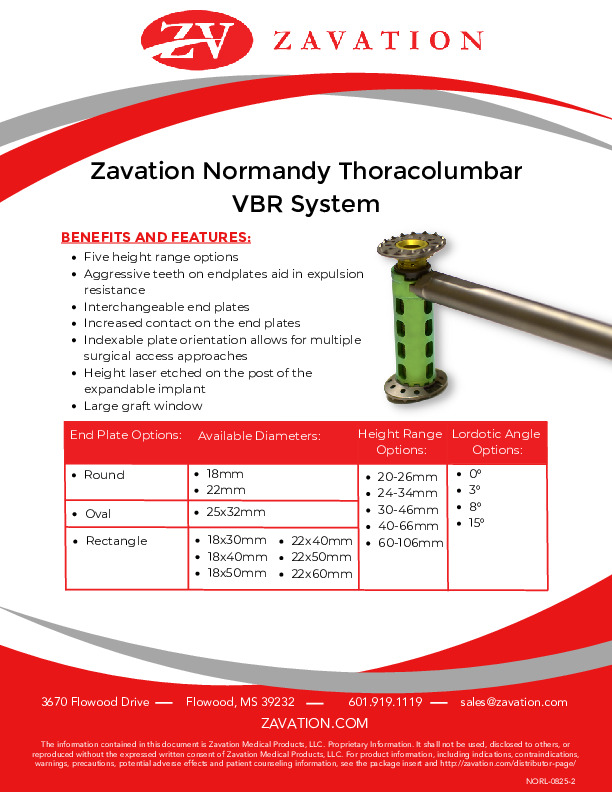

Product Brochures and Guides
