PIVOX Oblique Lumbar Interbody Spacer

COMPANY: Medtronic

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Oblique (ATP: Anterior-To-Psoas) , Lateral

Configuration: Cage Alone , Low profile plate attached

By Material: PEEK Solid block

Plate Location: Thoracic/lumbar

Plate Approach: Lateral Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Lateral Lumbar , Oblique Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

DESCRIPTION

The PIVOX is an Oblique interbody spacer for use in the Oblique lumbar approach by Medtronic. It is available in PEEK and has a pivoting inserter and ability to affix plate in an oblique approach as well.

Featrues:

  • Radiolucent PEEK material
  • Optional plate can be affixed directly to cage

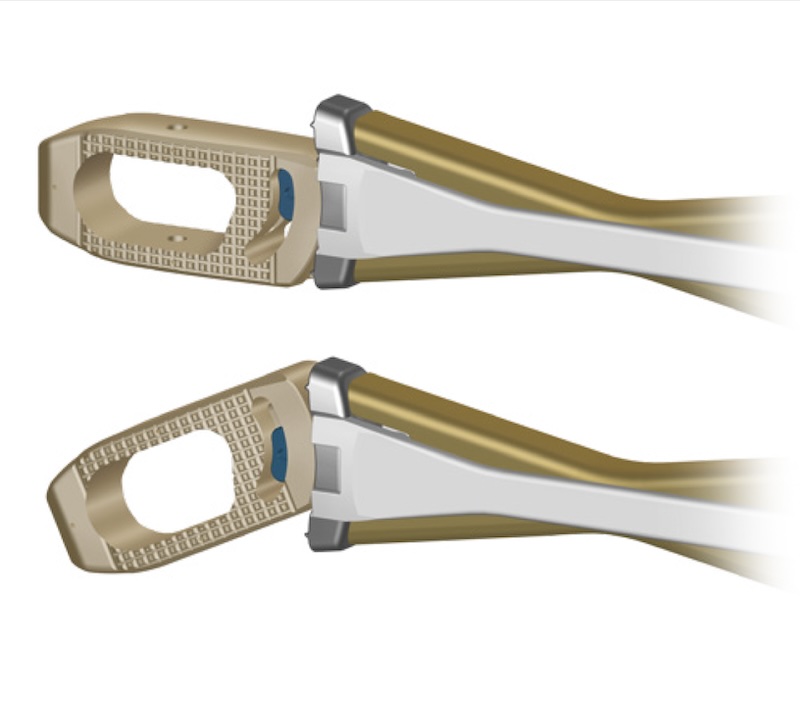

  • Pivoting inserter

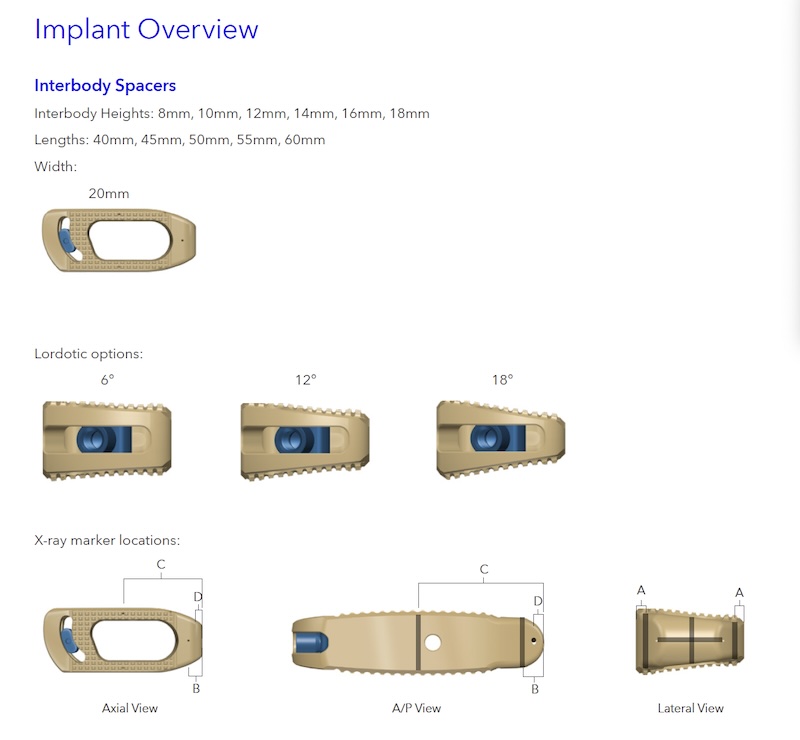

  • Footprint options:
    • Width: 20mm
    • Lengths: 40, 45, 50, 55, 60mm
    • Heights: 8, 10, 12, 14, 16, 18mm
    • Lordosis: 6, 12, 18 degrees

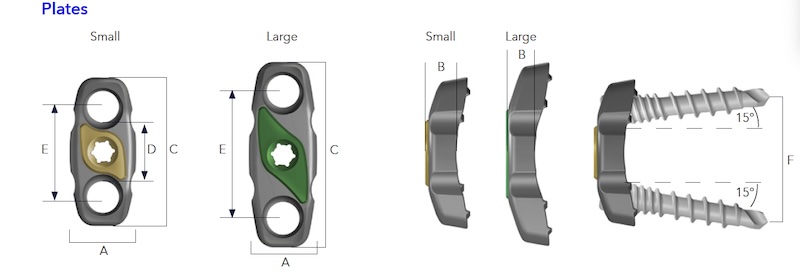

  • Plate options:
    • Small: 28.4mm
    • Large: 34.6mm
