COSY Posterior OCT Occipital-Cervical-Thoracic Fusion System

SPECS

Product Category: Spinal Implants

By Product Type: Screws , Plates

By Location/Approach: Occipital , Posterior Cervical

Screw Type: Posterior Cervical (Lateral Mass) , Pedicle Screws (Cervico-Thoracic)

Features: Polyaxial Head

Screw Materials: Titanium

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate , Dynamic Plate

By Procedure Type: PCF

By System Type: Degenerative , Deformity , Trauma , Oncology

By Material: Titanium (Solid)

DESCRIPTION

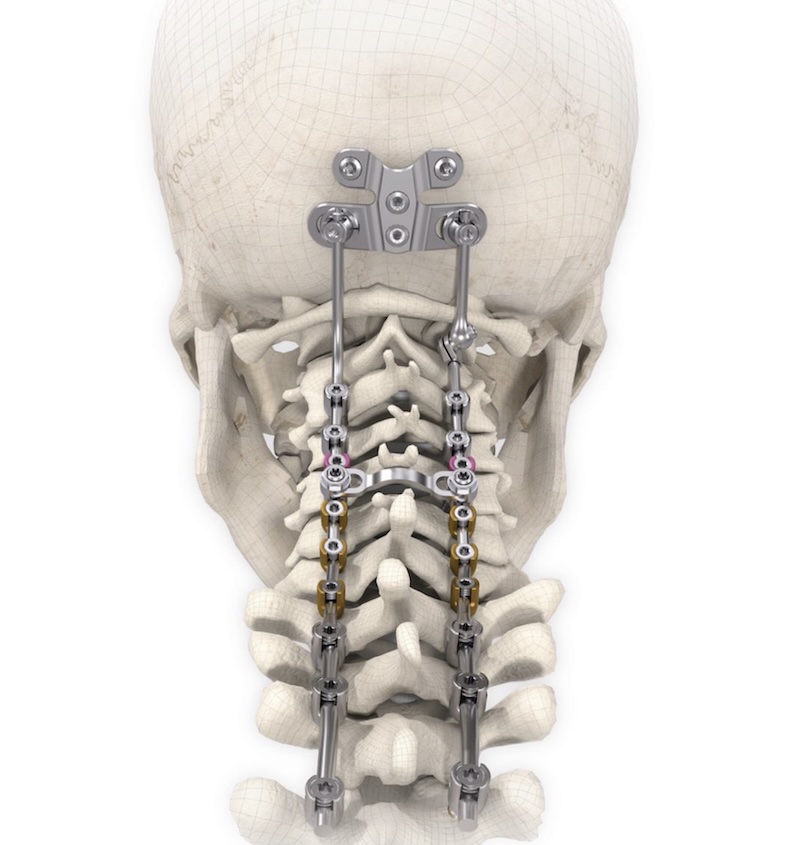

The COSY by Signus USA is a comprehensive Occipital-Cervical-thoracic stabilization system that incorporates hardware required to fuse to the occiput and joins to DIPLOMAT posterior thoraco-lumbar fixation system. COSY incorporates all relevant rod connectors, side connectors, domino connectors, and an occipital plate with rotating and translating tulip heads for easy rod capture. Includes pre-bent rods as well as hinged rods for occipital fixation.

Features:

  • Comprehensive system
  • Screw options:
    • Fixed and variable angle, up to 70 degrees of angulation
    • Polyaxial, smooth shank, self-drilling, low profile, and cannulated
    • 3.5-4.5 diameter
    • 10-50 mm lengths
  • Rod options:
    • Titanium
    • 3.5 mm diameter
    • Curved, 30-90 mm lengths
    • Straight, 80-360 mm lengths
    • Transition rod, 3.5/5.5-6.0 mm diameter, 420-600 mm lengths
  • Occiput options:
    • Occipital plate:
      • 2x32x56 mm
      • 4- and 5-hole
      • Adjustable rod holders from 30-42 mm width
    • Occipital screws:
      • 4.5-5.0 diameter
      • 6-16 mm length
      • Regular and rescue screws
    • Occipital rods:
      • Precurved, 120 degree, 3.5x300 mm
      • Variable angle, hinged, 360 degree, 3.5x85 mm
