Product Category: Spinal Implants
By Product Type: Screws
Screw Type: Pedicle Screws (Thoraco-lumbar)
Features: Polyaxial Head , Fixed Head , 0-Profile Top Loading Rod
By Location/Approach: Posterior Thoracic , Posterior Lumbar , Posterior Sacral
By Procedure Type: TLIF , PLIF , Thoraco-lumbar-Pelvic Fixation
By System Type: Degenerative , Deformity
By Material: Titanium (Solid)
Screw Materials: Titanium
CREO Side Loading:

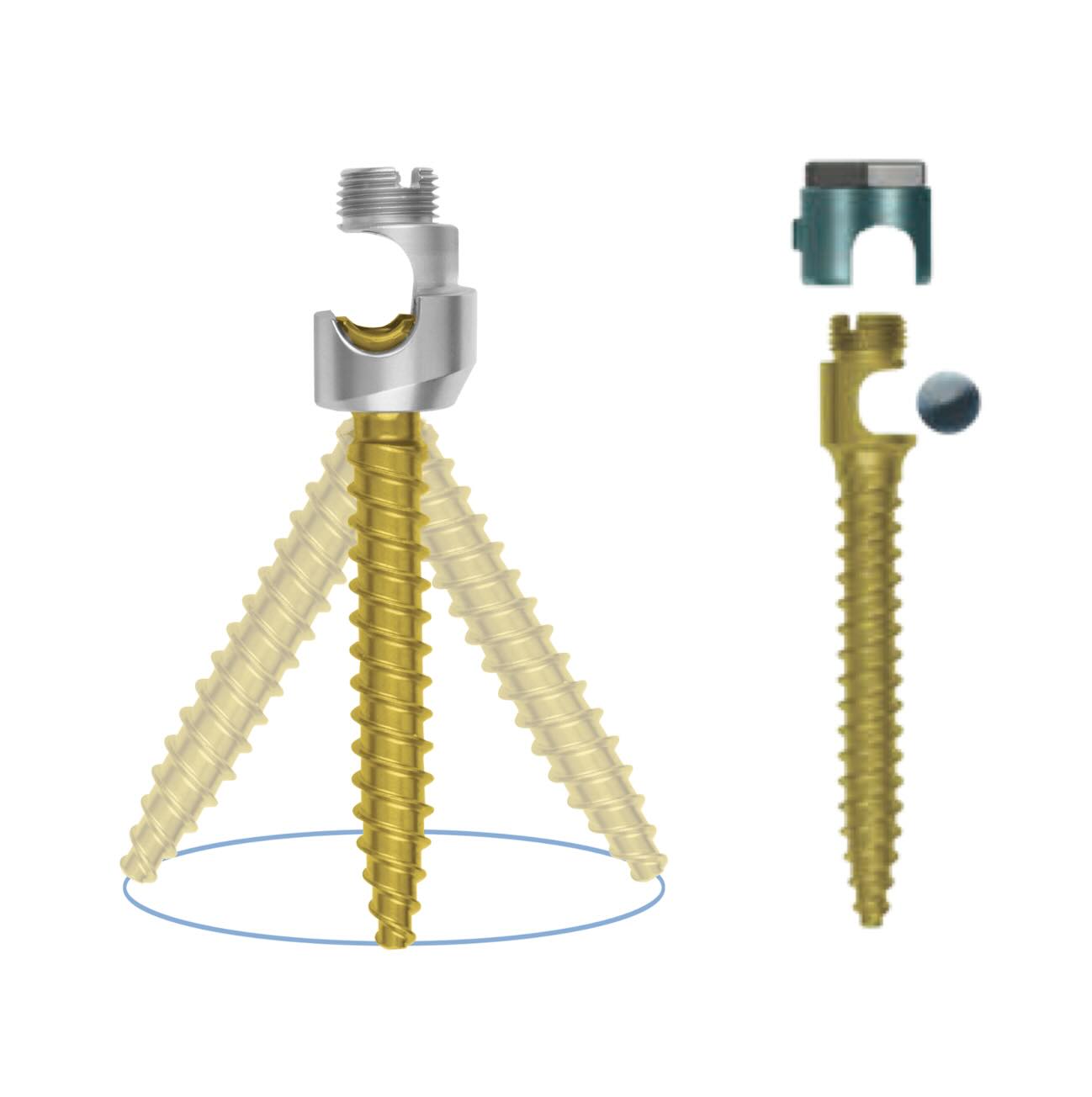

The CREO Side Loading Pedicle Screw stabilization system by Globus Medical is a non modular polyaxial screw fixation system with a lateral capture of the rod. The locking sleeve captured and hold the rod in place before final tightening. The system comes with multiple screw options
Screw Options:
Monoaxial Screw: Double threaded, blunt tip
Polyaxial Screws: Double threaded, blunt tip
- Screw sizes: 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.5, 8.5, 9.5, and 10.5mm
- Screw lengths: 20–120mm
- Accept 5.5mm or 6.0mm diameter rod
Uniplanar Screws: Deformity correction screws
- ±30° angulation (60° total)
- Screw diameters: 4.0, 4.5, 5.0, 5.5, 6.5, 7.5, 8.5, 9.5, and 10.5mm
- Screw lengths 20–120mm
- Accept 5.5mm or 6.0mm diameter rod
Dual Outer Diameter (DOD) Screws: Designed for Sacro-iliac fixation Nominal diameter at distal end allows for deeper insertion in sacrum without perforation
- ±20° angulation in cranial/caudal direction
- Screw diameters: 4.0, 4.5, 5.0, 5.5, 6.5, 7.5, and 8.5mm
- Screw lengths: 20-65mm Accept 5.5mm or 6.0mm diameter rod
- ±30° angulation (60° total)
- Available in proximal/distal outer diameters: 8.0/6.5, 8.5/7.0, 9.5/8.0, and 10.5/9.0mm
- Screw lengths: 70–120mm
