Dolomite Stand Alone ACDF HA PEEK & Titanium

COMPANY: Astura Medical

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage

Plate Location: Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws) , Low profile plate attached

By Material: PEEK Solid block , Titanium (Solid) , Titanium etched , HA (Hydroxyapatite) Coated

Cage Material: Titanium Solid (etched surface) , HA (Hydroxyapatite) Integrated PEEK

Plate Approach: Anterior Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , MIS/Perc

DESCRIPTION

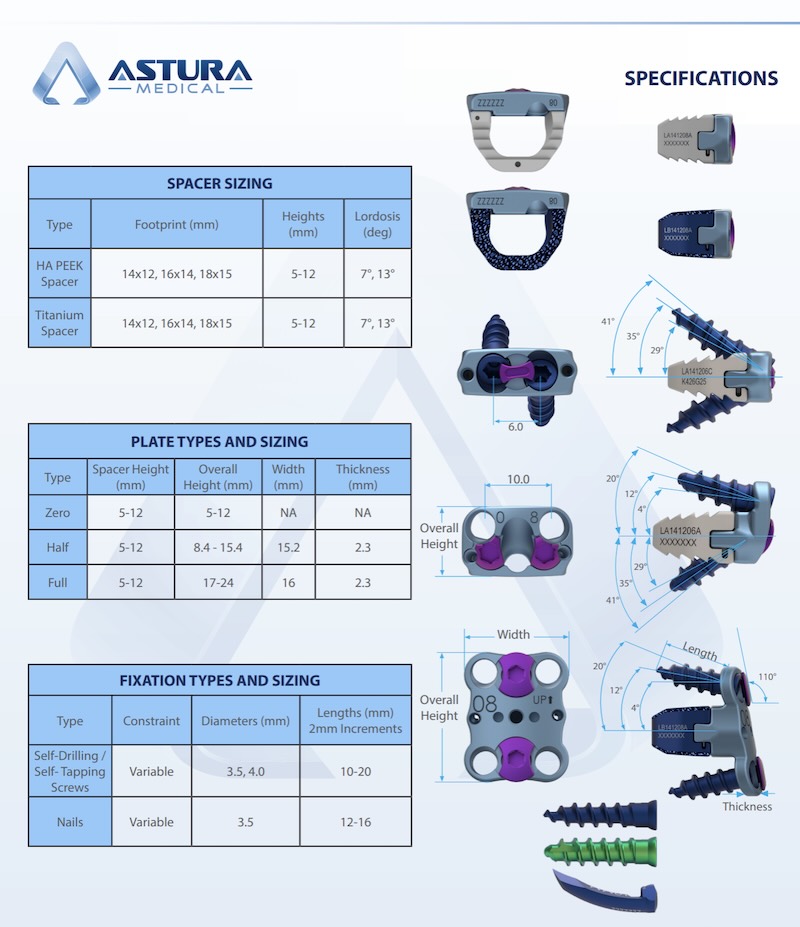

The Dolomite Stand alone ACDF cervical system by Astura Medical is a system that provides a range of fixation options for anterior plating. It features a modular system of the core (using either HA PEEK or etched titanium) along with Plating options: Zero-profile, half plate (3 hole), full pate(4 hole)

Features:

  • Spacer material options:
    • HA (hydroxyapatite) PEEK
    • Acid etched titanium
  • Plate Options:
    • Zero-profile (2-hole)
    • Half-plate (3-hole)
    • Full-plate (4-hole)
  • Footrpint options:
    • 14x12mm
    • 16x14mm
    • 18x15mm
  • Lordosis options:
    • 7 degree
    • 13 degree
  • Height options:
    • 5-12mm in 1mm increments
