dualX Slim Bi-Directional Expandable TLIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable , Bi-Directional Expansion

Expansion Type/Lordosis: Anterior Only Expansion

Cage Approach: Posterior/Straight (PLIF) Cage,Oblique Cages , Endoscopic Insertion

Configuration: Cage Alone

By Material: Titanium (Solid)

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative , MIS/Perc , Endoscopic

DESCRIPTION

The dualX Slim is a Bi-directional expandable interbody spacer with the smallest insertional footprint. The implant is intended to be inserted via a TLIF approach and expands in both horizontal and vertically with progressive lordosis of 8, 12, 15, and 18 degree.

Features:

  • Insertion via TLIF and provides ALIF size footprint.
  • Horizontal and vertical expansion
  • 10mm insertion width and expands up to 20mm fully expanded.
  • Titanium construction
  • Large central graft window for post-expansion graft insertion.

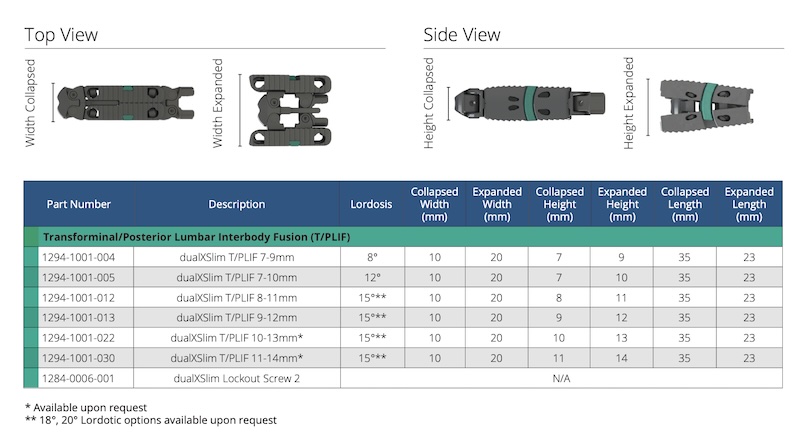

  • Footprint collapsed:
    • 10x35mm
  • Footprint expanded:
    • 20x23mm
  • Expansion height ranges:
    • 7-9mm, 8 degree lordosis
    • 7-10mm, 12 degree lordosis
    • 8-11mm, 15 degree lordosis
    • 9-12mm, 15 degree lordosis
    • 10-13mm, 15 degree lordosis
    • 11-14mm, 15 degree lordosis
  • Lordosis options:
    • 8 degree
    • 12 degree
    • 15 degree
    • 18 degree
    • 20 degree
