El Capitan ALIF Integrated Stand Alone Spacer

COMPANY: Astura Medical

MANUFACTURER INFO:El Capitan Stand Alone ALIF

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws) , Low profile plate attached

By Material: PEEK Solid block , Titanium (Solid) , Titanium etched , HA (Hydroxyapatite) Coated

Cage Material: Titanium Solid (etched surface) , HA Coated (Hydroxyapatite)

Plate Location: Thoracic/lumbar

Plate Approach: Anterior Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative

DESCRIPTION

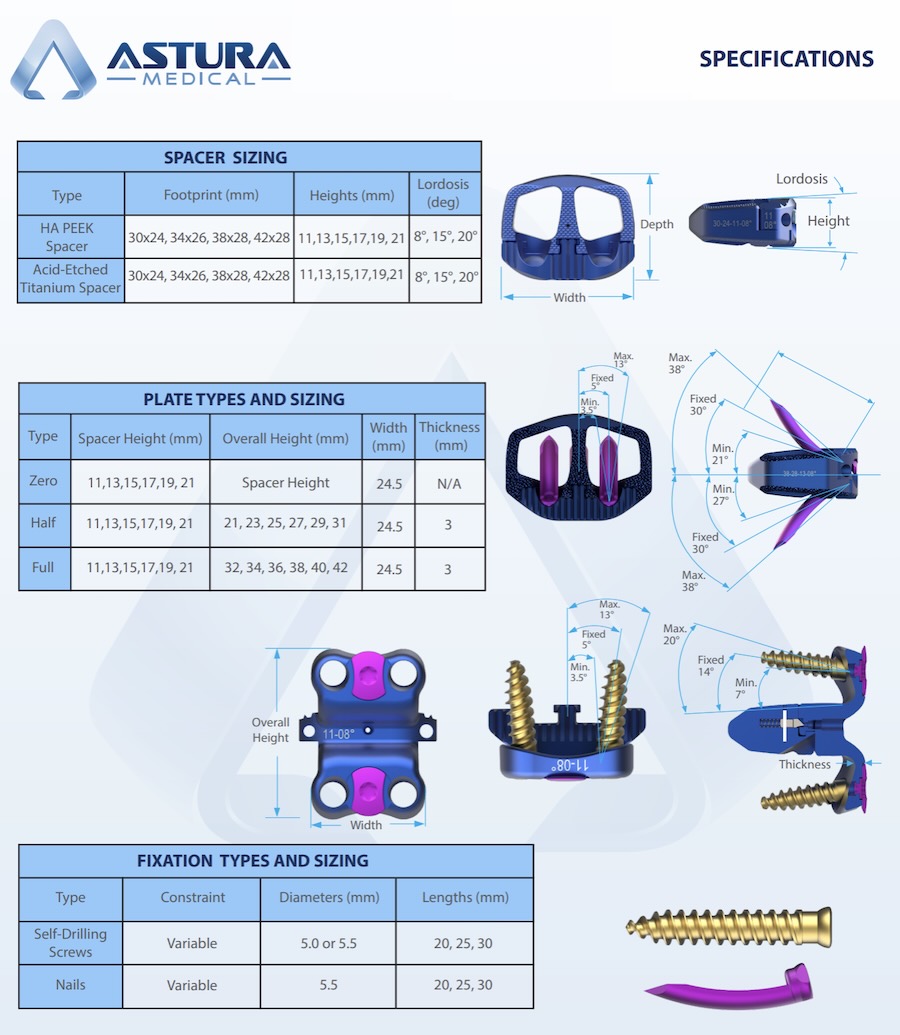

The El Capitan is a stand alone ALIF spacer with integrated plate options and screw fixation. The spacer comes as 2 options, HA integrated PEEK, and acid-etched titanium. The plate comes as a variety of zero-profile, half and full plate

Features:

  • Material options:
    • Acid-etched Titanium
    • HA (hydroxyapatite) integrated PEEK
  • Plate options:
    • Zero-profile: 3 screw or MIS nail
    • Half-plate: 3 screws
    • Full plate: 4 screws
  • Footprint options:
    • 30x24mm
    • 34x26mm
    • 38x28mm
    • 42x28mm
  • Lordosis options:
    • 8 degree
    • 15 degree
    • 20 degree
  • Height options:
    • 11-21mm in 2mm increments
