ELSA -ATP Anterior To Psoas Expandable Lumbar Interbody Spacer

COMPANY: Globus Medical

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis) , Parallel Expansion (Progressive Lordosis)

Cage Approach: Oblique (ATP: Anterior-To-Psoas) , Lateral

Configuration: 0-Profile (Integrated screws)

By Material: Titanium (Solid)

By Location/Approach: Lateral Lumbar , Oblique Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

DESCRIPTION

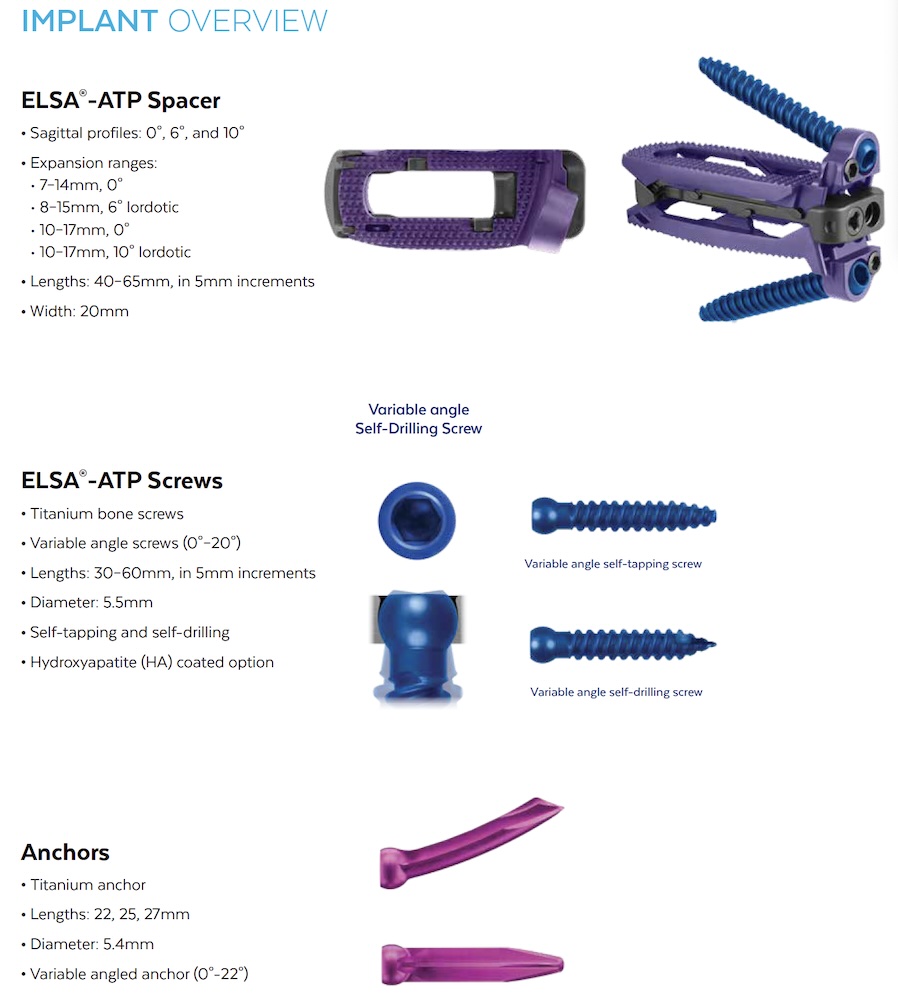

The ELSA-ATP is an integrated screw fixation expandable lateral interbody spacer for use in the Anterior-to-psoas (ATP) approach designed to help alleviate challenges associated with the iliac crest when approaching L4-5 in a lateral approach. The spacer features an angulated location of the screw fixation to accommodate the variation in approach angle.

Features:

  • Titanium construction
  • Large graft volume window
  • Up to 7mm expansion
  • Anterio-lateral angled fixation
  • Locking screw fixation
  • Width features:
    • 20mm
  • Lordosis options:
    • 0 degree
    • 6 degree
    • 10 degree
  • Expansion ranges:
    • 7-14mm
    • 8-15mm
    • 10-17mm
  • Length options:
    • 40-65mm in 5mm increments
