KONG -TL Carbon Fiber/PEEK VBR Expandable Corpectomy Cage

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Corpectomy Cage/Thoracic,Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis)

Cage Approach: Anterior , Oblique (ATP: Anterior-To-Psoas) , Lateral

Configuration: Cage Alone

Cage Material: Titanium Coated PEEK , CFR-PEEK (Carbon-Fiber Reinforced PEEK)

By Material: Titanium Coated CFR-PEEK (Carbon-Fiber Reinforced PEEK) , Carbon Fiber

By Location/Approach: Anterior/Lateral Thoracic , Anterior Lumbar , Lateral Lumbar , Oblique Lumbar , Lateral (MIS) Sacral

By Procedure Type: Thoraco-lumbar Corpectomy

By System Type: Deformity , Oncology

DESCRIPTION

The KONG -TL VBR System by icotec Medical is an expandable corpectomy spacer composed of radiolucent carbon fiber and PEEK materail that features titanium coated endplates for increased bony integration. The KONG -TL is intended for use in the thoracolumbar spine and features modular endplates of various sizes, shapes and lordosis options. Endplates are secured via a carbon-fiber/PEEK screw

Features:

  • Composed of radiolucent carbon fiber/PEEK material
  • Coated with Ti-iT titanium coating to increase bony adhesion to the enplates surface.
  • Indicated for use in tumor cases of the spine

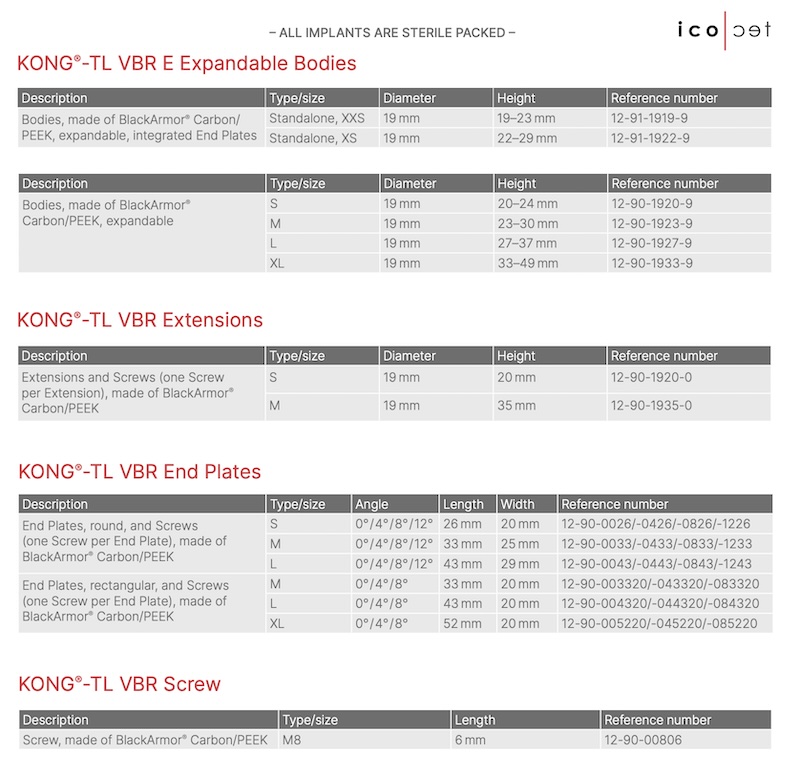

  • Core Diameter:
    • 19mm
  • Expansion Rages:
    • Small: 20-24,,
    • Medium: 23-30mm
    • Large: 27-37mm
    • XLarge: 33-49mm
  • Optional Modular extensions:
    • 20mm
    • 35mm
  • Endplate options:
    • Oval endplate:
      • Footprint options:
        • 20x26mm
        • 25x33mm
        • 29x43mm
      • Lordosis options:
        • 0 degree
        • 4 degree
        • 8 degree
        • 12 degree
    • Rectangular endplate:
      • Footprint options:
        • 20x33mm
        • 20x43mm
        • 20x52mm
      • Lordosis options:
        • 0 degree
        • 4 degree
        • 8 degree
