WaveForm C 3D Printed Titanium ACDF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: Cage Alone , Low profile plate attached

By Material: 3D Printed Titanium

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity

DESCRIPTION

The Waveform C is a 3D printed titanium ACDF spacer for use with the Shoreline TruProfile Anterior cervical plate.

Features:

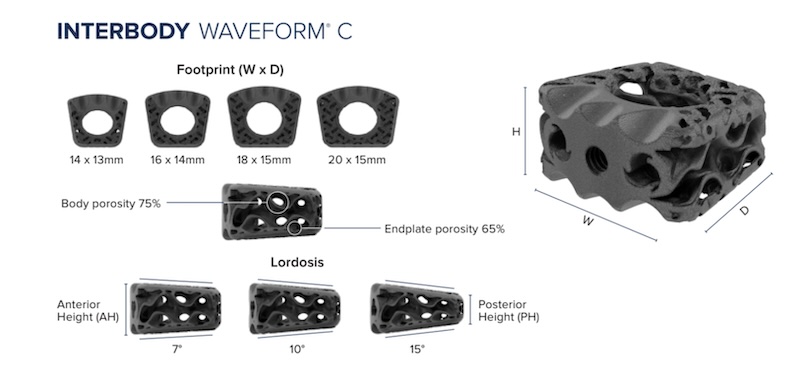

  • 3D printed titanium with waveform technology
  • 65% endplate porosity and 75% body porosity
  • Footprint options:
    • 13x14mm
    • 14x16mm
    • 15x18mm
    • 15x20mm
  • Lordosis options:
    • 7, 10, 15 degree
  • Height options:
    • 5-11mm in 1mm increments
