Pylon Expandable 3D Titanium PLIF/TLIF Spacer

COMPANY: Neuro Structures / NuGen

MANUFACTURER INFO: Pylon Expandable 3D Ti PLIF & TLIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis) , Anterior Only Expansion , Parallel Expansion (Progressive Lordosis)

Cage Approach: Posterior/Straight (PLIF) Cage,Oblique Cages

Configuration: Cage Alone

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative , Deformity , MIS/Perc

DESCRIPTION

The Pylon expandable cage by NeuroStructures/NuGen was created to provide anterior, parallel, and posterior expansion of the upper and lower plates, that can address even the most difficult pathologies in PLIF and TLIF procedures. The spacer is made of titanium alloy with 3D printed textured titanium endplates, to promote immediate mechanical fixation and progressive bony ingrowth. The low profile bulleted design minimizes neural retraction and force of impaction, and preserves endplate integrity.

Features:

  • 3D printed textured titanium endplates
  • In-situ anterior, parallel, and posterior expansion of the upper and lower plates
  • Parallel expansion up to 5mm

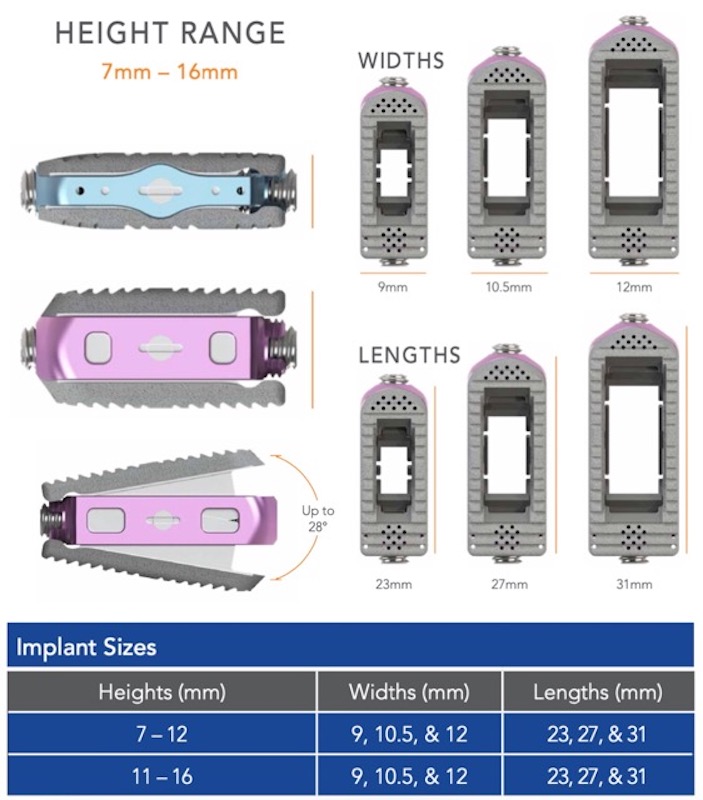

  • Footprint options:
    • Widths
      • 9 mm
      • 10.5 mm
      • 12 mm
    • Lengths
      • 23 mm
      • 27 mm
      • 31 mm
  • Height options:
    • 7-16 mm
  • Lordosis options: (For cages with fixed lordosis and parallel expansion)
  • Lordosis options: (For cages with anterior expansion I.e. progressive lordosis)
    • 0-28 degrees
