Simplicity HP Anterior Cervical Plate

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity , Trauma

By Material: Titanium (Solid)

DESCRIPTION

The Simplicity HP Anterior Cervical Plate by Precision Spine is a stand alone plate with high angulation of screws at the superior and inferior end of the plate. The plate features a locking screw cam to prevent back out and is available in 1 to 4 level plates

Features:

  • Titanium construction
  • Width: 16.5mm
  • Thickness: 2mm
  • 26 degrees total screw angulation
  • Fixed and variable angle screws
  • 4 and 4.5mm diameter screws using T10 hexalope

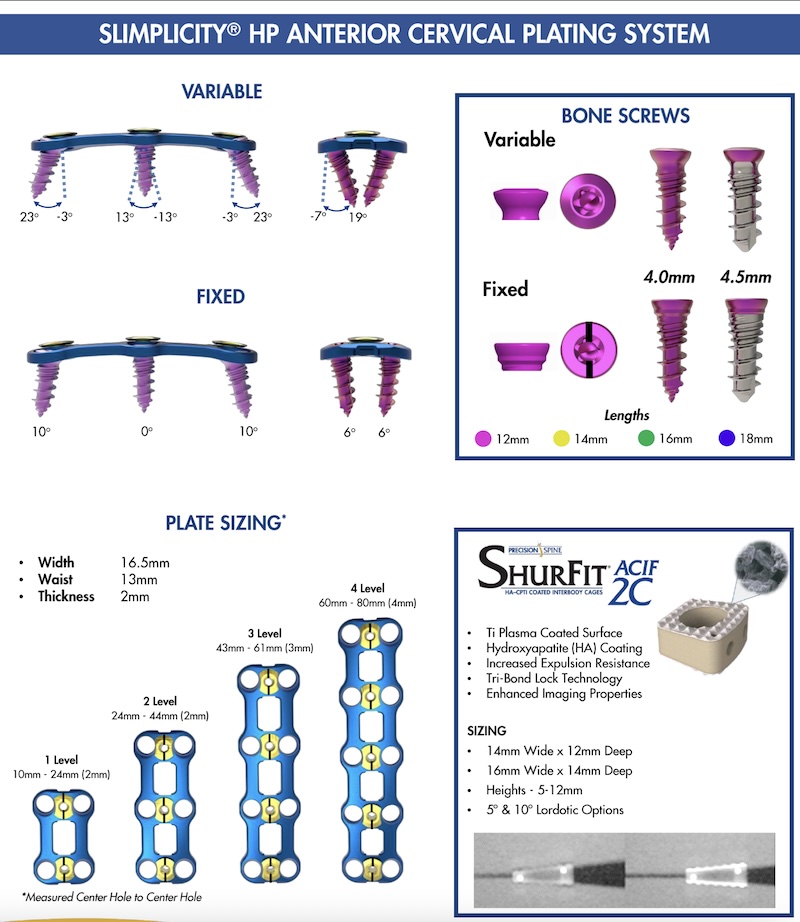

  • Plate options:
    • 1 level: 10-24mm
    • 2 level: 24-44mm
    • 3 level: 43-61mm
    • 4 level: 60-80mm

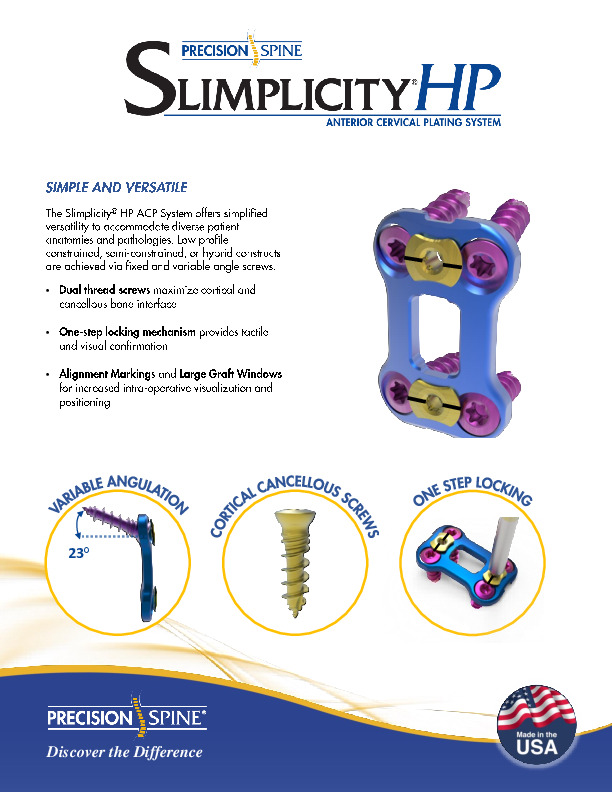

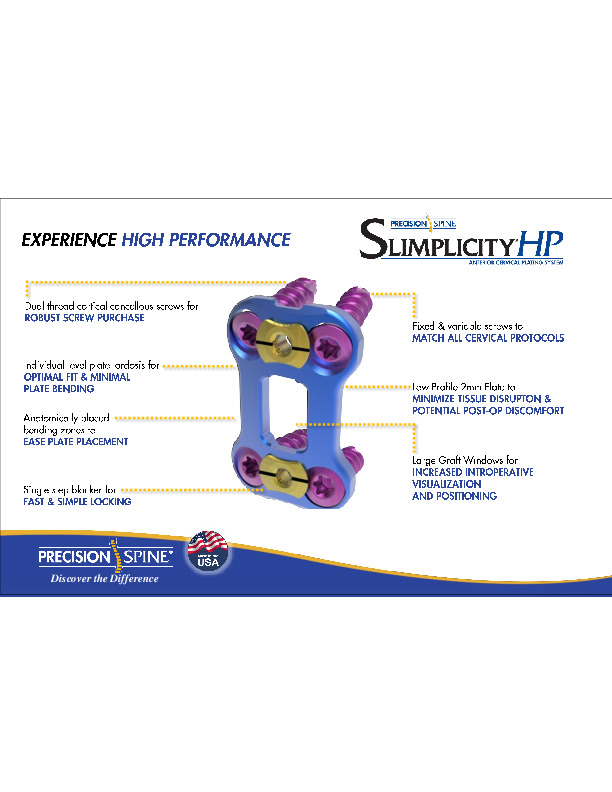

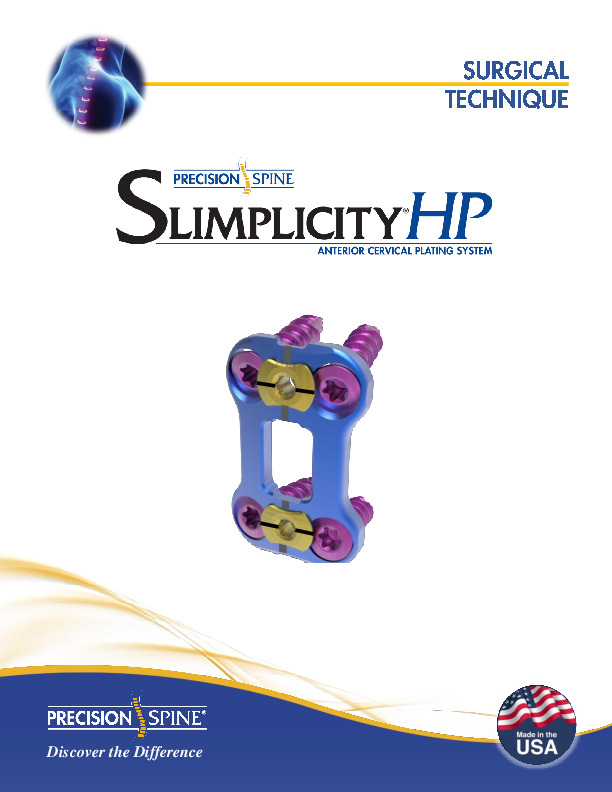

Product Brochures and Guides
