Tomcat Stand-Alone HA Integrated PEEK ACDF Spacer

COMPANY: Choice Spine

MANUFACTURER INFO:Tomcat Standalone ACDF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage

Plate Location: Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws) , Low profile plate attached

By Material: PEEK Solid block , PEEK/Titanium , HA (Hydroxyapatite) Coated

Plate Approach: Anterior Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , MIS/Perc

Cage Material: HA (Hydroxyapatite) Integrated PEEK

DESCRIPTION

The Tomcat Stand-Alone Cervical Spinal System by Choice Spine is an integrated zero-profile or minimal-profile plate & screw fixation system for the ACDF procedure. the Spacer is composed of HA (Hydroxyapatite) integrated (not-coated) PEEK that is joined to an anterior screw-retention plate with automatic locking screw retention rings. The construct comes as a true zero-profile implant of a Hybrid implant with fixation directly to the front of the vertebral body.

Features:



  • HA integrated PEEK spacer
  • Anterior plate available as standard zero-profile or Hybrid anterior plate
  • Self-locking screw mechanism

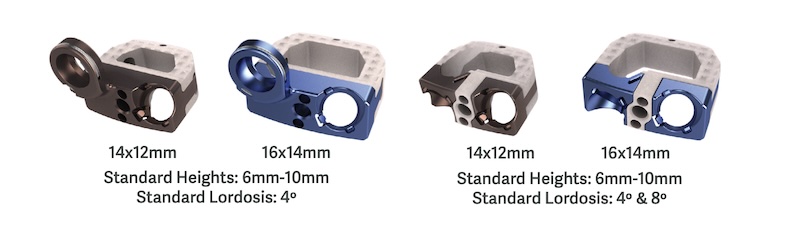

  • Footprint options: WxD
    • 14x12mm
    • 16x14mm
  • Lordosis options:
    • 4 degree
    • 8 degree (0-profile spacer only)
  • Height options:
    • 6-10mm

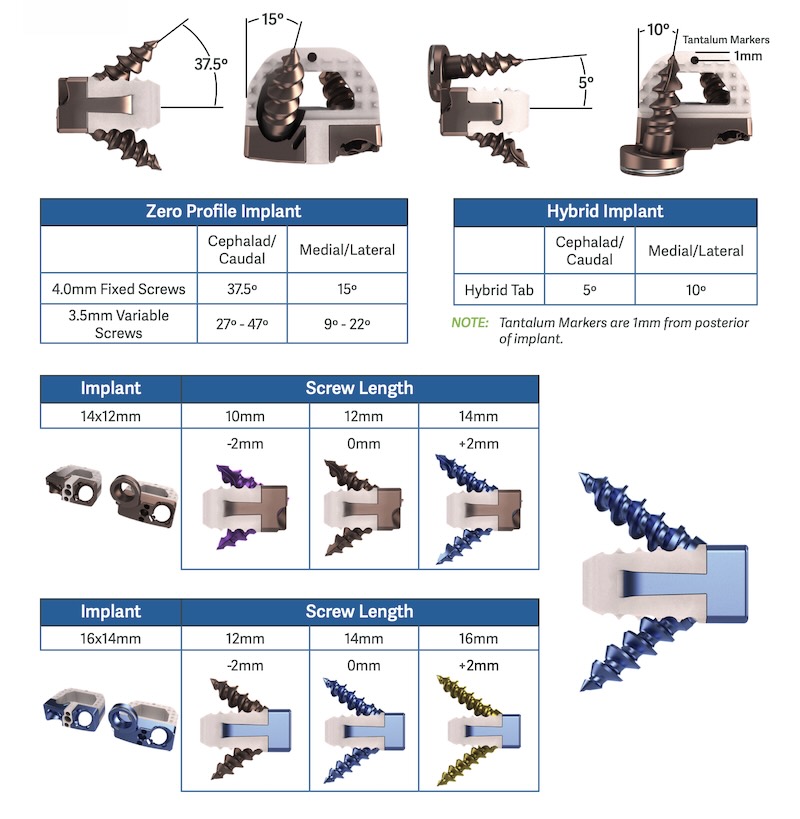

  • Screw options:
    • 3.5mm
    • 4mm
