Product Category: Spinal Implants
By Product Type: Interbody Device , Plates
Cage Type: Interbody Cage/Lumbar
Expansion: Expandable
Expansion Type/Lordosis: Anterior Only Expansion
Cage Approach: Lateral
Configuration: Low profile plate attached
By Material: Titanium (Solid)
Plate Location: Thoracic/lumbar
Plate Approach: Lateral Plate
Plate Dynamics: Static Plate
By Location/Approach: Lateral Lumbar
By Procedure Type: XLIF/DLIF/LLIF/OLIF
By System Type: Degenerative , Deformity

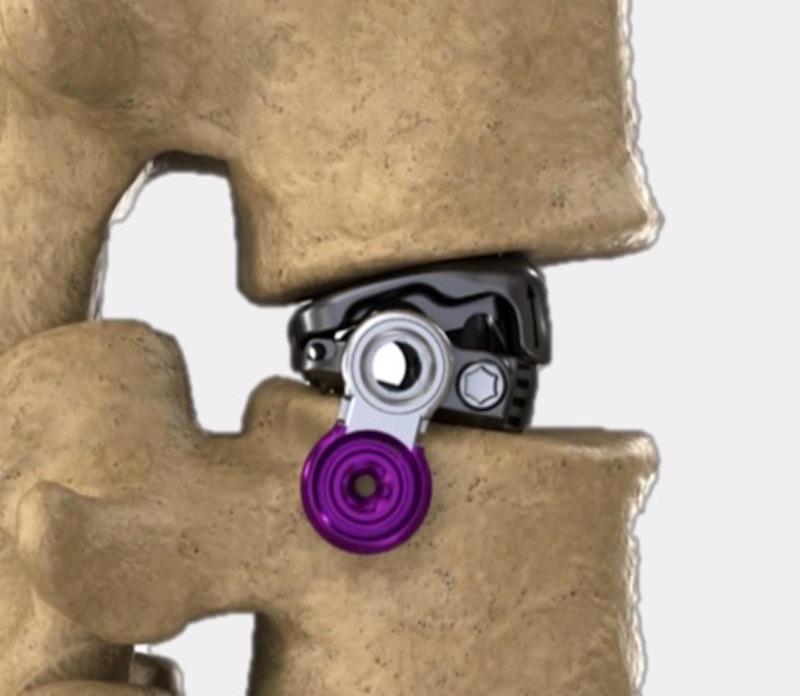

The XLX ACR is a titanium expandable lumbar interbody implant, inserted via XLIF access and approach.

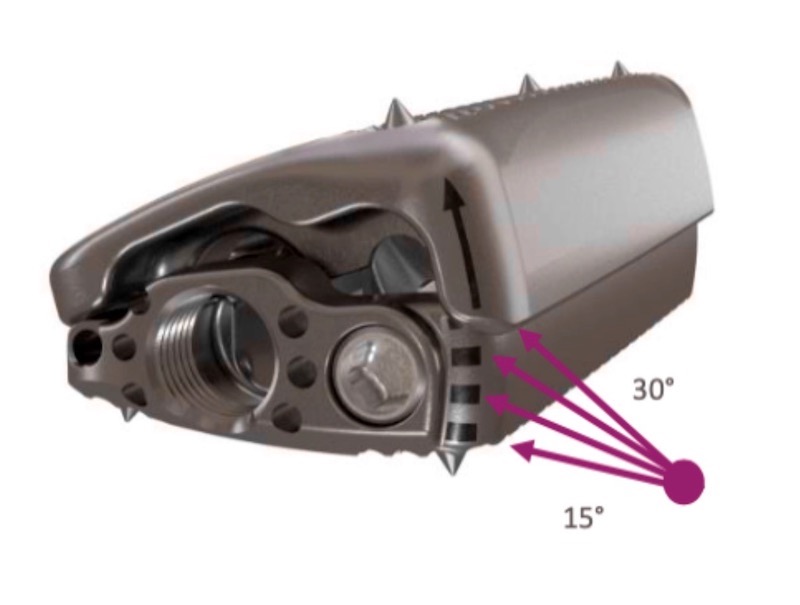

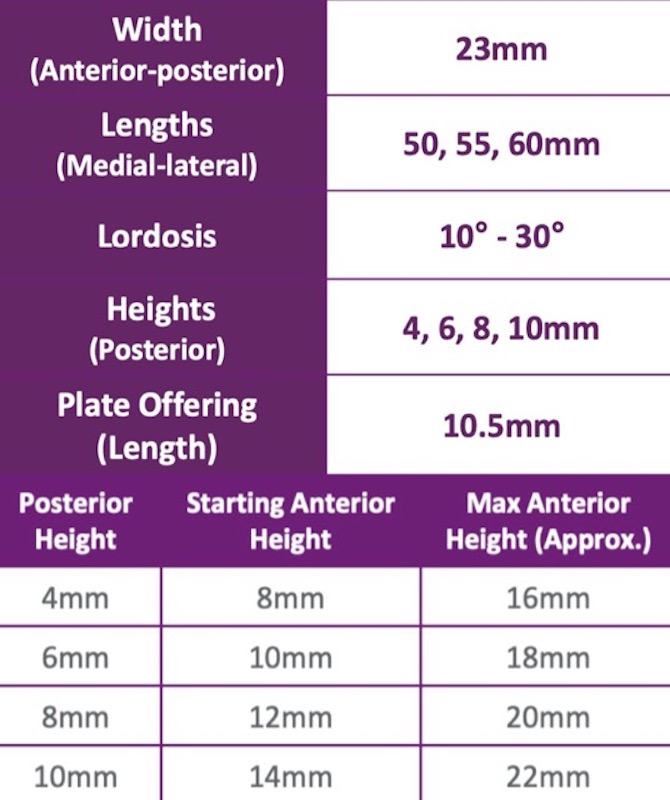

Lordosis:
- 10-30 degrees
Width (A-P):
- 23 mm
Lengths:
- 50, 55, 60 mm
Heights (Posterior):
- 4, 6, 8, 10 mm
Heights (Anterior):
- 8 - 22 mm
Plate Length:
- 10.5 mm
If the ALL is resected and/or using an implant expanded to ≥20° lordosis, XLX ACR fixation plate must be used in addition to supplemental fixation.
COMPANY: J&J MedTech (DePuy Synthes)
