Zevo Anterior Cervical Plating System

COMPANY: Medtronic

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative

By Material: Titanium (Solid)

DESCRIPTION

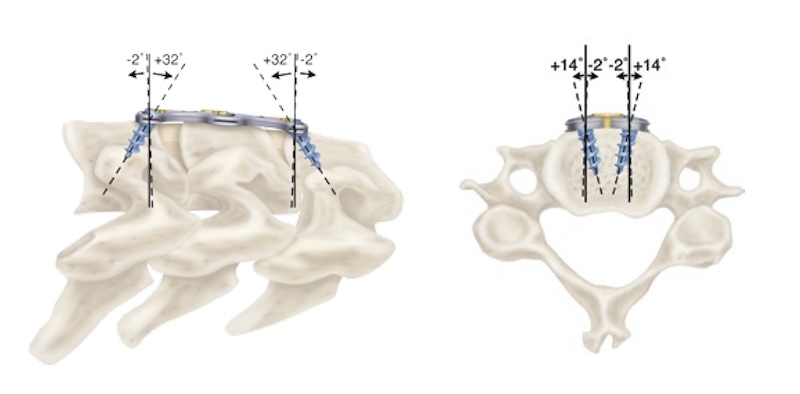

The Zevo is an Anterior cervical plate fixation system by Medtronic that utilizes a locking screw system with a high angle at the superior and inferior ends designed to minimize plate extension to decrease risk of adjacent segment disease. If features a 35 degree angulation at the superior and inferior screw holes.

Features:


  • 1 to 5 level plates
  • 1.9mm thick for 1-3 level plates
  • 2.1mm thick for 4 and 5 level

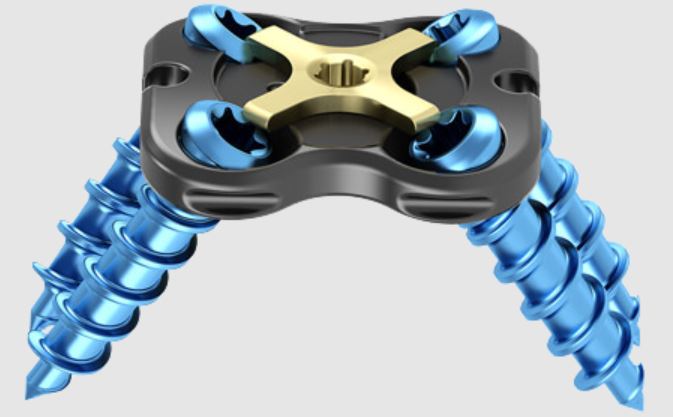

  • Rotational screw lock
  • Lengths:
    • 1 level: 15-29mm
    • 2 level: 27-51mm
    • 3 level: 43-71mm
    • 4 level: 65-89mm
    • 5 level: 77-108mm
