ADDplus VBR Expandable Anterior Thoracolumbar Vertebral Body Replacement with Fixation

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Corpectomy Cage/Thoracic,Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis)

Cage Approach: Anterior

Configuration: Low profile plate attached

By Material: Titanium (Solid)

By Location/Approach: Anterior/Lateral Thoracic , Anterior Lumbar

By Procedure Type: Thoraco-lumbar Corpectomy

By System Type: Degenerative , Deformity , Trauma

DESCRIPTION

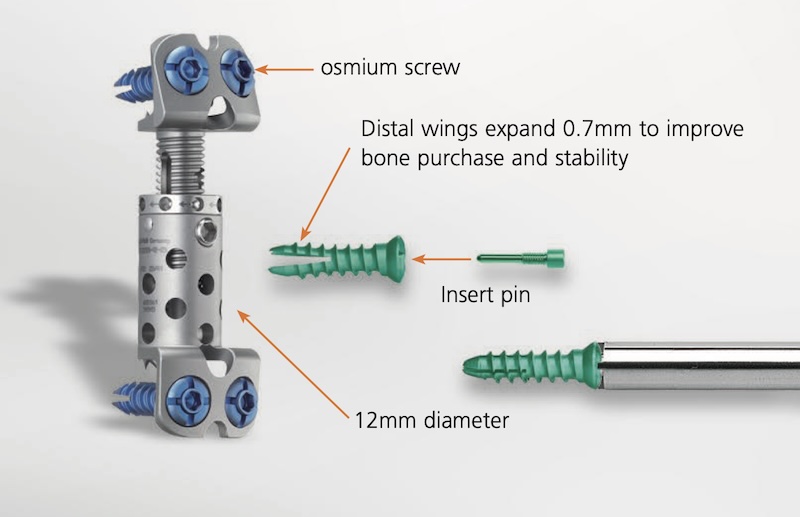

ADDplus by Ulrich Medical USA is a titanium alloy expandable vertebral body replacement implant used for surgical reconstruction of defects of the anterior thoracolumbar spine T1-L5. It is designed with integrated low profile superior and inferior plates for increased stability, and anchored with unique osmium screw technology to provide optimal stabilization. The distal wings of the screw expand 0.7 mm to improve bone purchase and stability once the pin is inserted. Continuous frictionless expansion in situ uses gear driven technology, allowing for easy placement and bridging of the defect. Intended for use with supplemental fixation.

Features:


  • Integrated 2.5 mm low profile plate
  • Continuous frictionless expansion in situ
  • 4.0 and 5.0 mm diameter osmium screws
  • Core diameter:
    • 12 mm

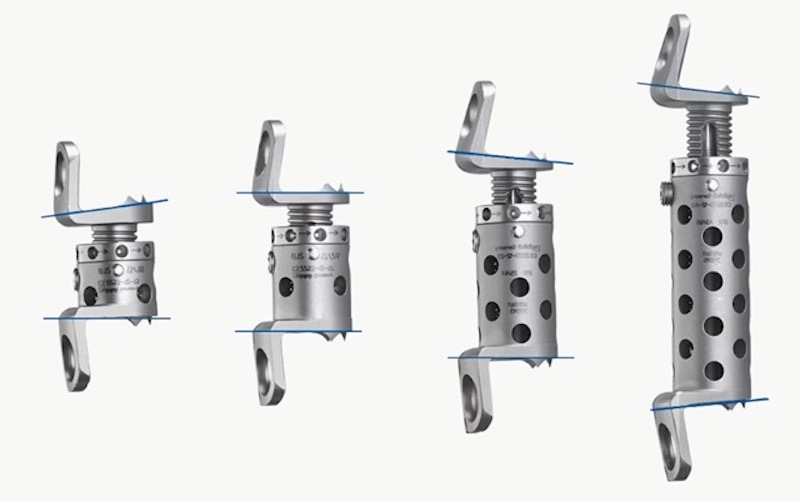

  • Height expansion ranges:
    • 13-18mm
    • 17-26mm
    • 25-41mm
    • 40-65mm
  • Lordosis options:
    • 0 degree
    • 6 degree
    • 12 degree
    • 18 degree

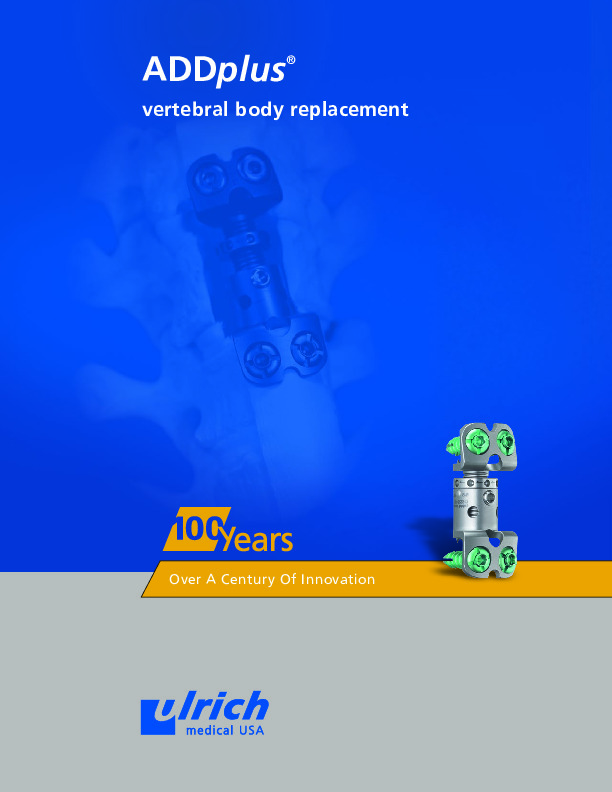

Product Brochures and Guides
