Anterior Spine Truss ALIF 3D Titanium Spacer

COMPANY: 4WEB

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior , Oblique (ATP: Anterior-To-Psoas)

Configuration: Cage Alone

By Material: Titanium (Solid) , 3D Printed Titanium , Titanium Plasma Sprayed

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

The Anterior Spine Truss System (ASTS) is a 3D printed titanium ALIF spacer with plasma sprayed titanium coating. It features an open truss architecture for optimal load distribution and a biconvex endplates for optimal bony apposition.

Features:

  • 3D printed titanium with plasma sprayed coating for bony adhesion
  • Open architecture for maximal graft packing
  • May be placed ALIF Anterior or oblique
  • Footprint options:
    • 21x32mm
    • 24x36mm
    • 27x40mm

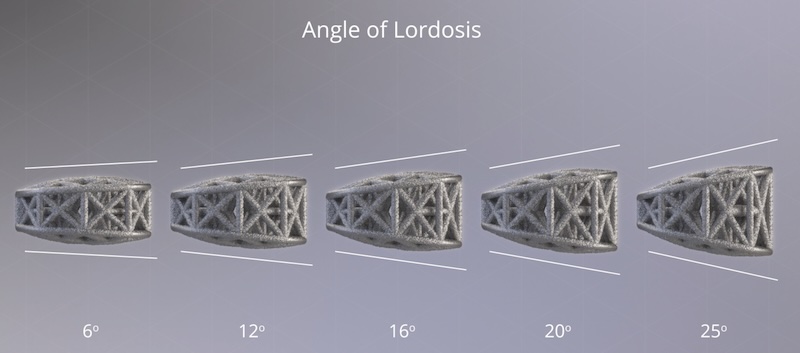

  • Lordosis options:
    • 6 degree
    • 12 degree
    • 16 degree
    • 20 degree
    • 25 degree
  • Height options:
    • 8-18mm

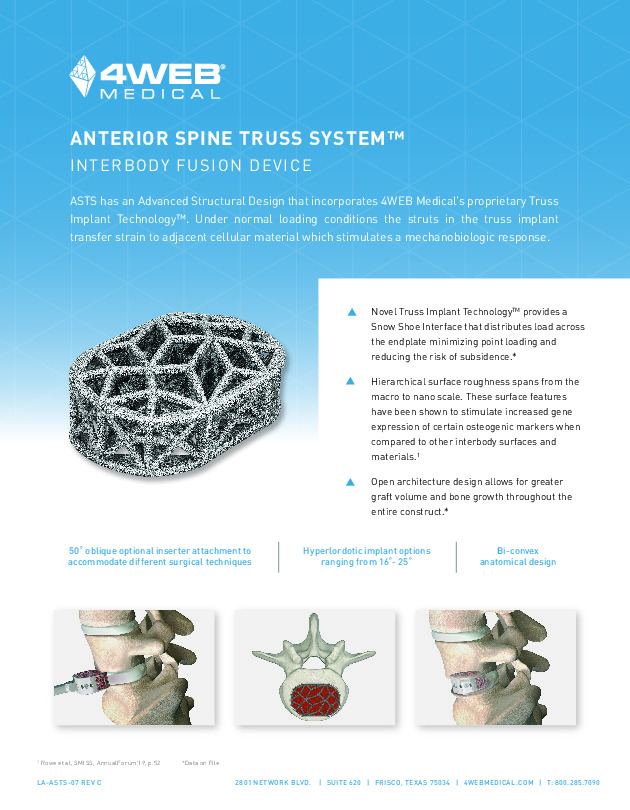

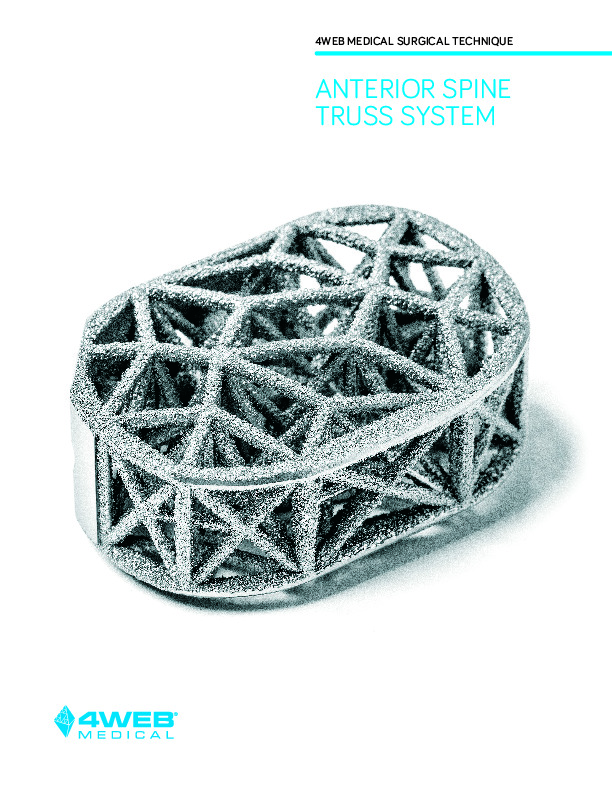

Product Brochures and Guides

Product brochures and guides are available to verified surgeons. Log in or register to access.
