Arco-SA PEEK or Porous Titanium Stand-Alone ALIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: PEEK Solid block , Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

Arco-SA is a standalone zero-profile ALIF implant by NeuroStructures/NuGen that comes in anatomically shaped PEEK or porous titanium. The cage is designed with a large single central graft chamber as well as lateral side windows for additional bone growth in the axial plane, and the porous titanium is excellent at promoting long-term fixation with bone ingrowth. It is available in multiple footprints, lordosis, and heights, with three screw fixation each with variable angulation options and a simple active locking mechanism.

Features:

  • Radiolucent PEEK or porous titanium options
  • Large central lumen for graft
  • Zero-profile and standalone implant with integrated screw fixation

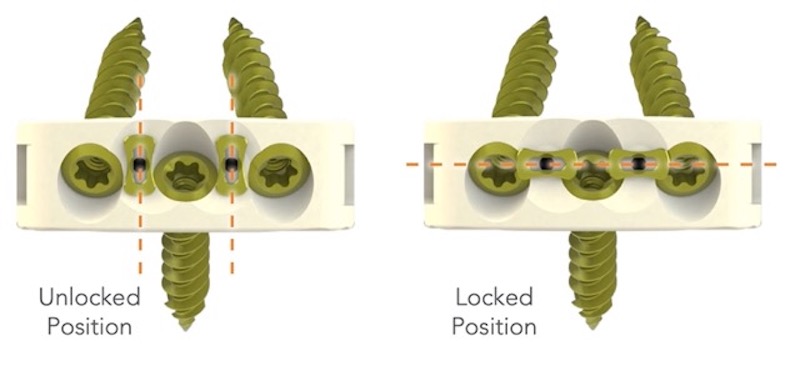

  • Three screw fixation with integrated locking mechanism
  • Side windows for additional bone growth in the axial plane

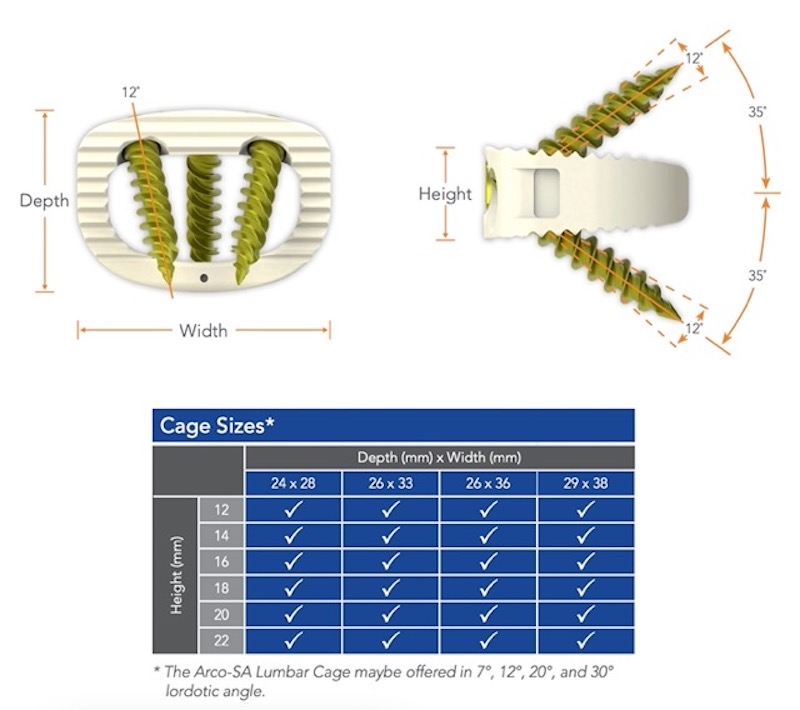

  • Footprint options (DxW):
    • 24 x 28 mm
    • 26 x 33 mm
    • 26 x 36 mm
    • 29 x 38 mm
  • Height options:
    • 12-22 mm (2mm increments)
  • Lordosis options:
    • 7 degree
    • 12 degree
    • 20 degree
    • 30 degree

Product Brochures and Guides
