ASCOT Anterior Cervical Plate

COMPANY: Signus

MANUFACTURER INFO:ASCOT Anterior Cervical Plate

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate , Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF , Cervical Corpectomy

By System Type: Degenerative , Deformity , Trauma , Oncology

By Material: Titanium (Solid)

DESCRIPTION

The ASCOT anterior cervical plate by Signus is made of biocompatible titanium alloy and designed for ventral stabilization of the cervical spine. The plate is low profile at 1.8 mm thick, has a pre-lordosed semi-rigid design with large angle variability, and has an efficient single step integrated locking mechanism. Screws are available in self-drilling, self-tapping, and variable- and fixed-angle options. Additionally, graft screws and connector screws can be inserted through the plate to attach to bone graft or interbody/VBR implant to ensure a secure construct.

Features:

  • Titanium alloy
  • Low profile 1.8 mm thick plate
  • Integrated locking mechanism
  • Plate options:
    • 1-4 segment plates
    • 20-100 mm length range
    • 17 mm width
  • Screw options:
    • Self-drilling, self-tapping, variable- and fixed-angle
    • 4.0-4.35 diameter
    • 12-18 mm length range
    • Bone graft screws and interbody/VBR connection screws available

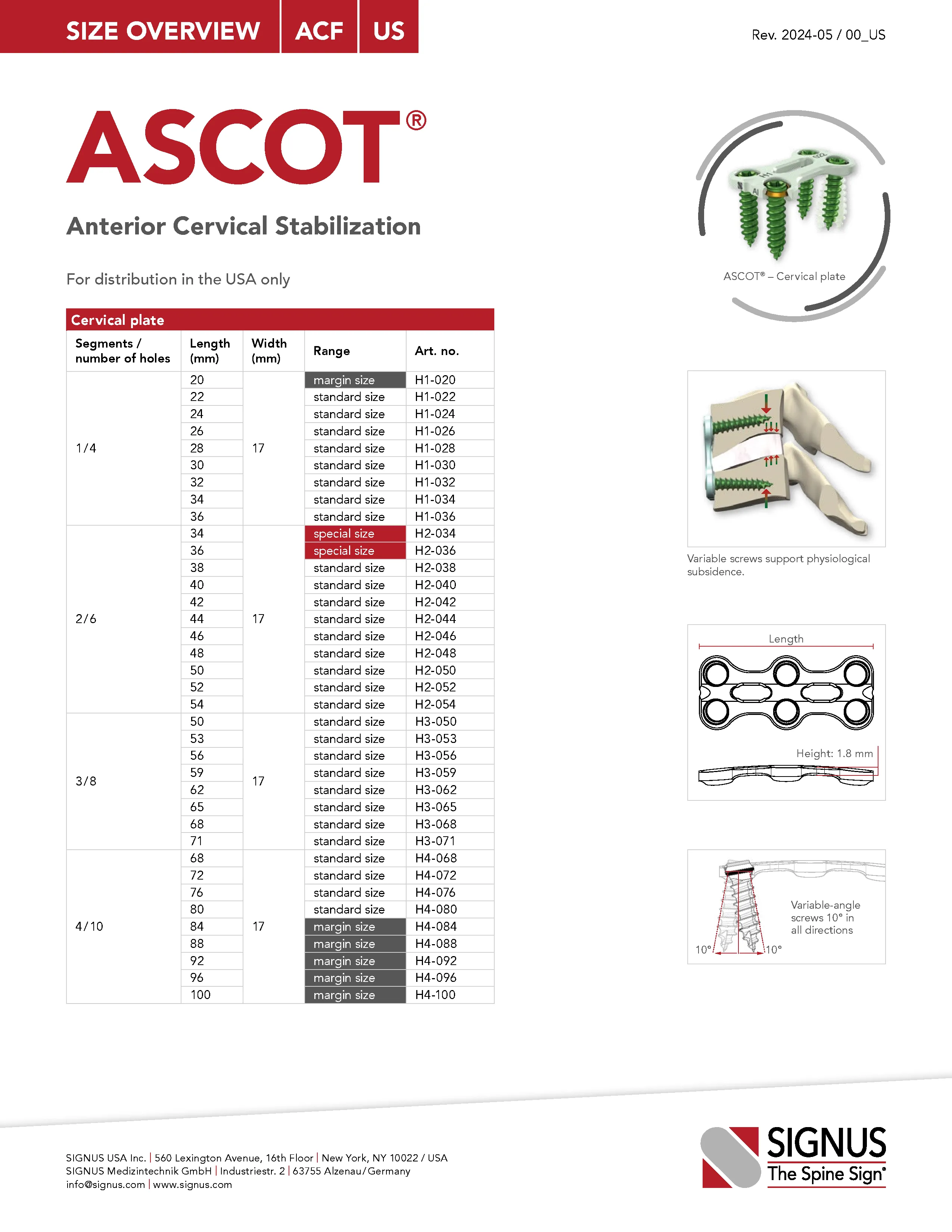

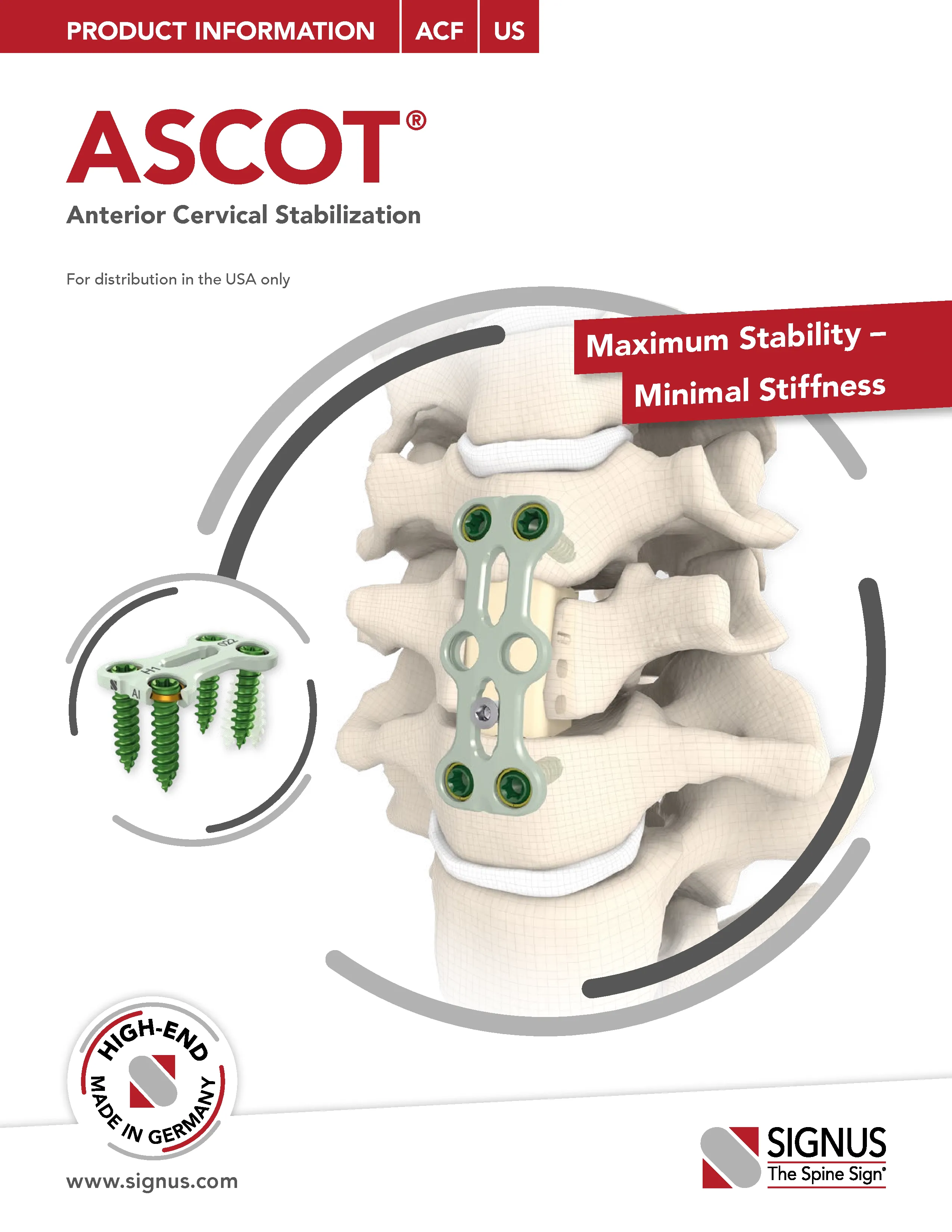

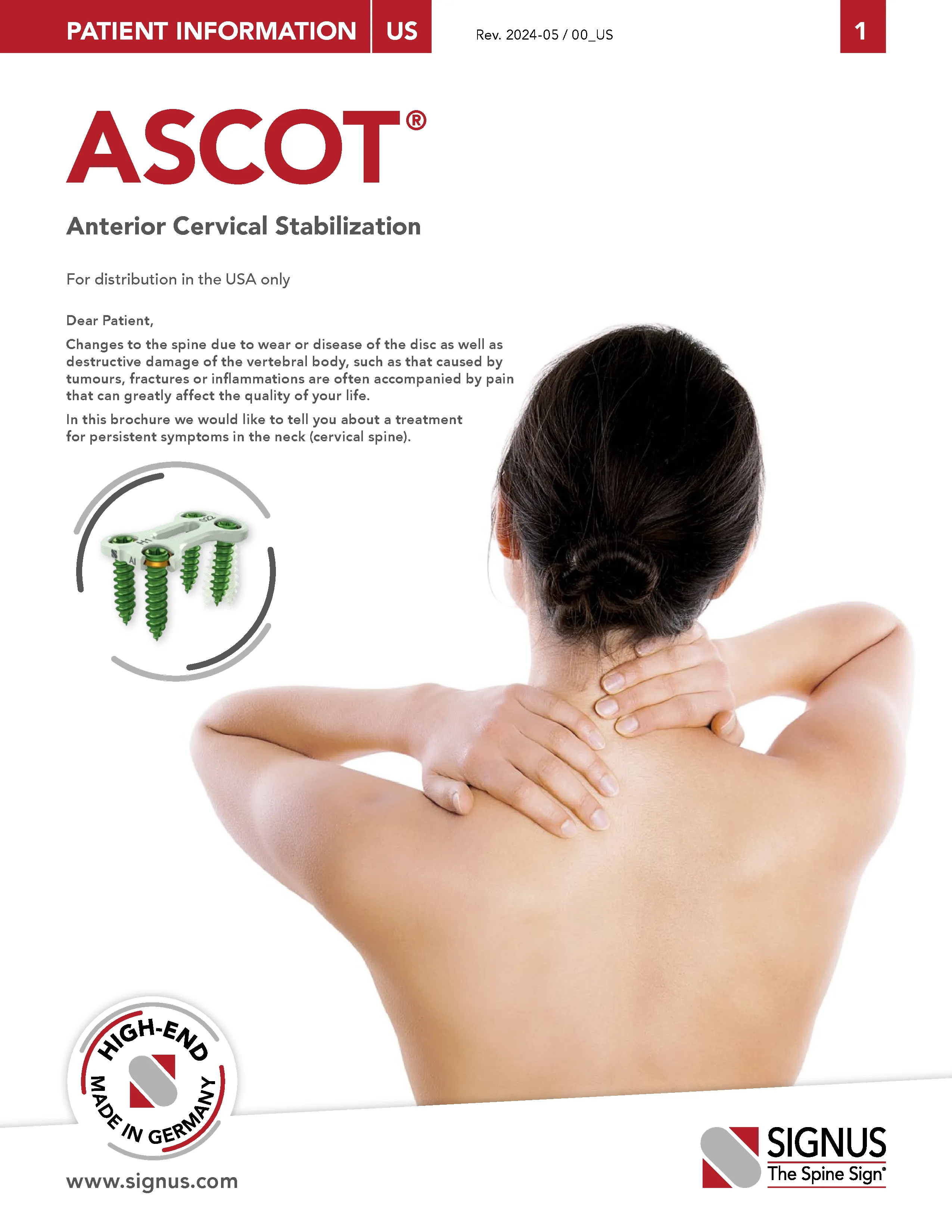

Product Brochures and Guides
