Brigade Lateral PEEK ALIF Interbody Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

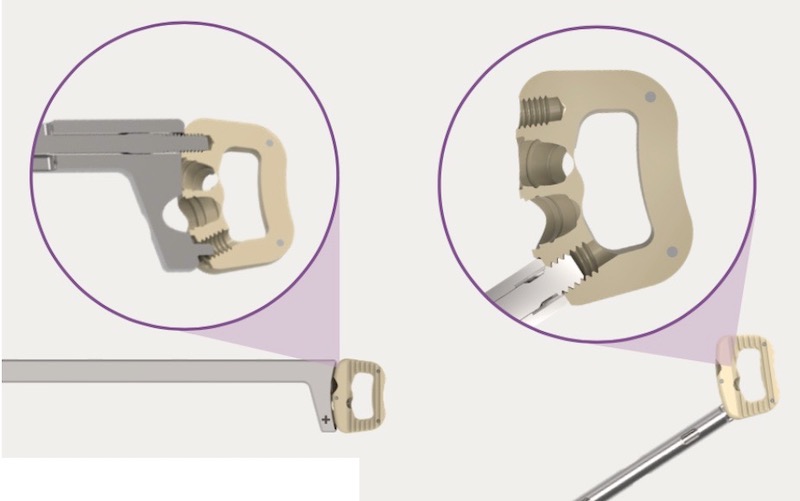

Cage Approach: Anterior , Lateral

Configuration: 0-Profile (Integrated screws)

By Material: PEEK Solid block

By Location/Approach: Anterior Lumbar , Lateral Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity

DESCRIPTION

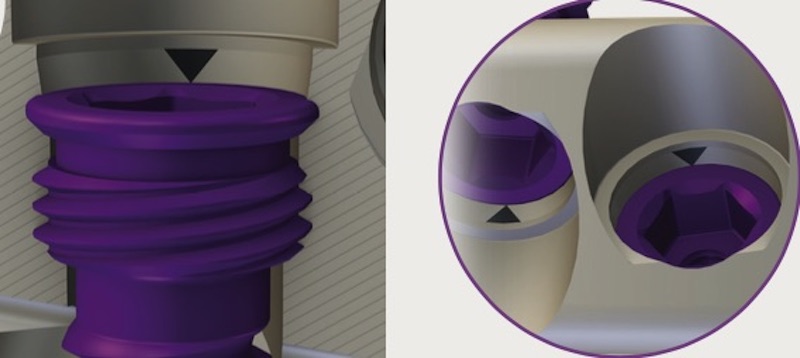

The Brigade Lateral PEEK interbody implant is designed for use in anterior or lateral lumbar approaches for anterior lumbar interbody fusion. As a no-profile intervertebral spacer utilizing integrated screws, proper screw locking is confirmed using the visual indicators. Complete the surgery with supplemental internal spinal fixation systems.


Features:

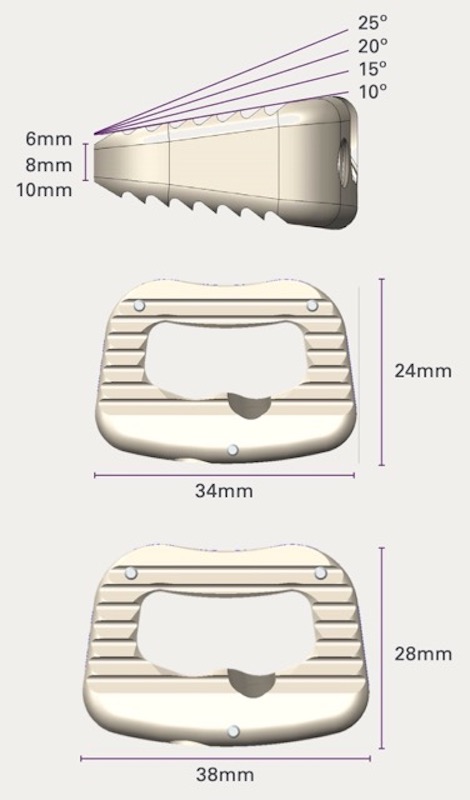

  • Footprints:
    • 34 x 24 mm
    • 38 x 28 mm
  • Height:
    • 6 mm
    • 8 mm
    • 10 mm
  • Lordosis:
    • 10 degree
    • 15 degree
    • 20 degree
    • 25 degree

Product Brochures and Guides
