Sagittae Lateral Lumbar Differential Expansion Spacer

COMPANY: ADCURA Spine

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Differential Expansion (Ant vs Post)

Cage Approach: Lateral

Configuration: Cage Alone

By Material: Titanium (Solid)

By Location/Approach: Lateral Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , MIS/Perc

Lateral Implant Width: 22mm

DESCRIPTION

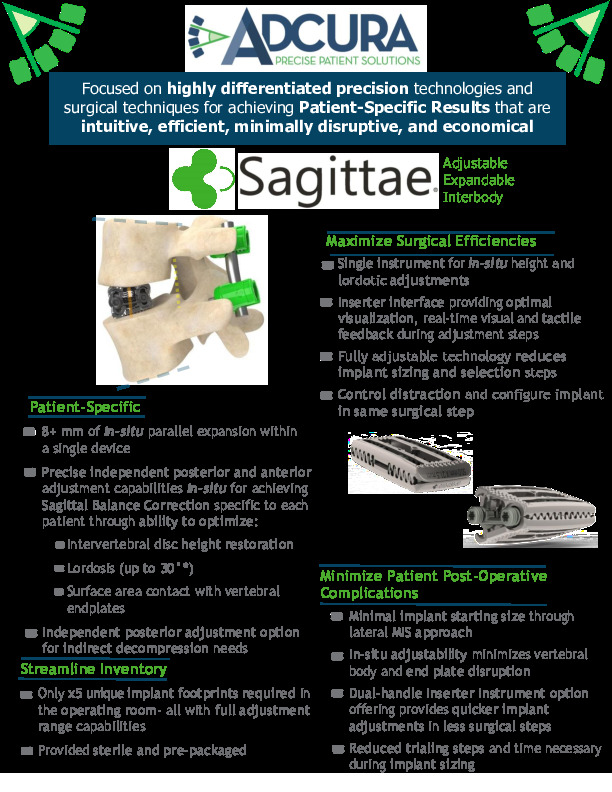

The Sagittae Adjustable Expandable Interbody by ADCURA Spine (Formerly SpineEX) is a lateral lumbar interbody spacer for use in a single or two level disc disease of the lumbar spine between L2 and S1. The Titanium device is made with two drive shafts to independently adjust the height of the anterior and posterior heights and thereby height and lordosis.

Features:



  • Titanium construction
  • Independent control of anterior and posterior heights with two control to maximize height restoration and endplate contact
  • 8mm of height expansion
  • up to 30 degree lordosis

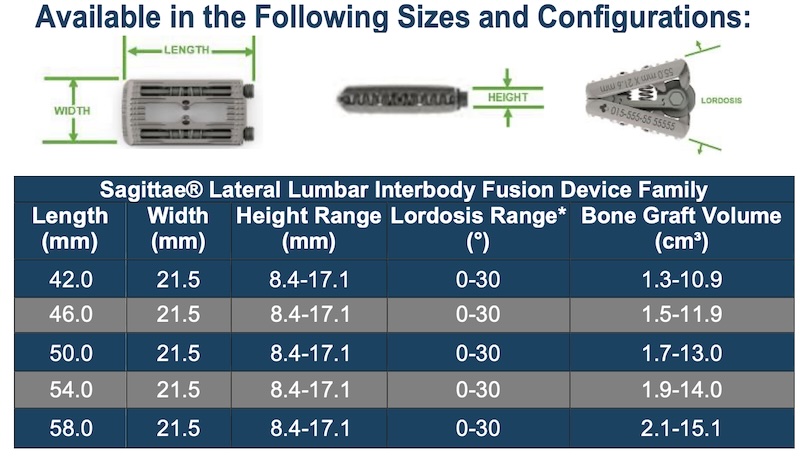

  • Width options:
    • 21.5mm
  • Length options:
    • 42, 46, 50, 54, 58mm
  • Height range:
    • 8.4-17.1mm
  • Lordosis range:
    • 0-30 degree



Product Brochures and Guides
