El Capital Oblique ALIF Spacer Standalone

COMPANY: Astura Medical

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Oblique (ATP: Anterior-To-Psoas)

Configuration: 0-Profile (Integrated screws) , Low profile plate attached

By Material: PEEK Solid block , Titanium (Solid) , Titanium etched , HA (Hydroxyapatite) Coated

Cage Material: Titanium Solid (etched surface) , HA Coated (Hydroxyapatite)

By Location/Approach: Oblique Lumbar

By Procedure Type: ALIF , XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity

DESCRIPTION

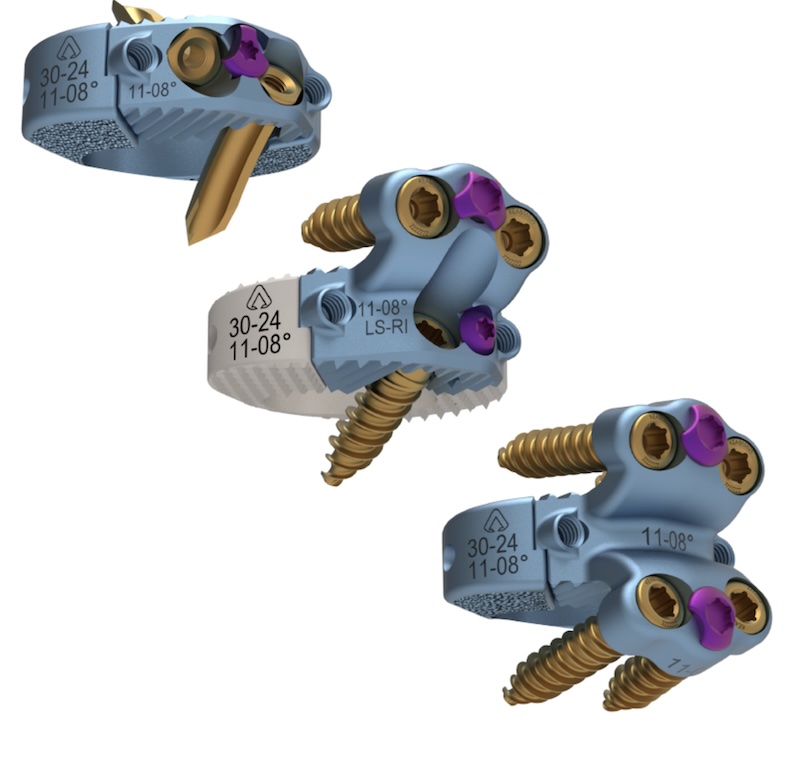

El Capitan Oblique ALIF standalone spacer by Astura Medical is a modular ALIF spacer for use in the oblique lumbar approach. It features a modular fixation and core with allows for optimal fixation to the vertebral body using either integrated fixation, or oblique plate fixation. The implant comes as either acid-etched titanium or HA (hydroxyapatite) integrated PEEK.

Features:

  • Implant Material options:
    • Acid-etched titanium
    • HA(Hydroxyapatite) integrated PEEK
  • Plate options:
    • Zero-profile (3 screw or nail)
    • Half-plate: (3 hole)
    • Full-plate: (4 hole)

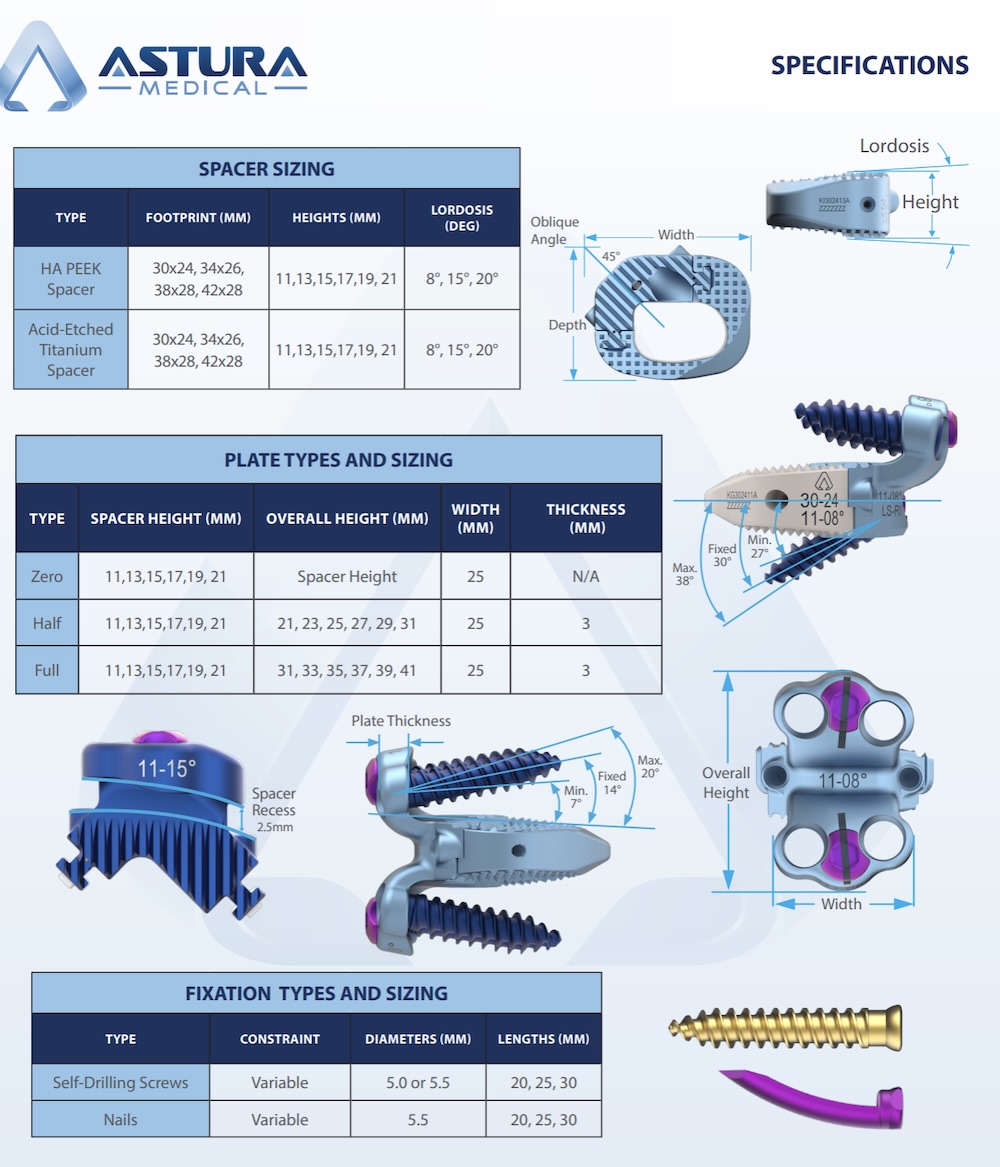

  • Footprint options:
    • 30x24mm
    • 34x26mm
    • 38x28mm
    • 42x28mm
  • Lordosis options:
    • 8 degree
    • 15 degree
    • 20 degree
  • Height options:
    • 11-21mm in 2 mm increments

Product Brochures and Guides
