Timberline PEEK Lateral DLIF LLIF Fusion System

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage/Thoracic,Lumbar

Expansion: Static

Cage Approach: Lateral

Configuration: Cage Alone , Low profile plate attached

By Material: PEEK Solid block

Plate Location: Thoracic/lumbar

Plate Approach: Lateral Plate

Plate Configuration: Stand-Alone Plate , Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior/Lateral Thoracic , Lateral Lumbar

By Procedure Type: XLIF/DLIF/LLIF/OLIF

By System Type: Degenerative , Deformity , MIS/Perc

Lateral Implant Width: 18mm , 22mm , 26mm

DESCRIPTION

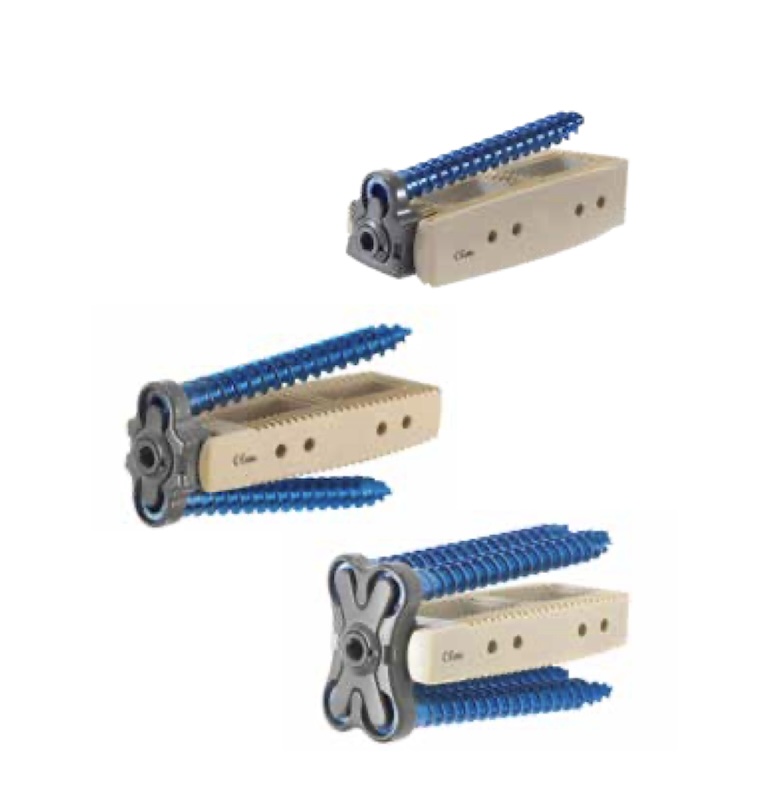

The Timberline Lateral fusion system is a PEEK interbody spacer with a variety of implant sizes and shapes to treat pathologies from thoracic to lumbar. Sold under Highridge Medical, it was originally sold under the Zimmer-Biomet name and spun off as ZimVie. The spacers are available alone or with an included plate featuring single, 2 and 4 hole plates.

Features:



  • Radiolucent PEEK
  • Multiple lordosis
  • Optional lateral fixated plate with 1, 2, and 4 holes
  • Coronal taper cages available as well 8 degree

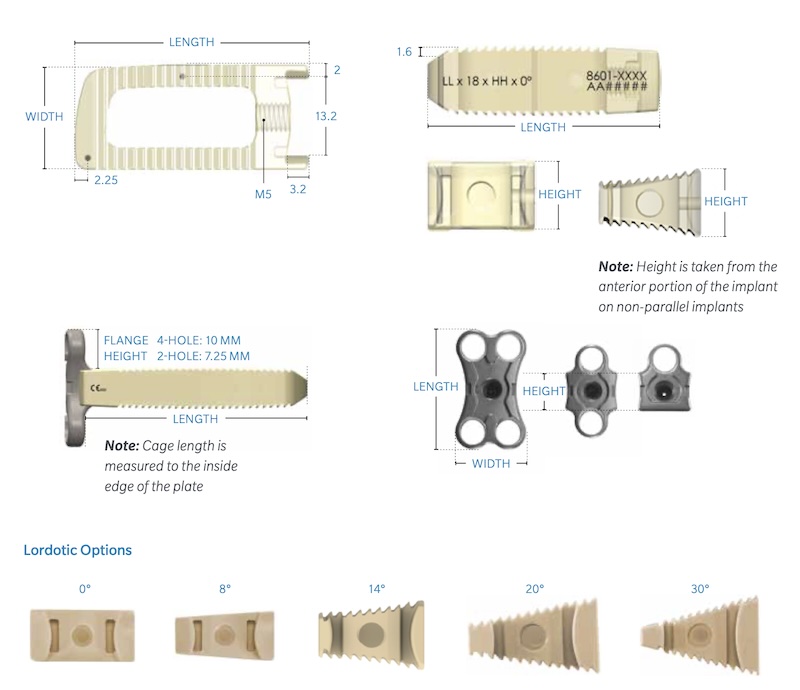

  • Width options:
    • 16mm
    • 18mm
    • 22mm
    • 26mm
  • Length options:
    • 25-60mm
  • Lordosis options:
    • 0 degree
    • 8 degree
    • 20 degree
    • 30 degree
  • Height options:
    • 6-16mm

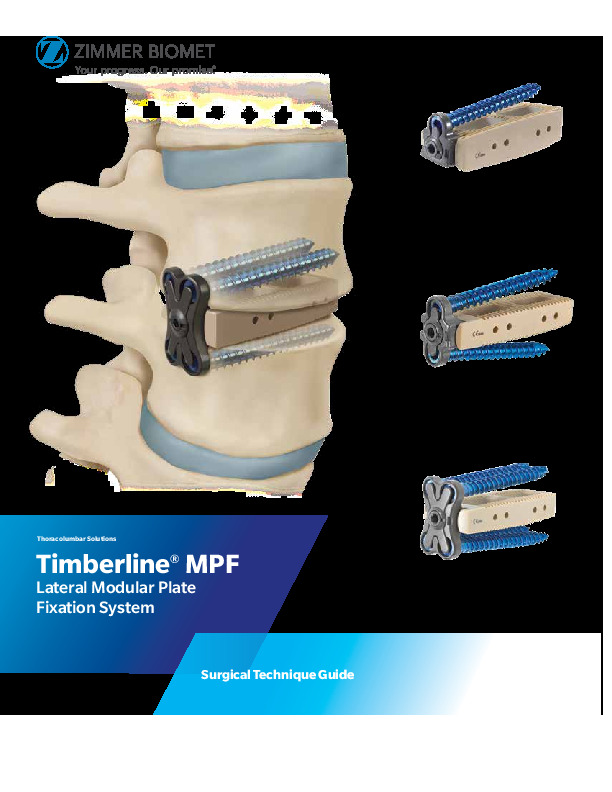

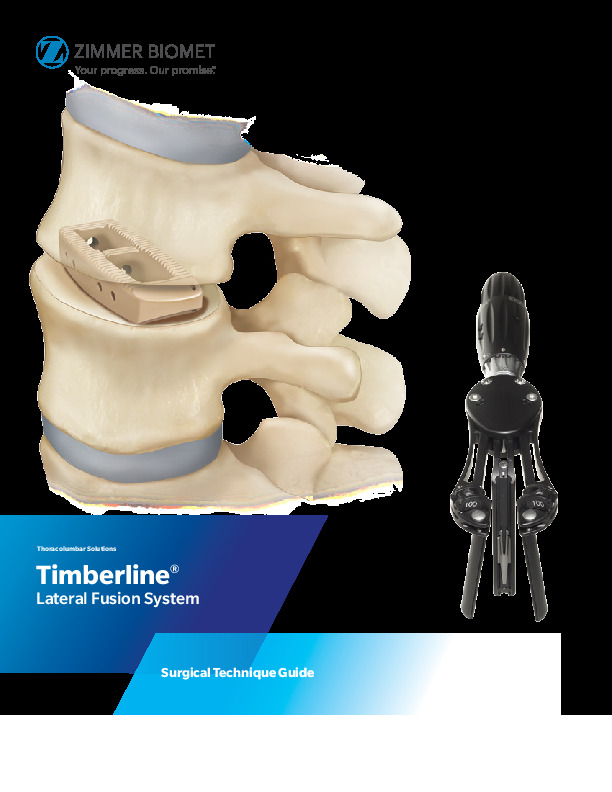

Product Brochures and Guides
