Cortina PEEK & Porous Titanium PLIF/TLIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Posterior/Straight (PLIF) Cage

Configuration: Cage Alone

By Material: PEEK Solid block , Titanium (Solid)

By Location/Approach: Posterior Lumbar

By Procedure Type: PLIF

By System Type: Degenerative , Deformity

DESCRIPTION

The Cortina interbody device by NeuroStructures/NuGen is available in radiolucent PEEK or porous titanium and intended for posterior lumbar approach. Superior and inferior surfaces are designed to optimize endplate contact to resist subsidence, and the tooth pattern created to prevent implant migration. The implants come in multiple lordotic and non-lordotic footprints to accommodate varying patient anatomy, with large graft space and trabecular structure to promote multi-axial new bone ingrowth.

Features:


  • Radiolucent PEEK or Porous 3D printed titanium
  • Large graft space and trabecular structure promotes bone ingrowth
  • Superior and inferior tooth pattern prevents migration
  • Optimized endplate contact to resist subsidence
  • Non-lordotic and lordotic options
  • PLIF/Oblique TLIF

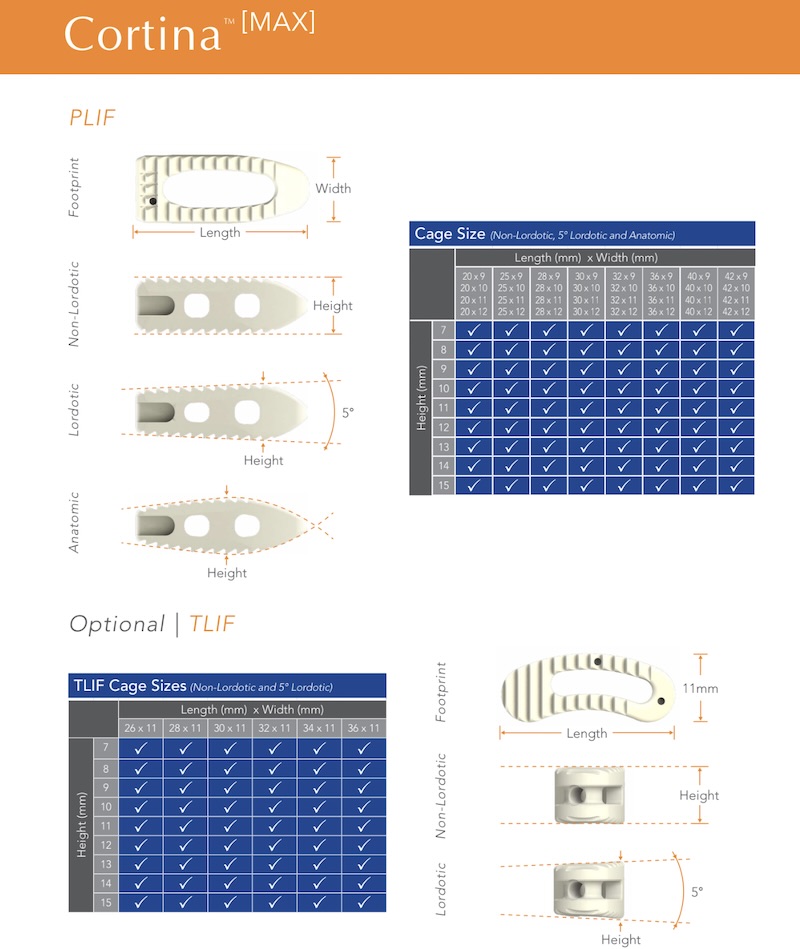

    • Width options:
      • 9mm
      • 10mm
      • 11mm
      • 12mm
    • Length options:
      • 20mm
      • 25mm
      • 28mm
      • 30mm
      • 32mm
      • 36mm
      • 40mm
      • 42mm
    • Lordosis options:
      • 0 degree
      • 5 degree
      • Anatomic
    • Height options:
      • 7-15mm
  • TLIF Curved
    • Footprint options
      • 11x26mm
      • 11x28mm
      • 11x32mm
      • 11x34mm
      • 11x36mm
    • Lordosis options:
      • 0 degree parallel
      • 5 degree
    • Height options:
      • 7-15mm

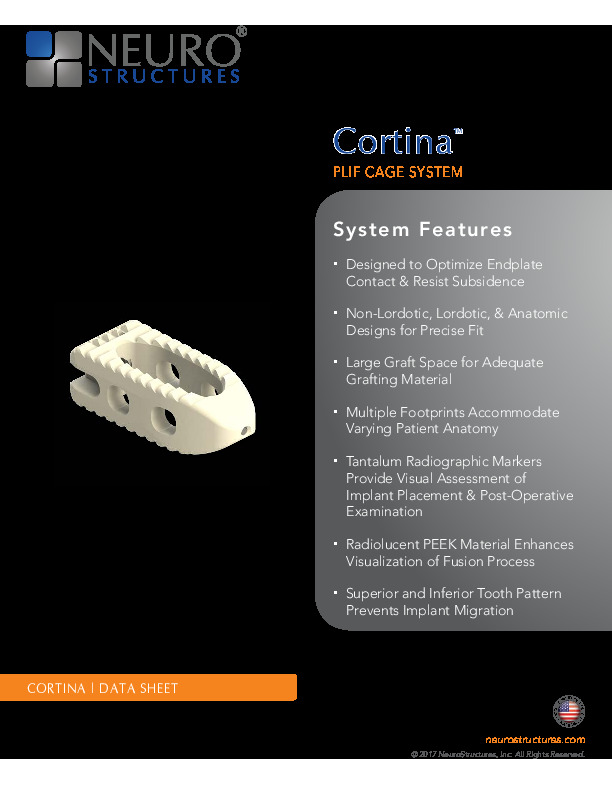

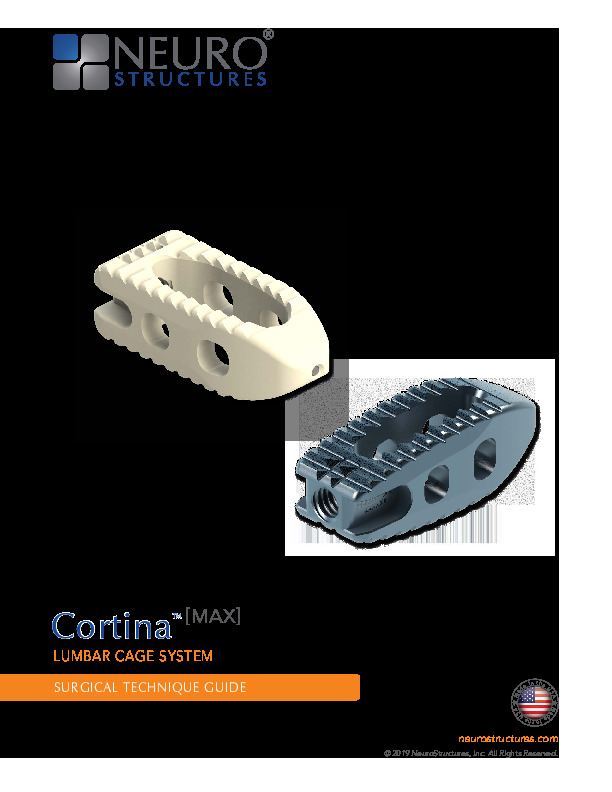

Product Brochures and Guides

VIDEOS

No Videos
