Helix ACP Anterior Cervical Plate

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity

DESCRIPTION

Helix ACP is an anterior cervical plate system created to provide a low-profile bendable plate available in multiple levels and lengths.

Multiple features of this plate:

  • 1 mm leading profile to decrease the “step” on the leading edge of the plate
  • narrow plate to reduce retraction during placement (less than 16mm at widest point)

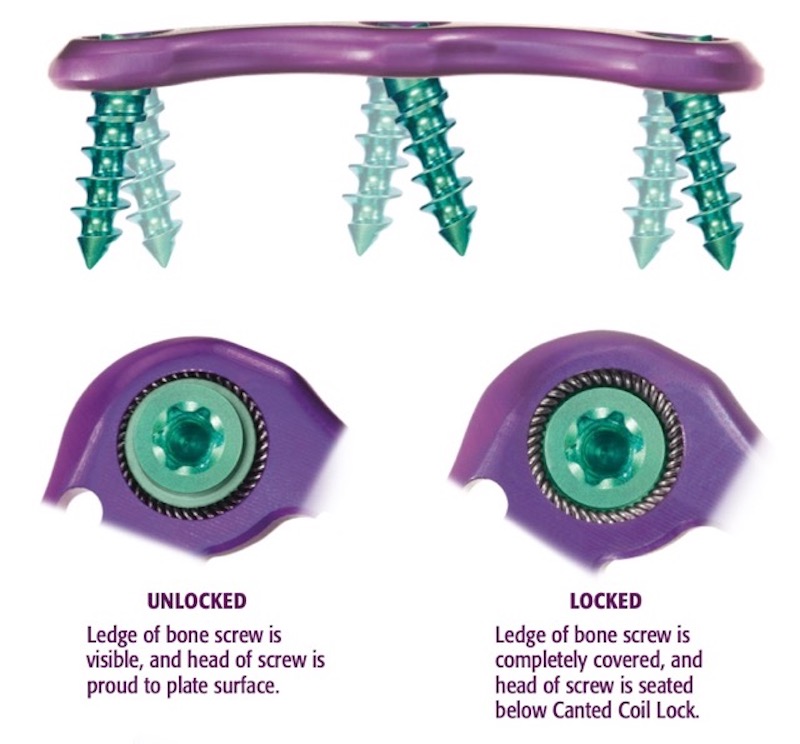

  • canted coil lock (CCL) mechanism to attach screws to the plate while still allowing the plate to be securely lagged to the bone for a tight fit

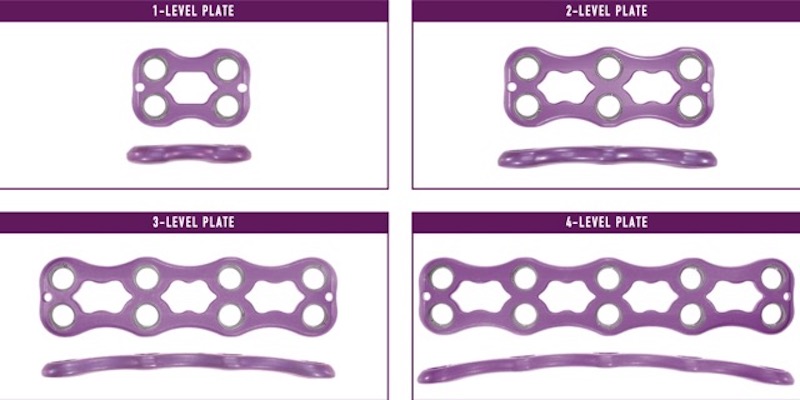

  • Levels and Lengths:
    • 1-level = 20-34 mm
    • 2-level = 36-54 mm
    • 3-level = 56-68 mm
    • 4-level = 70-90 mm
