VyPlate ACP Anterior Cervical Plate

COMPANY: VySpine

MANUFACTURER INFO:VyPlate ACP Anterior Cervical Plate

SPECS

Product Category: Spinal Implants

By Product Type: Plates

Plate Location: Cervical

Plate Approach: Anterior Plate

Plate Configuration: Stand-Alone Plate

Plate Dynamics: Static Plate

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity

By Material: Titanium (Solid)

DESCRIPTION



VyPlate by VySpine is an anterior cervical plate with intuitive locking, torx drive, and large graft windows, indicated for stabilization of the anterior cervical spine. Plates and screws come in various sizes to provide optimal patient specific fit, and large graft windows enable visualization of the underlying anatomy during insertion. The intuitive integrated locking mechanism utilizes the same driver as the bone screws, and the plate/screw interface features a robust torx drive to reduce the chance of stripping. Plates come pre-lordosed, but lordosis can customized with the plate bender, bending the plate within the designated bending zones.

Features:

  • Intuitive integrated locking mechanism
  • Locking mechanism utilizes same driver as the bone screws
  • Torx drive to reduce stripping
  • Large graft viewing windows
  • Plates:
    • 1 level = 12-26 mm in 2mm increments
    • 2 level = 24-52 mm in 4mm increments
    • 3 level = 36-78 mm in 6mm increments
    • 4 level = 48-96 mm in 8mm increments
    • 5 level = 60-120 mm in 10mm increments
  • Screws: self-tapping, self-drilling variable and fixed angle standard and rescue thread
  • 4.0-4.5 mm diameter 12-18 mm in 2mm increments

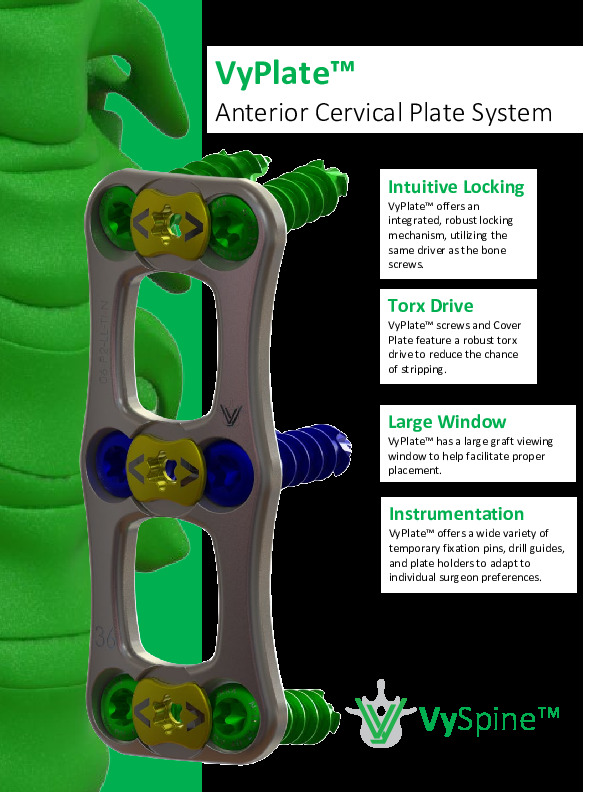

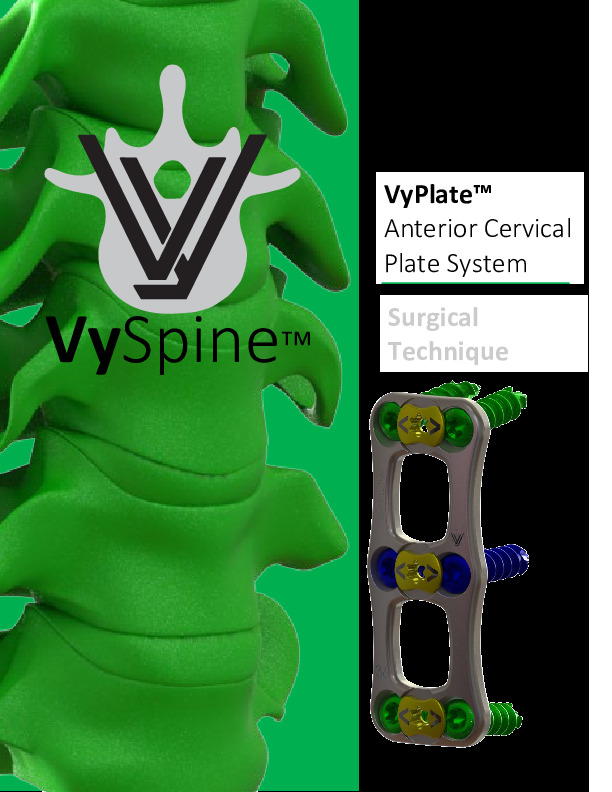

Product Brochures and Guides

VIDEOS

No Videos

REVIEWS

No one has reviewed this product yet. Be the first to review it.
