Monaco Expandable Titanium 3D/Solid PLIF/TLIF Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Anterior Only Expansion , Parallel expansion (Fixed Lordosis)

Cage Approach: Posterior/Straight (PLIF) Cage,Oblique Cages

Configuration: Cage Alone

By Material: Titanium (Solid) , 3D Printed Titanium

By Location/Approach: Posterior Lumbar

By Procedure Type: TLIF , PLIF

By System Type: Degenerative , Deformity

DESCRIPTION

The Monaco Expandable Spacer System by NeuroStructures/NuGen is an expandable titanium alloy PLIF/TLIF interbody spacer with 3D printed textured titanium endplates to promote immediate mechanical fixation and development of bony ingrowth. It was created to minimize neural retraction and insertion force, while providing controlled parallel or angular expansion to restore foraminal and disc height.

Features:

  • 3D printed textured titanium endplates

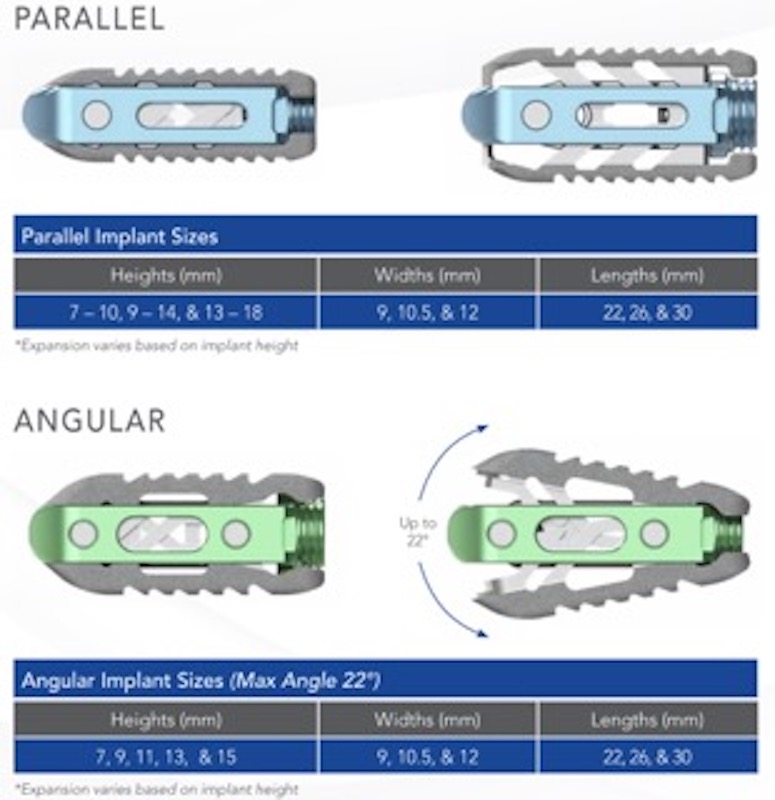

  • parallel and angular expansion
  • Footprints:
    • Widths = 9, 10.5, and 12 mm
    • Lengths = 22, 26, and 30 mm
  • Heights:
    • Parallel = 7-10, 9-14, and 13-18 mm
    • Angular = 7, 9, 11, 13, and 15 mm
  • Lordosis:
    • 0-22 degrees
    • expansion varies based on implant height
