PS Medical StrataMR II 3T Compatible Adjustable Shunt Valve

SPECS

Product Category: Cranial Products/CSF Management/CSF Shunts

Shunt System Type: Ventriculoperitoneal (VP) Shunts

Valve Type: Programmable/ Adjustable Valves

MRI Compatibility (Locking): MRI 1.5T Compatible , MRI 3T Compatible

Antisiphon Properties: Membrane Antisiphon

DESCRIPTION

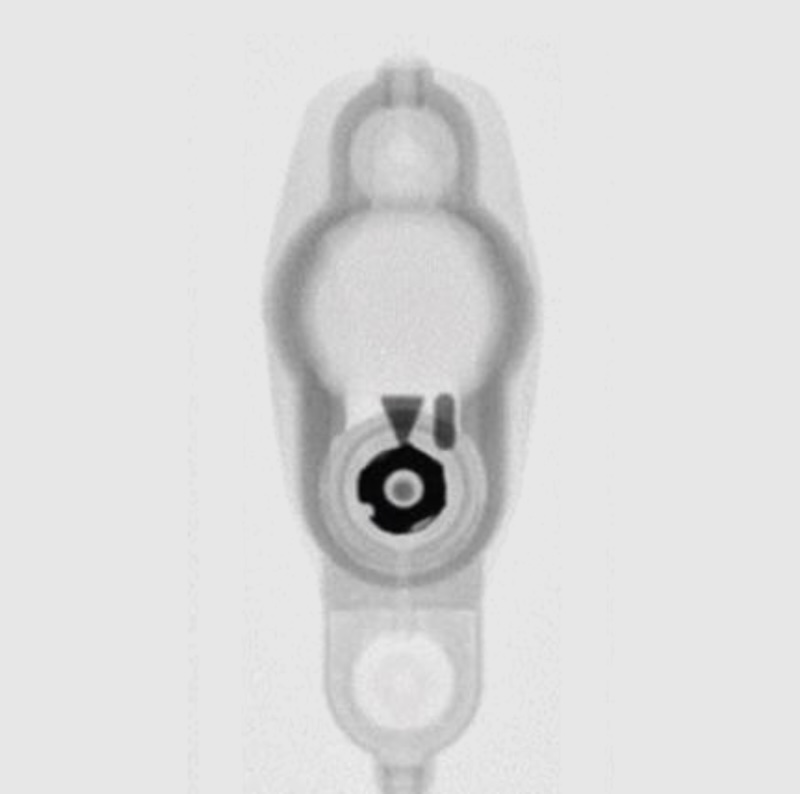

The StrataMR II valve by Medtronic PS Medical is an MRI compatible hydrocephalus shunt valve up to 3T that utilizes the same reliable adjustbale performace levels that have been used in the Strata NSC and Strata II valves. The valve utilizes a ball-in-cone that has a locking rotating adjustment key to apply pressure to the ball thereby increasing or decreasing flow resistance. It features an antisiphone Delta Chamber and comes in 2 sizes, regular and small.

Features:

  • MRI compatible to 3T

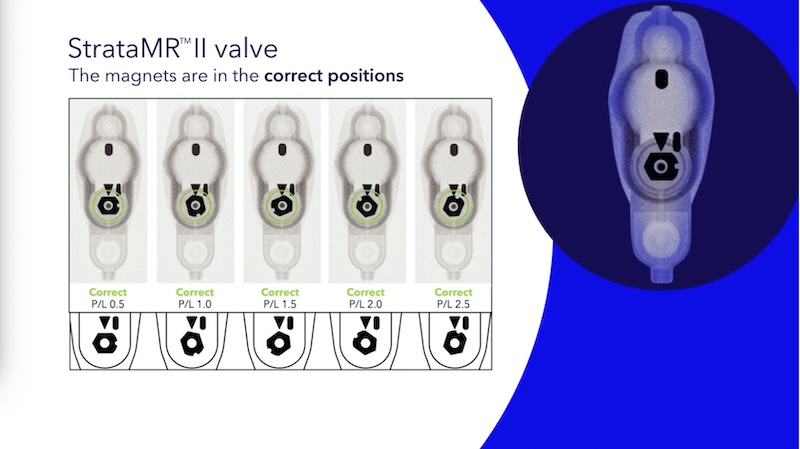

  • Adjustable flow control between 5 pressure settings

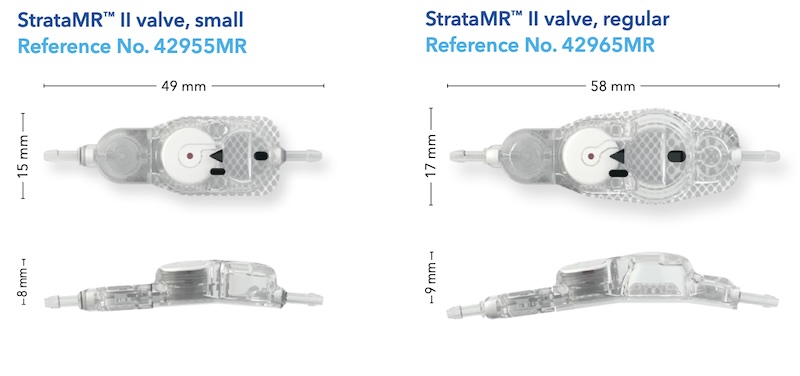

  • 2 size options:
    • Small: 15x49mm
    • Regular: 17x58mm
  • Antisiphon Delta chamber

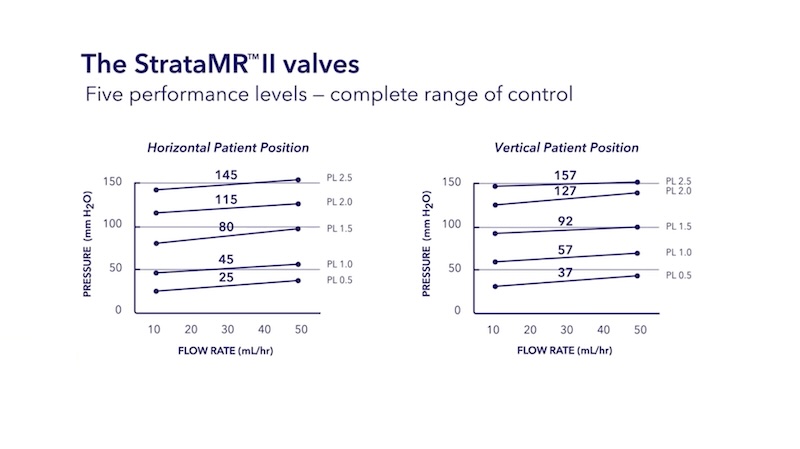

  • Performance levels: (Average pressure)
    • P/L 0.5:
      • Horizontal: 25mmH2O
      • Vertical: 37mmH2O
    • P/L 1.0:
      • Hotizontal:45mmH2O
      • Vertical:57mmH2O
    • P/L 1.5:
      • Hotizontal:80mmH2O
      • Vertical: 90mmH2O
    • P/L 2.0:
      • Hotizontal:115 mmH2O
      • Vertical: 127mmH2O
    • P/L 2.5:
      • Hotizontal: 145mmH2O
      • Vertical: 157mmH2O
