El Capitan X ALIF Expandable Stand Alone Interbody Spacer

COMPANY: Astura Medical

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device , Plates

Cage Type: Interbody Cage/Lumbar

Expansion: Expandable

Expansion Type/Lordosis: Anterior Only Expansion , Parallel expansion (Fixed Lordosis) , Parallel Expansion (Progressive Lordosis) , Differential Expansion (Ant vs Post)

Cage Approach: Anterior

Configuration: Cage Alone , 0-Profile (Integrated screws) , Low profile plate attached

By Material: Titanium (Solid) , Titanium etched

Cage Material: Titanium Solid (etched surface)

Plate Location: Thoracic/lumbar

Plate Approach: Anterior Plate

Plate Configuration: Minimal Profile

Plate Dynamics: Static Plate

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Deformity , MIS/Perc

DESCRIPTION

El Capitan X is an novel expandable anterior lumbar interbody fusion system with a modular base that allows for either zero-profile integrated screw fixation or anterior plate fixation with 3 or 4 screws options

Features:


  • Acid etched titanium endplates
  • Expandable up to 7.5mm
  • Independent expansion height and lordosis to optimize fitment to endplates.
  • Option for plated or non-plated
  • Options of standard lordosis or hyperlordotic options

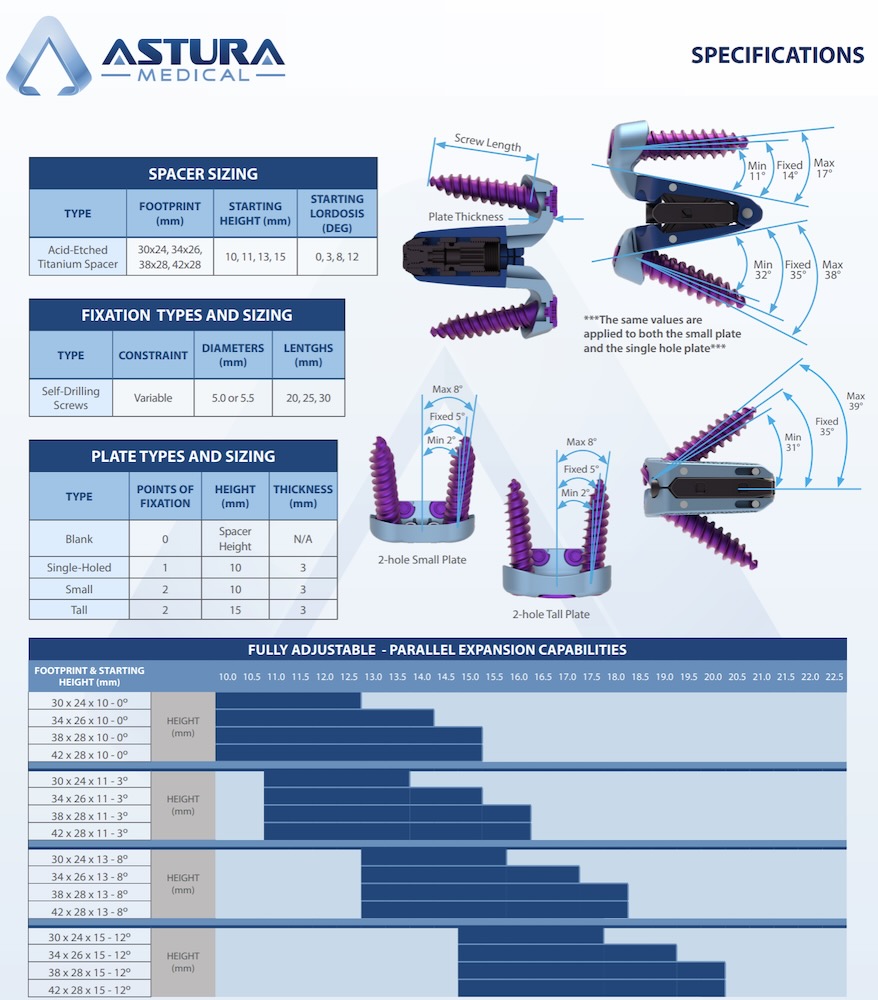

  • Footprint options:
    • 30x24mm
    • 34x26mm
    • 38x28mm
    • 42x28mm
  • Height options:
    • 10-15mm starting heights
  • Lordosis options:
    • Variable 0 degrees to 30 degrees
    • Starting lordosis: 0, 3, 8, 12 degrees
