Pillar SA & SA PTC Standalone ALIF Titanium Coated PEEK Spacer

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Lumbar

Expansion: Static

Cage Approach: Anterior

Configuration: 0-Profile (Integrated screws)

By Material: PEEK Solid block , Titanium Coated PEEK , 3D Printed Titanium

By Location/Approach: Anterior Lumbar

By Procedure Type: ALIF

By System Type: Degenerative , Motion Preservation

DESCRIPTION

The PILLAR SA is a stand alone ALIF spacer for use in the anterior lumbar interbody fusion procedure. It comes in two forms: Radiolucent PEEK and a Porous titanium endplate coated PEEK. Both feature a 4 hole fixation with a screw cover plate.

Features:

  • PILLAR SA:
    • Radiolucent PEEK
    • 4 screw fixation
    • Ovoid shape for better anatomical fitment
    • Large central graft window
    • Screw cover plate
    • Footprint options: WxD
      • 33x28mm
      • 33x32mm
      • 37x28mm
      • 37x32mm
      • 40x28mm
      • 40x32mm
      • 43x32mm
    • Height options: 12.5-20mm
    • Lordosis options: 7, 12 degree
  • PILLAR SA PTC:

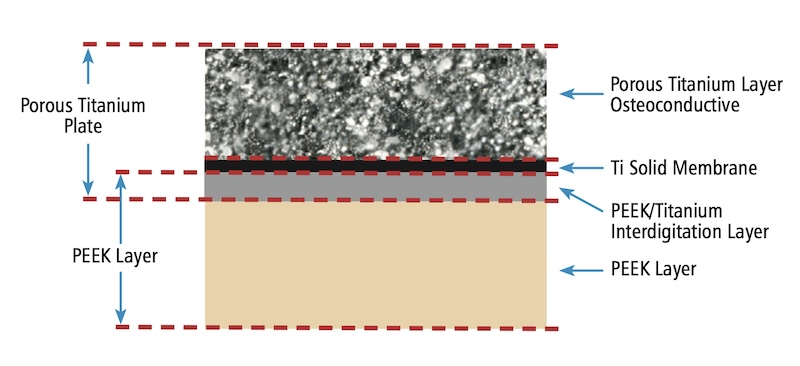

    • Porous Titanium Composite surface coating which interdigitates the 3D printed surface into the PEEK allowing bony in-growth to the surface endplate of the PEEK graft.
      • Footprint options:
        • 33x28mm
        • 37x28mm
        • 40x28mm
      • Height options: 12-18mm
      • Lordosis options: 7, 12 degree

Product Brochures and Guides

Product brochures and guides are available to verified surgeons. Log in or register to access.
