Prodisc L Lumbar Artificial Disc Replacement

SPECS

By Product Type: Artificial Disc (TDR)

By Procedure Type: Lumbar Disc Replacement

Insertion Approach: Anterior approach

TDR Characteristics: Keel-based , 2 level approval

Disc Articulation Characteristics: Metal-on-Poly

By Location/Approach: Anterior Lumbar

By System Type: Degenerative , Motion Preservation

By Material: Titanium Plasma Sprayed , Cobalt Chrome (CoCr)

Product Category: Spinal Implants

DESCRIPTION

The Prodisc L Lumbar disc arthroplasty by Centinel Spine is an anterior lumbar disc replacement with a central keel. The disc has 12 different anatomical combinations to optimize patient anatomy. The endplates are composed of CoCrMo (Cobalt-28Chrome-6Molybdenum) with plasma sprayed titanium coating. The inlay is UHMWPE (ultra high molecular weight polyethylene.

Features:



  • Anatomic endplates: with either 6 degree or 11 degree lordotic options.
  • Plasma sprayed titanium endplates for optimal bony ingrowth.
  • Ultra-high molecular weight polyethylene UHMWPE inlay.

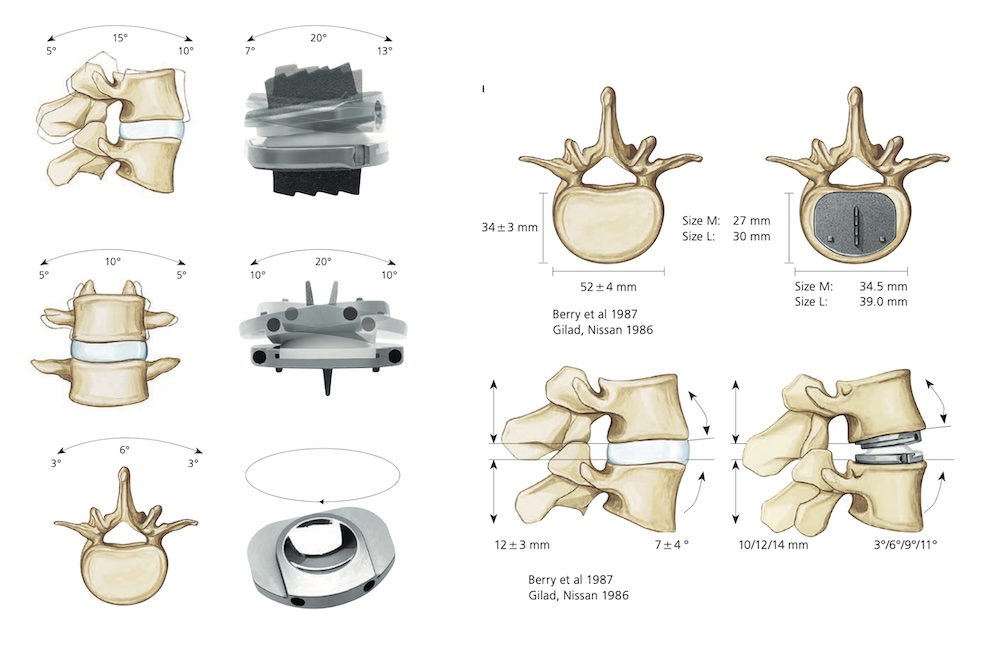

  • Range of Motion:
    • 20 degrees Flexion/Extension
    • 20 degree lateral bending
    • Unconstrained rotation
  • Secure fixation with central keel
  • Sizing options:
    • Footprint options:
      • Medium: 27x35mm
      • Large: 30x39mm
    • Endplate Lordosis options:
      • Superior endplate:
        • 3 degree
        • 6 degree
        • 11 degree
      • Inferior endplate:
        • 0 degree
        • 3 degree
        • 8 degree
    • Poly Inlay options:
      • 10mm
      • 12mm
      • 14mm
  • Composition:
    • Endplates: CoCrMo (Cobalt-28Chrome-6Molybdenum)
    • Inlay: UHMWPE
