PS Medical Flow Control Delta Valve

COMPANY: Medtronic

SPECS

Product Category: Cranial Products/CSF Management/CSF Shunts

Shunt System Type: Ventriculoperitoneal (VP) Shunts

Valve Type: Fixed Pressure Valves , Flow Regulated Valves , Antisiphon Valves

MRI Compatibility (Locking): MRI Permissible (Non-magnetic) , MRI 1.5T Compatible , MRI 3T Compatible

Antisiphon Properties: Membrane Antisiphon

DESCRIPTION

The PS Medical Delta CSF Shunt valves by Medtronic combine the Flow regulation mechanism found in the CSF-Flow control valves with the addition of the Delta Chamber, a siphon control device that controls the negative hydrostatic effect of siphoning effect.

Features:

  • Fixed pressure range option using silicone membrane
  •  Antisiphon Delta Chamber
  • Must be implanted above level of ventricle
  • Non-metallic, MRI permissable without risk
  • Radiopaque markings on valve visible on Xray
  • 2 size options
    • Regular
    • Small

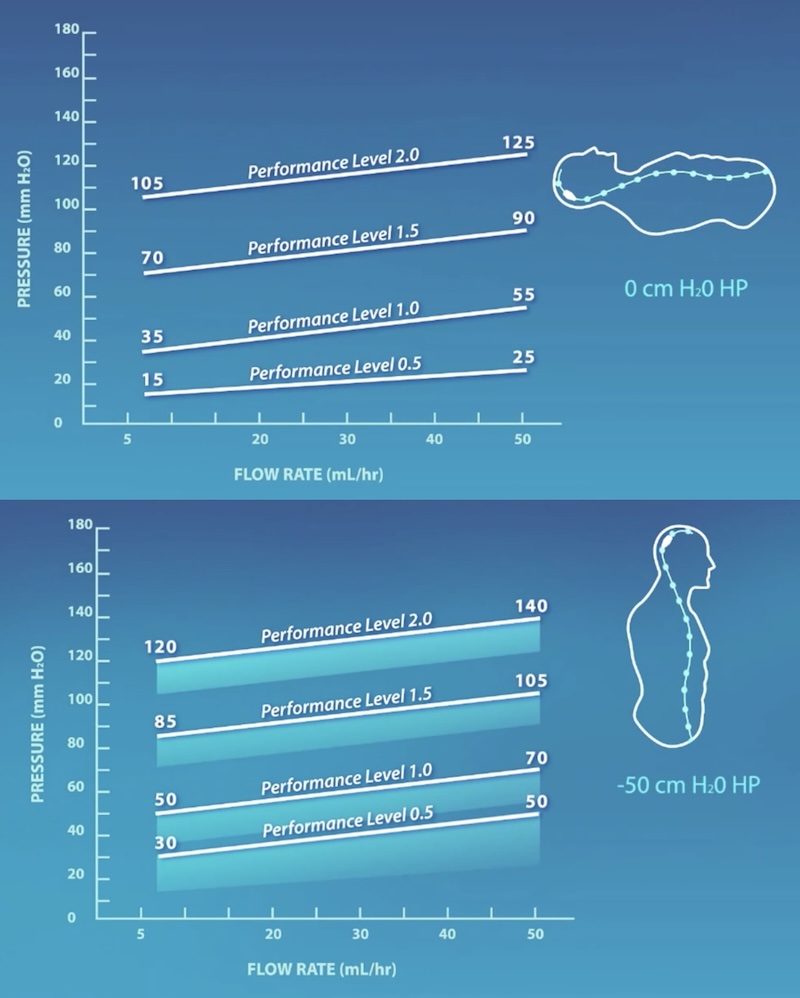

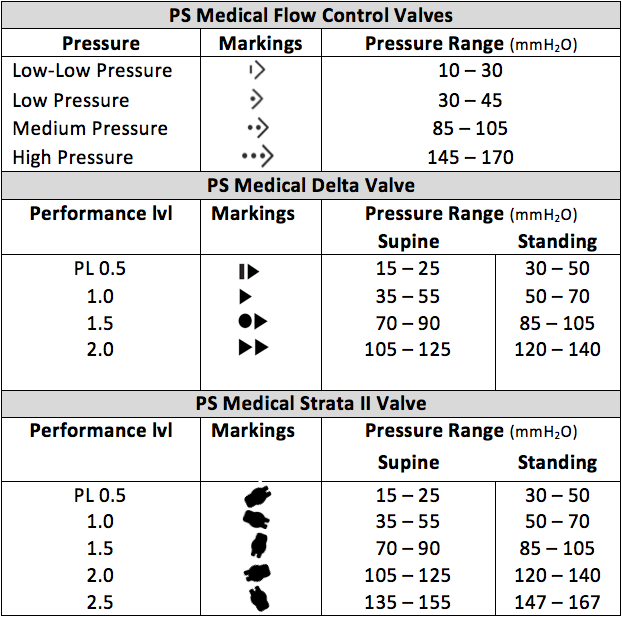

  • 4 pressure range options:
    • Performance level 0.5:
      • Supine: 15-25 mmH2O
      • Standing: 30-50mmH2O
    • Performance level 1.0:
      • Supine: 35-55mmH2O
      • Standing: 50-70mmH2O
    • Performance level 1.5:
      • Supine: 70-90mmH2O
      • Standing: 85-105mmH2O
    • Performance level 2.0:
      • Supine: 105-125mmH2O
      • Standing: 120-140mmH2O
