PS Medical Flow Control CSF Shunt Valve

COMPANY: Medtronic

SPECS

Product Category: Cranial Products/CSF Management/CSF Shunts

Shunt System Type: Ventriculoperitoneal (VP) Shunts , Pediatric Specific Valves

Valve Type: Fixed Pressure Valves , Flow Regulated Valves , Antisiphon Valves

MRI Compatibility (Locking): MRI Permissible (Non-magnetic) , MRI 1.5T Compatible , MRI 3T Compatible

Antisiphon Properties: Membrane Antisiphon

DESCRIPTION

The PS Medical Flow Control valve family from Medtronic is a group of one-way CSF diversion valves that feature a silicone membrane to regulate CSF flow. Each of the valve configurations comes in one of 3 pressure settings, (low, medium, high).

Features:

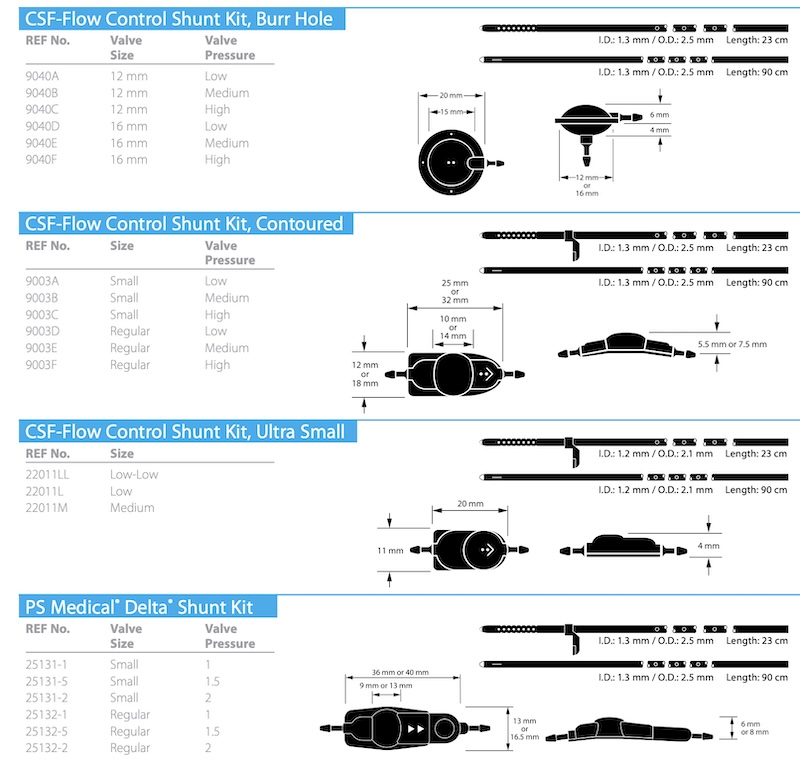

  • Mutliple valve configuration optiopns:
    • Regular contoured valve
    • Small contour valve
    • Ultra small Valve
    • Burr hole valve
    • Button valve
  • MRI compatible as there are no metal parts
  • No antisiphon, but is available with a delta chamber anti-siphon
  • Radiopaque markings on valve visible on Xray

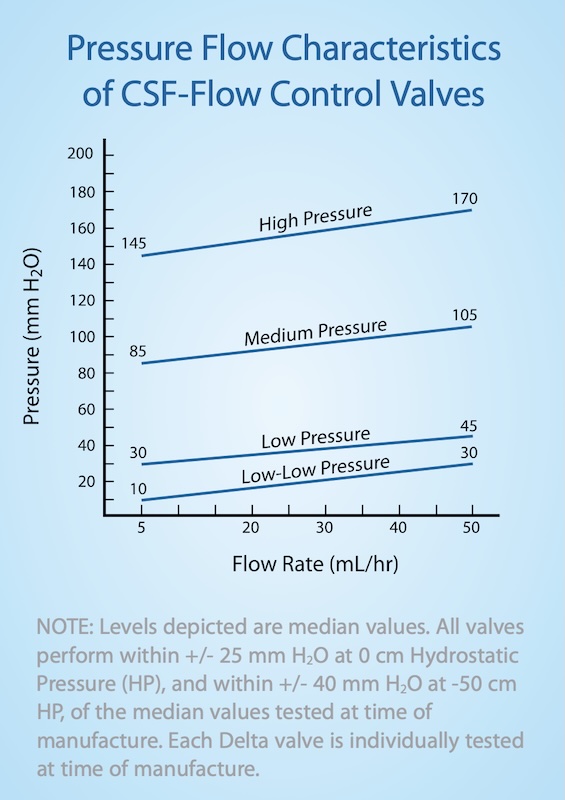

    • 3 standar pressure settings for each valve configurations (low-low pressure available)
    • Low-low: 10-30 mmH2O
    • Low: 30-45 mmH2O
    • Medium: 85-105 mmH2O
    • High: 145-170 mmH2O
