PS Medical Strata II Adjustable Hydrocephalus Valve

COMPANY: Medtronic

SPECS

Product Category: Cranial Products/CSF Management/CSF Shunts

Shunt System Type: Ventriculoperitoneal (VP) Shunts

Valve Type: Programmable/ Adjustable Valves , Antisiphon Valves

MRI Compatibility (Locking): Non MRI Compatible (Non-Locking)

DESCRIPTION

The PS Medical Strata II Valve by Medtronic is a non-locking non-MRI compatible adjustable shunt valves used in the treatment of hydrocephalus. The Strata II system comes with a distal antisiphon Delta Chamber. The Strata adjustable valve is also available without the Delta chamber, known as the Strata NSC (No Siphon Guard).

Features:

  • Ball-in-cone adjustable flow control
  • Non-locking, not MRI compatible. Requires adjustment after MRI
  • (MRI compatible version called StrataMR II available with resistance to 3T)
  • 2 size options:
    • Small
    • Regular

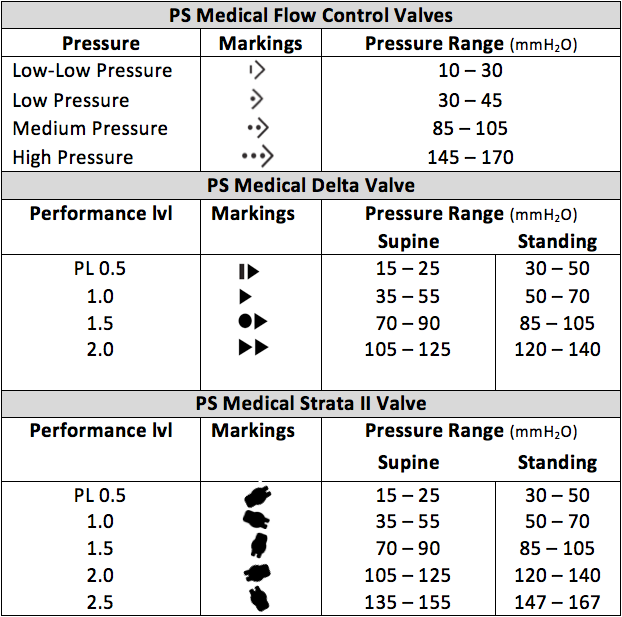

  • 5 pressure settings: (Performance level P/L)
    • PL 0.5:
      • Supine: 15-25mmH2O
      • Standing: 30-50mmH2O
    • PL 1.0:
      • Supine 35-55mmH2O
      • Standing: 50-70mmH2O
    • PL1.5:
      • Supine: 70-90mmH2O
      • Standing: 85-105mmH2O
    • PL2.0:
      • Supine: 105-125mmH2O
      • Standing: 120-140mmH2O
    • PL2.5:
      • Supine: 135-155mmH2O
      • Standing: 147-167mmH2O
