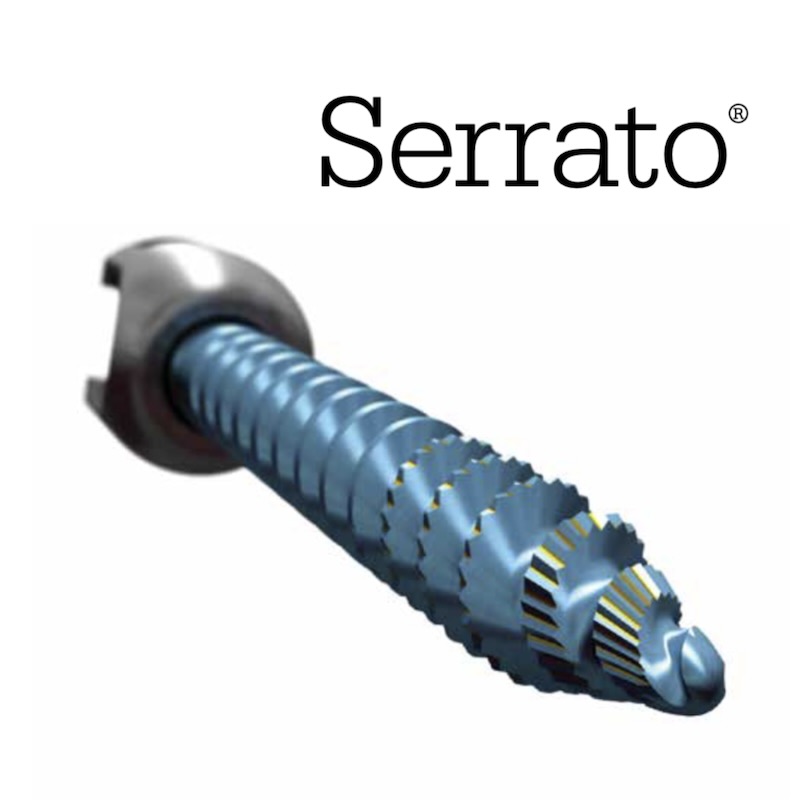

Serrato Thoraco-Lumbar Pedicle Screw System

COMPANY: Stryker-K2M

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar)

Features: K-Wire Cannulated , Polyaxial Head , Favored Angle Head

Screw Materials: Titanium

By Location/Approach: Posterior Thoracic , Posterior Lumbar

By Procedure Type: Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative , Deformity

By Material: Titanium (Solid)

DESCRIPTION

The Stryker Serrato Pedicle screw is a sub-set of the Xia 3 system and is compatible with Xia 3 and ES2 systems. It features a serrated tip for increased grip in the bone. IT is a non-modular system and comes as a polyaxial head both true tip and cannulated, Favored angle (biased) screw, and reduction heads.

Features:


  • Screw options:
    • True tip
    • Cannulated
    • Favored angle
    • Reduction heads
  • Cortical/cancellous threads
  • Accepts 5.5 and 6.0 rod systems
  • Works with Xia 3 and ES2 systems

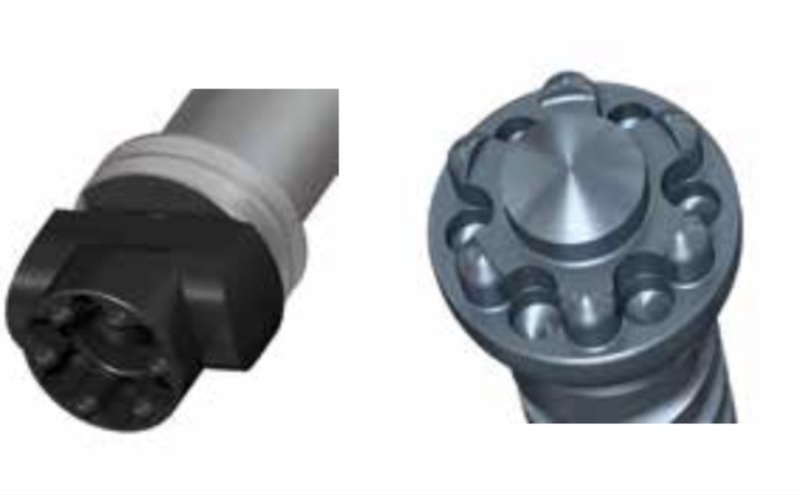

  • 6 point star screw driver interface

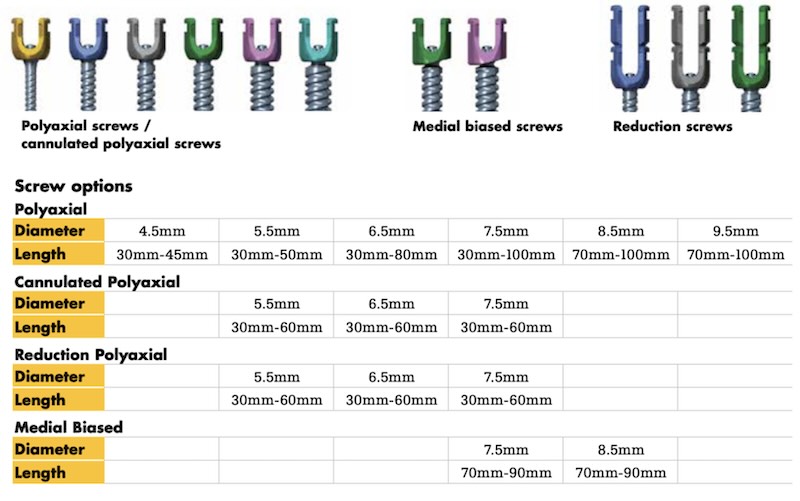

  • Polyaxial Screw sizes
    • Polyaixial screw diameters: 4.5, 5.5, 6.5, 7.5, 8.5, 9.5mm
    • Polyaxial length: 30-100mm
  • Cannulated Screw sizes
    • Cannulated screw diameters: 5.5, 6.5, 7.5mm
    • Cannulated screw lengths: 30-60mm
  • Reduction screw sizes
    • Reduction screw diameters: 5.5, 6.5, 7.5mm
    • Reduction screw lengths: 30-60mm
  • Medial Biased screws
    • Biased screw diameters: 7.5, 7.5mm
    • Biased screw lengths: 70-90mm
