Olympic Open Thoracolumbar Pedicle Screw Fixation

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar) , Iliac Bolts (S2AI)

Features: K-Wire Cannulated , High-Angulation Screw , Polyaxial Head , Fixed Head , Medial Cortical Screw , Self Tapping , Extended Reduction Head Tabs

Screw Materials: Titanium

By Location/Approach: Posterior Thoracic , Posterior Lumbar

By Procedure Type: TLIF , PLIF , Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative

By Material: Titanium (Solid)

DESCRIPTION

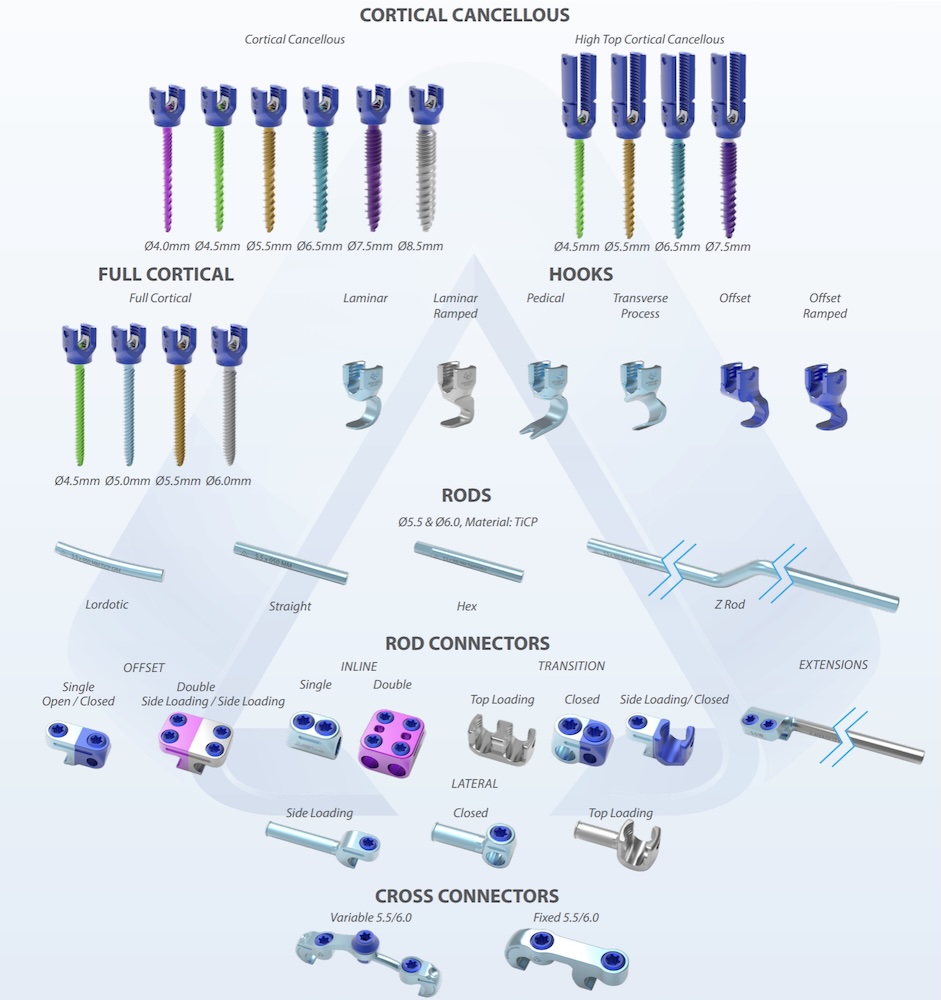

The Olympic Posterior Spinal Fixation System by Astura Medical is an open thoracolumbar pedicle screw based fixation system for use in the thoracic spine to pelvis. The system features a complete array of pedicle screws including standard polyaxial screws, uniplanar screws, cortical-cancellous screws, cortical screws, hooks, rod connectors, side connectors etc.

Features:

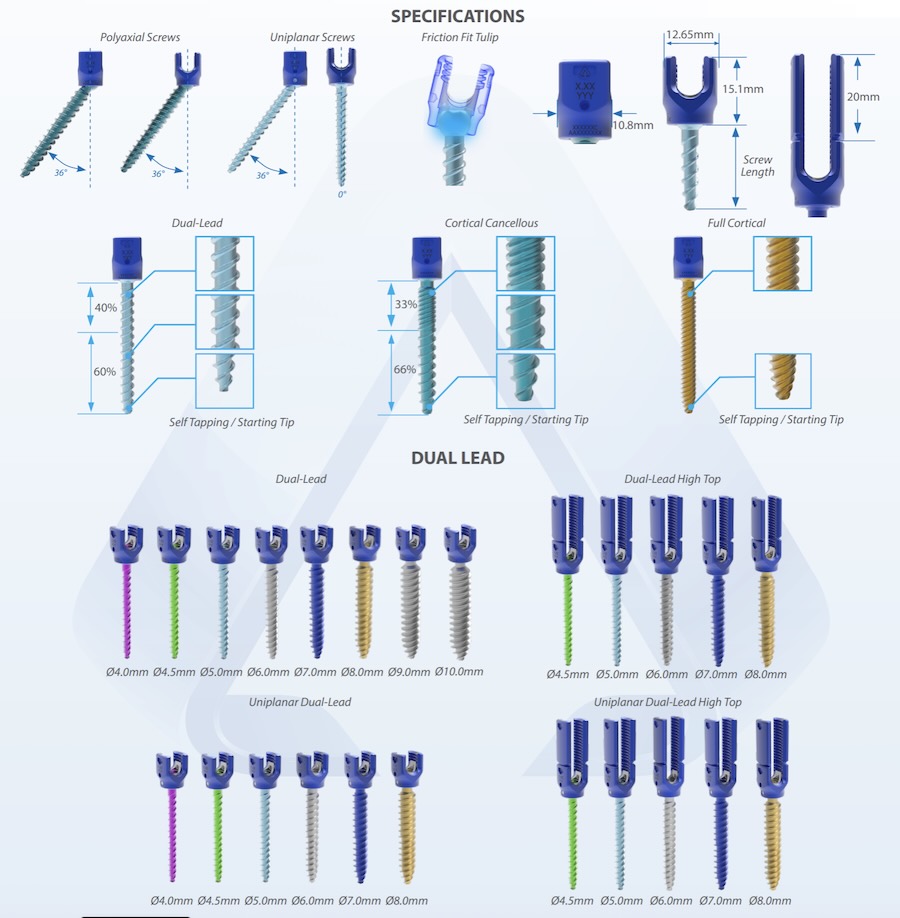

  • Dual lead poly-axial screws:
    • 72 degrees of conical angulation (36 degrees each way)
    • Available with extended reduction heads
    • Available sizes: 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0mm
  • Uniplanar Dual lead: For use in deformity correction
    • 36 degrees of angulation in one plane
    • Available with standard tulip or extended reduction head
    • Available sizes: 4.0, 4.5, 5.0, 6.0, 7.0, 8.0mm
  • Cortical-Cancellous: Useful for added grip in both cortical and cancellous bone
    • Available standard tulip or extended reduction head
    • Available sizes: 4.0, 4.5, 5.5, 6.5, 7.5, 8.5mm
  • Cortical screw:
    • Available sizes 4.5, 5.0, 5.5, 6.0mm

Product Brochures and Guides
